Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CQDE20
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 6000-7500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
2T Electric Reach Stacker 48V Seat Type |
Load Capacity: |
3T |
Lift Height: |
3-6m |
Mast Type: |
Triplex Mast |
Battery: |
48V/400Ah |
Service Weight: |
3850 Kgs |
Product Name: |
2T Electric Reach Stacker 48V Seat Type |
Load Capacity: |
3T |
Lift Height: |
3-6m |
Mast Type: |
Triplex Mast |
Battery: |
48V/400Ah |
Service Weight: |
3850 Kgs |

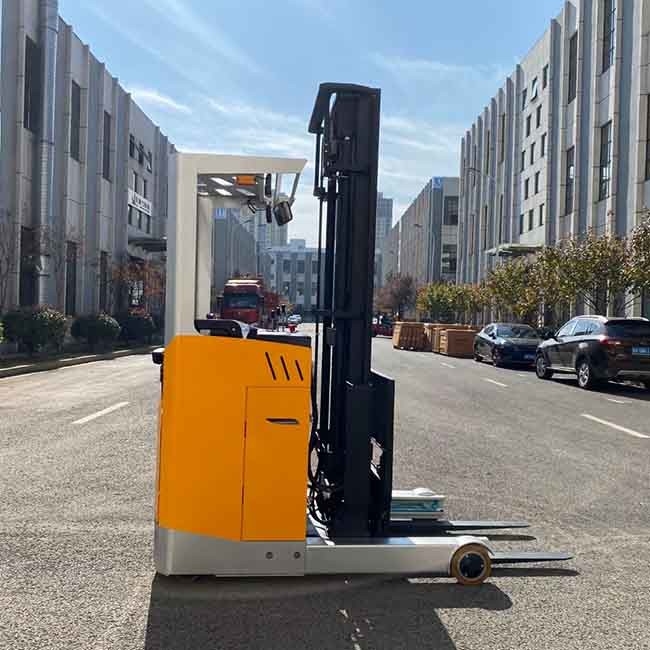

2000kg CQDE20 48V 2T Electric Reach forklift truck seat type triplex 3-9m mast
Main information:
Curtis AC controller
AC lift and drive motor
Lift height 3m to 6m
Lead acid battery 48V/400AH
Seat type
The YEAWEY Lead acid / Lithium battery stand reach truck adopts four columns for cabin to penetrate the frame which is both beautiful and safe.Wide field of vision and driving space along with high elastic shock-absorbing seats provide a unique driving pleasure.
Height limit function
When the fork is lifted to the maximum height, the lifting motor will automatically power off to ensure the safety of lifting
Turning Speed Limit Control
Prevent the forklift from overturning sideways when turning, and ensure the safety.
Motor temperature detection control
Prevent the motor from being damaged due to overheating.
| Item | Model | CQDE20-45S | |
| 1 | Power type | Electric | |
| 2 | Drive mode | Seated | |
| 3 | Load capacity | Q(kg) | 2000 |
| 4 | Load center | C(mm) | 500 |
| 5 | Front overhang | X(mm) | 183 |
| 6 | Wheel base | Y(mm) | 1620 |
| 7 | Reach distance | L(mm) | 655 |
| 8 | Self weight with battery | kg | 3050 |
| 9 | Tire type | Pu solid tire | |
| 10 | Front tire size | ∅×w(mm) | 267*114 |
| 11 | Rear tire size | ∅×w(mm) | 382*142 |
| 12 | Track width, front wheels | b10(mm) | 1180 |
| 13 | Height-Mast Lowered | h1(mm) | 2105 |
| 14 | Free Lift Height | h2(mm) | 1500 |
| 15 | Lift Height | h3(mm) | 4500 |
| 16 | The maximum height of the gantry during homework | h4(mm) | 5465 |
| 17 | The height of overhead guards | h14(mm) | 2180 |
| 18 | The height when fork lowered | h13(mm) | 40 |
| 19 | Tilt-Forward/Back | α/β(°) | 3/5 |
| 20 | Overall length(with forks) | l2(mm) | 2477 |
| 21 | Width of the body | b1(mm) | 1270 |
| 22 | Fork Dimensions | s/e/l(mm) | 40/122/1070 |
| 23 | Fork Spread | b5(mm) | 244-705 |
| 24 | Min ground clearance | m2(mm) | 70 |
| 25 | Aisle Width,pallet 1000*1200mm | Ast(mm) | 3007 |
| 26 | Min. Turning radius | Wa(mm) | 1900 |
| 27 | Max travel speed unladen/Load | km/h | 7.8/6.8 |
| 28 | Max. lifting speed unladen/Load | m/s | 0.300/0.235 |
| 29 | Max. lowing speed unladen/Load | m/s | 0.330/0.400 |
| 30 | Grade Ability unladen/Load | ％ | ≤10 |
| 31 | Drive brake | electromagnetic | |
| 32 | Drive motor | kw | 6.5 |
| 33 | Lift motor | kw | 6.3 |
| 34 | Battery type | Lead acid | |
| 35 | Battery capacity | V/Ah | 48V400Ah |
| 36 | Charger | V/A | 48V/50A |
| 37 | DriveControllingType | alternating current | |
| 38 | The noise level in the driver's ear according to EN12053 | dB(A) | 75 |
