Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CPDB20-25
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 6000-7500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
2T Counterbalanced Stacker |
Load Capacity: |
2000 Kgs*600mm |
Lift Height: |
2.50m |
Mast Type: |
Duplex |
Battery: |
24V/220Ah |
Service Weight: |
1890 Kgs |
Product Name: |
2T Counterbalanced Stacker |
Load Capacity: |
2000 Kgs*600mm |
Lift Height: |
2.50m |
Mast Type: |
Duplex |
Battery: |
24V/220Ah |
Service Weight: |
1890 Kgs |
Main information:
Load capacity: 2000kg
Chinese AC controller, AC motors
24V/216Ah lead acid battery
Mast type: duplex mast
Lift height: 2.5m

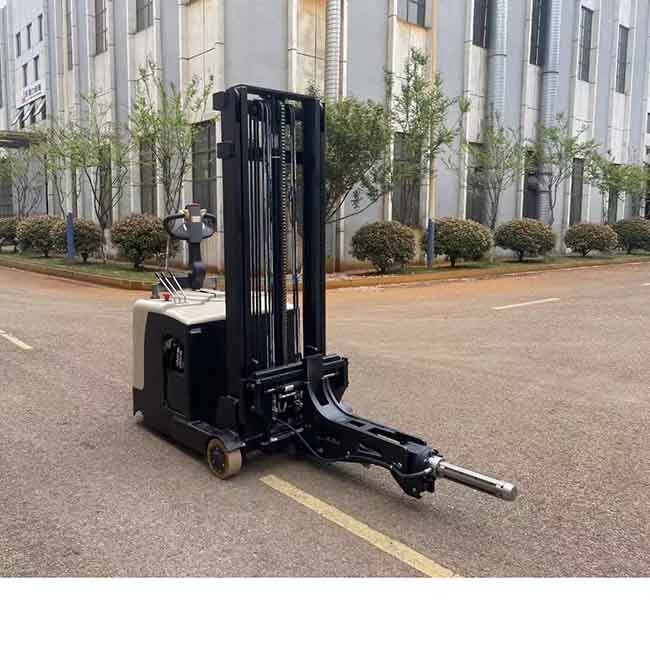

Attachment: air swelling shaft
The rated load capacity of YEAWEY electric counterbalanced stacker is from 1200kg to 2000kg and the maximum lifting height is 4500mm.
The main feature of this series of stacker is the compact structure, which provides you with an excellent operating experience while ensuring a high configuration.
Compact design, fast driving speed, mast forward and backward structure and durable chassis.
Compact structure
The structure of the truck is more compact than the traditional manual and semi-electric products, and is more efficient. It provides customers with a new solution that can replace manual and semi-electric products. More importantly,it can greatly reduce the physical damage to the operators caused by the long-term drag or lifting and lowering operation comparing to the traditional manual products.
Built-in high-energy sealed battery, Long-term use without maintenance, you don't need to add water during the period of life.
| Item | Model | CPDB20-25 | |
| 1 | Power type | Electric | |
| 2 | Drive mode | Standing Type | |
| 3 | Load capacity | Q(kg) | 2000 |
| 4 | Load center | C(mm) | 500 |
| 5 | Front overhang | X(mm) | 129 |
| 6 | Wheel base | Y(mm) | 1635 |
| 7 | Self weight with battery | kg | 1890 |
| 8 | Tire type | Pu solid tire | |
| 9 | Driver specifications | ∅×w(mm) | φ230*75 |
| 10 | Front tire size | ∅×w(mm) | φ210*85 |
| 11 | Rear tire size | ∅×w(mm) | φ150*50 |
| 12 | Track width, front wheels | b10(mm) | 898 |
| 13 | Track width, rear wheels | b11(mm) | 736 |
| 14 | Height-Mast Lowered | h1(mm) | 1845 |
| 15 | Lift Height | h3(mm) | 2500 |
| 16 | The maximum height of the gantry during homework | h4(mm) | 3470 |
| 17 | Length of body | l2(mm) | 2057 |
| 18 | Overall length | L1(mm) | 3134 |
| 19 | Width of body | b1(mm) | 983 |
| 20 | Frork dimensions | s/e/l(mm) | 40/122/1070 |
| 21 | Fork spread | b5(mm) | 210-705 |
| 22 | Min ground clearance | m2(mm) | 70 |
| 23 | Channel width,pallet size 1000*1000mm | Ast(mm) | 3431/3834 |
| 24 | Min. Turning radius(Pedal retraction/unfolding | Wa(mm) | 1952/2355 |
| 25 | Max.walking speed | km/h | 5/4 |
| 26 | Max. lifting speed | m/s | 0.090/0.070 |
| 27 | Max. lowing speed | m/s | 0.096/0.123 |
| 28 | Grade Ability | ％ | 6/4 |
| 29 | Drive brake | Electromagnetic | |
| 30 | Drive motor | kw | 2.5 |
| 31 | Lift motor | kw | 2.2 |
| 32 | Battery type | Lead acid | |
| 33 | Battery capacity | V/Ah | 24V210Ah |
| 34 | Charger | V/A | 24V/30A |
| 35 | DriveControllingType | alternating current | |
| 36 | The noise level in the driver's ear according to EN12053 | dB(A) | 75 |
