Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: QDD120
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 6000-7500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |

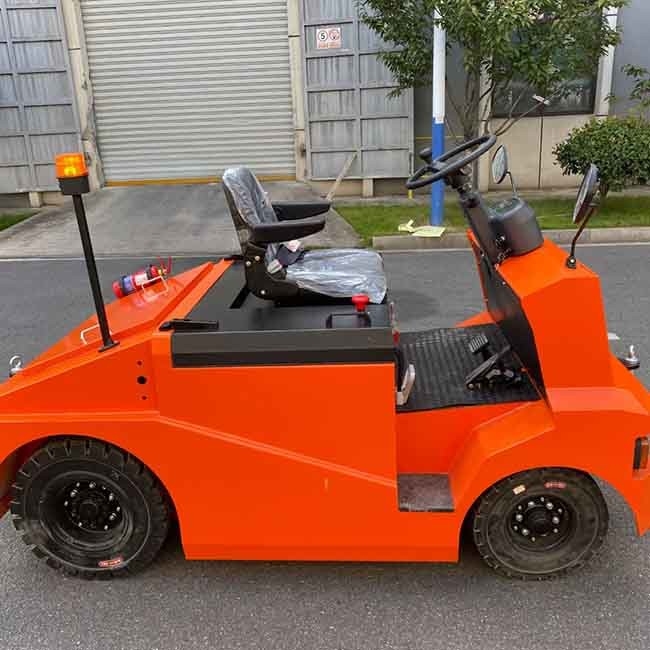

12T Seated Electric Tow Tractor |
Controller: |
ZAPI Imported |
Battery: |
48V/400Ah |
Service Weight: |
2384 Kgs |
Traction Weight: |
12-15Ton |
Color: |
Blue Or Orange |
Product Name: |
12T Seated Electric Tow Tractor |
Controller: |
ZAPI Imported |
Battery: |
48V/400Ah |
Service Weight: |
2384 Kgs |
Traction Weight: |
12-15Ton |
Color: |
Blue Or Orange |
Main information:
Curtis controller
AC lift and drive motor
Lead acid or lithium battery
Seating type
YEAWEY Tow tractor usually used for material traction in airports, stations, workshops and warehouses. It also can used as an important transportation tool for baggage traction, regional logistics and workshop circulation.
The truck is designed as compact structure, good maneuverability, and suitable for narrow-area operation. It's powerful, stable and reliable in operation.
Rubber shock absorption are adopted for both front and rear axles, greatly improving the driving experience and effectively reducing the vehicle vibration on the operator.
Advantage:
Safety:
| Item | Model | QDD120 | |
| 1 | Power type | Electric | |
| 2 | Operation mode | Seated type | |
| 3 | Traction weight | kg | 12000 |
| 4 | Tire type (front/ rear) | Rubber | |
| 5 | Front wheel | 5.00-8 | |
| 6 | Rear wheel | 6.50-10 | |
| 7 | Minimum ground clearance of the whole vehicle | mm | 130 |
| 8 | Overall length | mm | 2384 |
| 9 | Wheelbase | mm | 1532 |
| 10 | Overall width | mm | 1100 |
| 11 | Track width (front/ rear) | mm | 920/910 |
| 12 | Turning radius | mm | 2260 |
| 13 | Travel speed (full load/ no load) | km/h | 10/14 |
| 14 | Gradient (full load/ no load) | % | 8/15 |
| 15 | Drive motor power | kw | 8 |
| 16 | Battery voltage/ capacity | v/ah | 48/400 |
| 17 | Service weight (incl. battery) | kg | 1950 |
| 18 | Steering type | Hydraulic steering | |
| 19 | Service brake type | Mechanical/ hydraulic | |
| 20 | Parking brake type | Mechanical |
