Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: QDD40/60/80
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 6000-7500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |

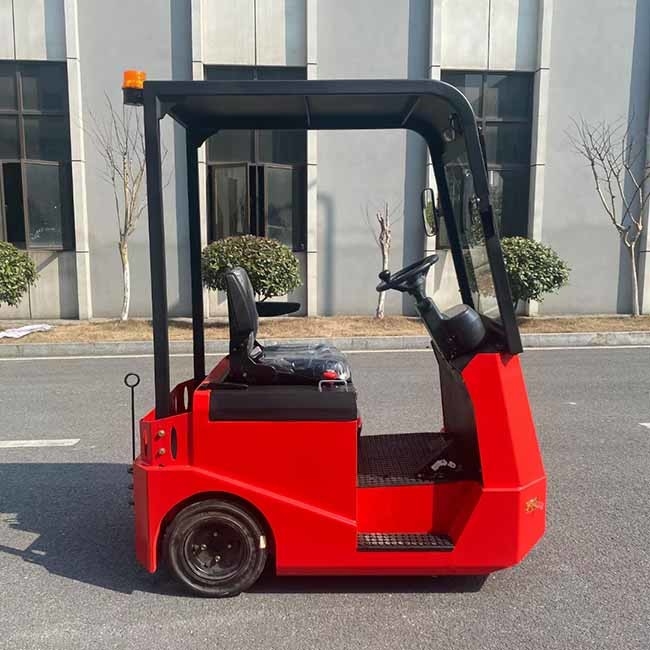

4T Seated Electric Tow Tractor |
Controller: |
ZAPI Brand |
Battery: |
48V/280Ah |
Service Weight: |
210-550kgs |
Traction Weight: |
4-8Ton |
Color: |
Blue Or Yellow |
Product Name: |
4T Seated Electric Tow Tractor |
Controller: |
ZAPI Brand |
Battery: |
48V/280Ah |
Service Weight: |
210-550kgs |
Traction Weight: |
4-8Ton |
Color: |
Blue Or Yellow |
Main information:
Curtis controller
AC lift and drive motor
Lead acid or lithium battery
Seating type
YEAWEY Tow tractor usually used for material traction in airports, stations, workshops and warehouses. It also can used as an important transportation tool for baggage traction, regional logistics and workshop circulation.
The truck is designed as compact structure, good maneuverability, and suitable for narrow-area operation. It's powerful, stable and reliable in operation.
Rubber shock absorption are adopted for both front and rear axles, greatly improving the driving experience and effectively reducing the vehicle vibration on the operator.
Advantage:
Multifunction instrument
Standard multifunction instrument todisplay battery status, travel speed, faultcode and so on.
Blue light
The standard blue light is not only activatedautomatically when the truck is driving forward. but also turns.
Three traction couplers
The reinforced couplers can be set as three heights so as to ensure reliable connectionto various trailers to meet different needs of working conditions.
| Item | Model | QDD40 | QDD60 | |
| 1 | Power type | Electric | Electric | |
| 2 | Operation mode | Seated type | Seated type | |
| 3 | Traction weight | kg | 4000 | 6000 |
| 4 | Tire type front / rear | Rubber solid tire | Rubber solid tire | |
| 5 | Front wheel | 3.50-5 | 3.50-5 | |
| 6 | Rear wheel | 4.00-8 | 4.00-8 | |
| 7 | Min. ground clearance | mm | 95 | 95 |
| 8 | Overall length | mm | 1720 | 2020 |
| 9 | Wheelbase | mm | 1040 | 1325 |
| 10 | Overall width | mm | 850 | 985 |
| 11 | Track width (front/ rear) | mm | 760 | 870 |
| 12 | Turning radius | mm | 1400 | 1525 |
| 13 | Travel speed (full load/ no load) | km/h | 4.5/ 7 | ‘8/15 |
| 14 | Gradient (full load/ no load) | % | ‘3/10 | ’6/12 |
| 15 | Drive motor power | kw | 2 | 5 |
| 16 | Battery voltage/ capacity | v/ah | 24/240 | 48/280 |
| 17 | Service weight (incl. battery) | kg | 210 | 550 |
| 18 | Steering type | 900 | 1200 | |
| 19 | Service brake type | Electric steering | Electric steering | |
| 20 | Parking brake type | Mechanical/ hydraulic | Mechanical/ hydraulic |
