Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CQD15S-45
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 6000-7500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |

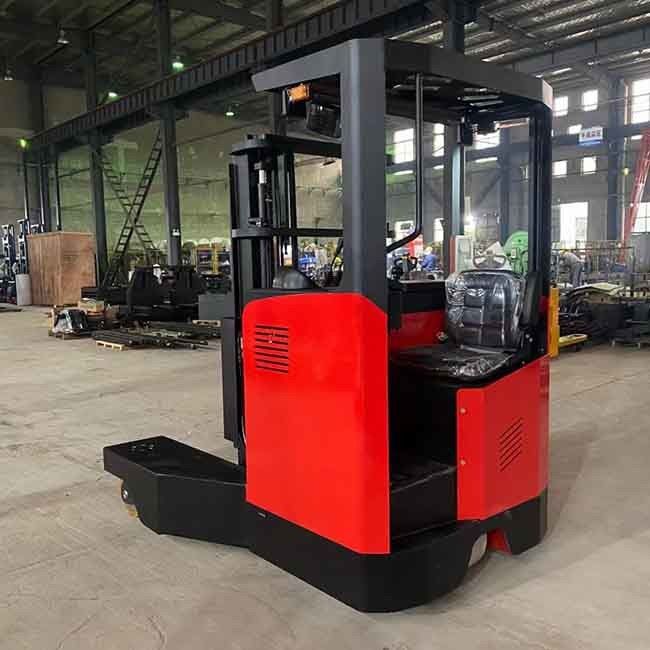

1.5T Multi-direction Seated Forklift |
Load Capacity: |
1500 Kgs*600mm |
Lift Height: |
3000-7500mm |
Mast Type: |
Triplex 7500mm |
Battery: |
48V/310Ah |
Service Weight: |
3500 Kgs |
Product Name: |
1.5T Multi-direction Seated Forklift |
Load Capacity: |
1500 Kgs*600mm |
Lift Height: |
3000-7500mm |
Mast Type: |
Triplex 7500mm |
Battery: |
48V/310Ah |
Service Weight: |
3500 Kgs |
Main information:
Model: CQD15S/ 20S
Load: 1500-20000KG
Lifting height: 3000-7500mm
Curtis controller
AC drive an lift motor
| Item | Model | CQD15S-45 | |
| 1 | Load capacity | Q(kg) | 1500 |
| 2 | Load center | C(mm) | 500 |
| 3 | Front overhang | X(mm) | 210 |
| 4 | Wheel base | Y(mm) | 1600 |
| 5 | Self weight with battery | kg | 3500 |
| 6 | Tire type | Pu solid tire | |
| 7 | Front tire size | ∅×w(mm) | φ267*114 |
| 8 | Rear tire size | ∅×w(mm) | φ382*142 |
| 9 | Track width, front wheels | b10(mm) | 1432 |
| 10 | Height-Mast lowered | h1(mm) | 2110 |
| 11 | Free Lift Height | h2(mm) | 1500 |
| 12 | Lift Height | h3(mm) | 4500 |
| 13 | The maximum height of the gantry during homework | h4(mm) | 5480 |
| 14 | The height of overhead guards | h14(mm) | 2280 |
| 15 | The height when fork lowered | h13(mm) | 35 |
| 16 | Tilt-Forward/Back | α/β(°) | 3/5 |
| 17 | Overall length | l1(mm) | 2490 |
| 18 | Length of the body | l2(mm) | 2080 |
| 19 | Width of the body | b1(mm) | 1682 |
| 20 | Leg height | h5(mm) | 390 |
| 21 | Leg inner width | b12(mm) | 932 |
| 22 | Leg outer width | b11(mm) | 1682 |
| 23 | Fork Dimensions | s/e/l(mm) | 35/100/1070 |
| 24 | Fork Spread | b5(mm) | 210-700 |
| 25 | Reach distance | L(mm) | 685 |
| 26 | Min ground clearance | m2(mm) | 70 |
| 27 | Aisle Width,pallet 1000*1200mm | Ast(mm) | 2690 |
| 28 | Min. Turning radius | Wa(mm) | 1916 |
| 29 | Max travel speed unladen/Load | km/h | 8/7 |
| 30 | Max. lifting speed unladen/Load | m/s | 0.250/0.240 |
| 31 | Max. lowing speed unladen/Load | m/s | 0.240/0.260 |
| 32 | Grade Ability unladen/Load | ％ | ≤10 |
| 33 | Drive brake | electromagnetic | |
| 34 | Drive motor | kw | 6.5 |
| 35 | Lift motor | kw | 8.6 |
| 36 | Battery type | Lead acid | |
| 37 | Battery capacity | V/Ah | 48V300Ah |
| 38 | Charger-intelligent | V/Ah | 48V/40A |
| 39 | Drive Controll Type | alternating current | |
| 40 | The noise level in the driver's ear according to EN12053 | dB(A) | 75 |
