Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CPDB15-25
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 6000-7500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
1.5T Counterbalanced Stacker |
Load Capacity: |
1500 Kgs*600mm |
Lift Height: |
2.5m |
Mast Type: |
Duplex |
Battery: |
24V/220Ah |
Service Weight: |
1775 Kgs |
Product Name: |
1.5T Counterbalanced Stacker |
Load Capacity: |
1500 Kgs*600mm |
Lift Height: |
2.5m |
Mast Type: |
Duplex |
Battery: |
24V/220Ah |
Service Weight: |
1775 Kgs |
Main information:
Load capacity: 1500kg
Chinese AC controller, AC motors
24V/215Ah lead acid battery
Mast type: duplex mast
Lift height: 2500mm

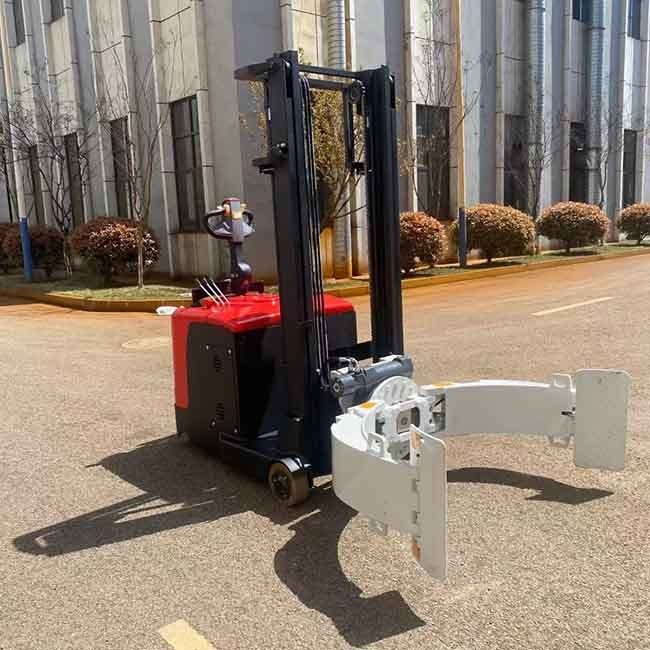

Attachment: paper roll clamp
The YEAWEY Lead acid / Lithium battery stand reach truck adopts four columns for cabin to penetrate the frame which is both beautiful and safe.Wide field of vision and driving space along with high elastic shock-absorbing seats provide a unique driving pleasure.
Humanized design
Wide vision and driving space,ergonomic layout,embodies the humanized design.
Password lock
The multi-function password lock can manually enter the password or swipe the card to start, which simplifies the authorization operation process and meets the requirements of multi-shift work.
Speed control technology
The Ac variable frequency speed control technology enables the driving, hoisting, and steering drive to realize stepless closed-loop speed control, which is accurate and reliable.
| Item | Model | CPDB15-25 | |
| 1 | Power type | Electric | |
| 2 | Drive mode | Standing Type | |
| 3 | Load capacity | Q(kg) | 1500 |
| 4 | Load center | C(mm) | 500 |
| 5 | Front overhang | X(mm) | 129 |
| 6 | Wheel base | Y(mm) | 1435 |
| 7 | Self weight with battery | kg | 1775 |
| 8 | Tire type | Pu solid tire | |
| 9 | Driver specifications | ∅×w(mm) | φ230*75 |
| 10 | Front tire size | ∅×w(mm) | φ210*85 |
| 11 | Rear tire size | ∅×w(mm) | φ150*50 |
| 12 | Track width, front wheels | b10(mm) | 898 |
| 13 | Track width, rear wheels | b11(mm) | 736 |
| 14 | Height-Mast Lowered | h1(mm) | 1845 |
| 15 | Lift Height | h3(mm) | 2500 |
| 16 | The maximum height of the gantry during homework | h4(mm) | 3470 |
| 17 | Length of body | l2(mm) | 1857 |
| 18 | Overall length | L1(mm) | 2934 |
| 19 | Width of body | b1(mm) | 983 |
| 20 | Frork dimensions | s/e/l(mm) | 35/100/1070 |
| 21 | Fork spread | b5(mm) | 210-680 |
| 22 | Min ground clearance | m2(mm) | 70 |
| 23 | Channel width,pallet size 1000*1000mm | Ast(mm) | 3231/3634 |
| 24 | Min. Turning radius(Pedal retraction/unfolding | Wa(mm) | 1752/2155 |
| 25 | Max.walking speed | km/h | 5/4 |
| 26 | Max. lifting speed | m/s | 0.112/0.085 |
| 27 | Max. lowing speed | m/s | 0.094/0.115 |
| 28 | Grade Ability | ％ | 8/5 |
| 29 | Drive brake | Electromagnetic | |
| 30 | Drive motor | kw | 1.5 |
| 31 | Lift motor | kw | 2.2 |
| 32 | Battery type | Lead acid | |
| 33 | Battery capacity | V/Ah | 24V210Ah |
| 34 | Charger | V/A | 24V/30A |
| 35 | DriveControllingType | alternating current | |
| 36 | The noise level in the driver's ear according to EN12053 | dB(A) | 75 |
