Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CQD30BS
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 6000-7500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
3T Electric Reach Stacker 24V Seat Type |
Load Capacity: |
3T |
Lift Height: |
3-6m |
Mast Type: |
Triplex Mast |
Battery: |
48V/400Ah |
Service Weight: |
3850 Kgs |
Product Name: |
3T Electric Reach Stacker 24V Seat Type |
Load Capacity: |
3T |
Lift Height: |
3-6m |
Mast Type: |
Triplex Mast |
Battery: |
48V/400Ah |
Service Weight: |
3850 Kgs |

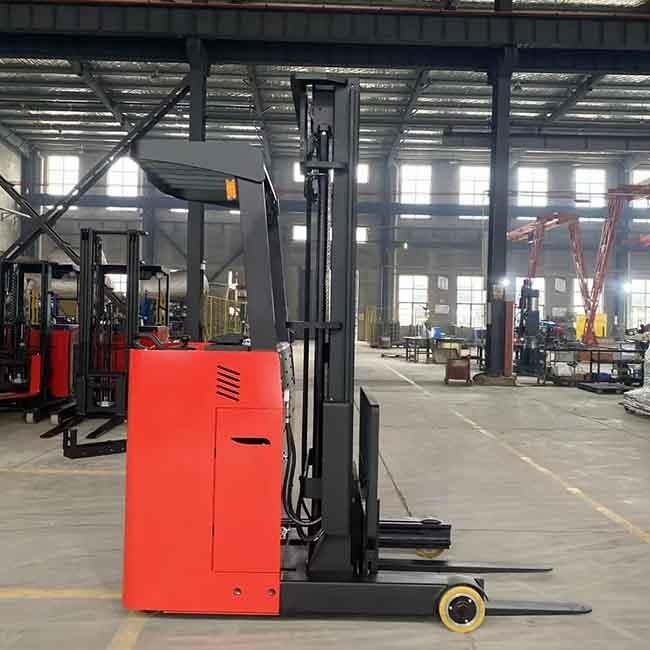

3000kg 48V CQD30BS 3.0T Electric Reach forklift truck stand type triplex 3-6m mast
Main information:
Curtis AC controller
AC lift and drive motor
Lift height 3m to 6m
Lead acid battery 24V/2810AH
Stand type
The YEAWEY Lead acid / Lithium battery stand reach truck adopts four columns for cabin to penetrate the frame which is both beautiful and safe.Wide field of vision and driving space along with high elastic shock-absorbing seats provide a unique driving pleasure.
Motor current detection control
Prevent the motor from being damaged due to excessive motor current.
Electromagnetic brake and hydraulic brake
combination of electromagnetic braking and hydraulic braking, short braking distance, no deviation, no impact, safe and reliable.
Parking electromagnetic brake
It can realize one-button operation function either on the ramp and smooth ground.
| Item | Model | CQD30BS-30 | |
| 1 | Power type | Electric | |
| 2 | Drive mode | Standing Type | |
| 3 | Load capacity | Q(kg) | 3000 |
| 4 | Load center | C(mm) | 500 |
| 5 | Wheel base | Y(mm) | 1770 |
| 6 | Reach distance | L(mm) | 610 |
| 7 | Self weight with battery | kg | 3850 |
| 8 | Tire type | Pu solid tire | |
| 9 | Front tire size | ∅×w(mm) | 280*135 |
| 10 | Rear tire size | ∅×w(mm) | 382*142 |
| 11 | Balance wheel size | ∅×w(mm) | 180*76 |
| 12 | Track width, front wheels | b10(mm) | 1330 |
| 13 | Height-Mast lowered | h1(mm) | 2280 |
| 14 | Free Lift Height | h2(mm) | 0 |
| 15 | Lift Height | h3(mm) | 3000 |
| 16 | The maximum height of the gantry during homework | h4(mm) | 3945 |
| 17 | The height of overhead guards | h14(mm) | 2305 |
| 18 | The height when fork lowered | h13(mm) | 45 |
| 19 | Tilt-Forward/Back | α/β(°) | 3/5 |
| 20 | Overall length without forks/with forks | l2(mm) | 2150/2640 |
| 21 | Width of the body | b1(mm) | 1460 |
| 22 | Fork Dimensions | s/e/l(mm) | 45/125/1070 |
| 23 | Fork Spread | b5(mm) | 244-820 |
| 24 | Min ground clearance | m2(mm) | 80 |
| 25 | Aisle Width,pallet 1000*1200mm | Ast(mm) | 3220 |
| 26 | Min. Turning radius | Wa(mm) | 2200 |
| 27 | Max.walking speed | km/h | 8/7 |
| 28 | Max. lifting speed | m/s | 0.240/0.170 |
| 29 | Max. lowing speed | m/s | 0.300/0.380 |
| 30 | Grade Ability | ％ | ≤8 |
| 31 | Drive brake | electromagnetic | |
| 32 | Drive motor | kw | 8 |
| 33 | Lift motor | kw | 12 |
| 34 | Battery type | Lead acid | |
| 35 | Battery capacity | V/Ah | 48V400Ah |
| 36 | Charger | V/Ah | 48V/50A |
| 37 | DriveControllingType | alternating current | |
| 38 | The noise level in the driver's ear according to EN12053 | dB(A) | 75 |
