Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CPDB20-25
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 6000-7500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |

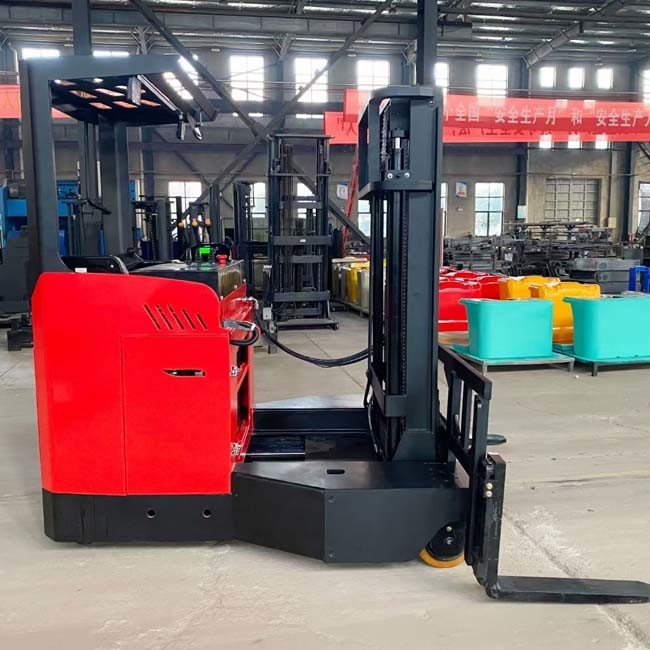

2.5T Multi-direction Stacker |
Load Capacity: |
2500 Kgs*600mm |
Lift Height: |
6.5m |
Mast Type: |
Triplex Type |
Battery: |
48V/300Ah |
Service Weight: |
4100 Kgs |
Product Name: |
2.5T Multi-direction Stacker |
Load Capacity: |
2500 Kgs*600mm |
Lift Height: |
6.5m |
Mast Type: |
Triplex Type |
Battery: |
48V/300Ah |
Service Weight: |
4100 Kgs |
Main information:
Model: CQD15S/ 20S
Load: 1500-20000KG
Lifting height: 3000-7500mm
Curtis controller
AC drive an lift motor
Four-directional driving, used for narrow aisle stacking operation,saving storage area greatly, switching fast between straight and side lines, simple operation, quickly change direction, highefficiency and few failure rate.
Free maintenance of AC drive system, making the whole vehicle more responsive and accurate.
lmported controller, accurate control, simple setting of electrical control parameters, powerful function and low failure rate.
Stable operation, especially used for long shape material handling.
Real-time display of driving wheel angle makes it easy to fine turn the direction in narrow aisle, very safe, reasonable and accurate identification.
Large capacity special power battery with strong power, safe and reliable, convenient charging, long cycle life and low maintenance cost.
| Item | Model | CQD25S-45 | |
| 1 | Load capacity | Q(kg) | 2500 |
| 2 | Load center | C(mm) | 500 |
| 3 | Front overhang | X(mm) | 210 |
| 4 | Wheel base | Y(mm) | 1800 |
| 5 | Self weight with battery | kg | 4100 |
| 6 | Tire type | Pu solid tire | |
| 7 | Front tire size | ∅×w(mm) | φ267*114 |
| 8 | Rear tire size | ∅×w(mm) | φ382*142 |
| 9 | Track width, front wheels | b10(mm) | 1432 |
| 10 | Height-Mast lowered | h1(mm) | 2360 |
| 11 | Free Lift Height | h2(mm) | 1500 |
| 12 | Lift Height | h3(mm) | 4500 |
| 13 | The maximum height of the gantry during homework | h4(mm) | 5480 |
| 14 | The height of overhead guards | h14(mm) | 2180 |
| 15 | The height when fork lowered | h13(mm) | 45 |
| 16 | Tilt-Forward/Back | α/β(°) | 3/5 |
| 17 | Overall length | l1(mm) | 2660 |
| 18 | Length of the body | l2(mm) | 2280 |
| 19 | Width of the body | b1(mm) | 1682 |
| 20 | Leg height | h5(mm) | 390 |
| 21 | Leg inner width | b12(mm) | 932 |
| 22 | Leg outer width | b11(mm) | 1682 |
| 23 | Fork Dimensions | s/e/l(mm) | 45/125/1070 |
| 24 | Fork Spread | b5(mm) | 260-700 |
| 25 | Reach distance | L(mm) | 720 |
| 26 | Min ground clearance | m2(mm) | 70 |
| 27 | Aisle Width,pallet 1000*1200mm | Ast(mm) | 2860 |
| 28 | Min. Turning radius | Wa(mm) | 2120 |
| 29 | Max travel speed unladen/Load | km/h | 8/7 |
| 30 | Max. lifting speed unladen/Load | m/s | 0.240/0.220 |
| 31 | Max. lowing speed unladen/Load | m/s | 0.240/0.260 |
| 32 | Grade Ability unladen/Load | ％ | ≤10 |
| 33 | Drive brake | electromagnetic | |
| 34 | Drive motor | kw | 6.5 |
| 35 | Lift motor | kw | 8.6 |
| 36 | Battery type | Lead acid | |
| 37 | Battery capacity | V/Ah | 48V400Ah |
| 38 | Charger-intelligent | V/Ah | 48V/50A |
| 39 | Drive Controll Type | alternating current | |
| 40 | The noise level in the driver's ear according to EN12053 | dB(A) | 75 |
