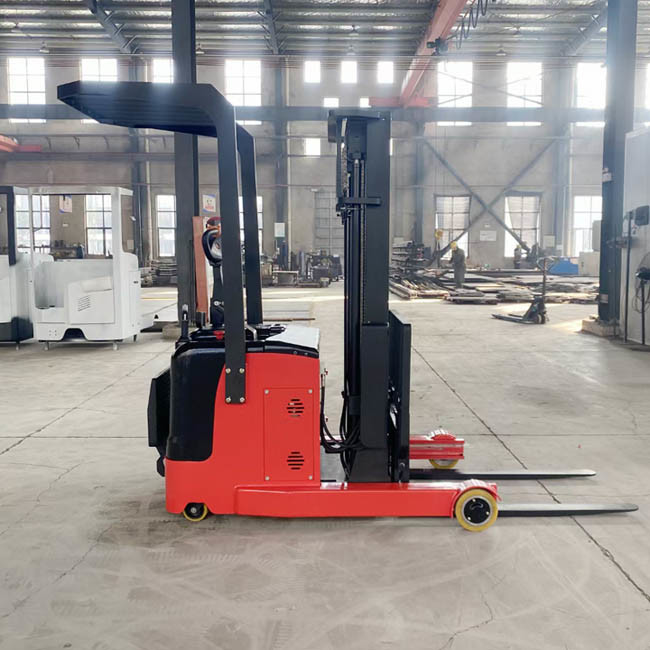

Red CQD15A-30 Walkie Stacker With Reach 1500kg Battery Reach Truck

Product Details

Place of Origin: China

Brand Name: YEAWEY

Certification: CE ISO,SGS

Model Number: CQD15A-30

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: 6000-7500 usd

Packaging Details: Plastic bag

Delivery Time: 5-8 working days

Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability: 100 units per month

Get Best Price
Highlight:

CQD15A-30 Walkie Stacker With Reach

,

Red Walkie Stacker With Reach

,

1500kg Battery Reach Truck

Product Name:
1.5T MINI Electric Reach Truck
Load Capacity:
1.5Ton
Lift Height:
3000mm
Mast Type:
Duplex
Battery:
24V/210Ah
Service Weight:
2250 Kgs
Product Name:
1.5T MINI Electric Reach Truck
Load Capacity:
1.5Ton
Lift Height:
3000mm
Mast Type:
Duplex
Battery:
24V/210Ah
Service Weight:
2250 Kgs
Red CQD15A-30 Walkie Stacker With Reach 1500kg Battery Reach Truck

1500kg CQD15A-301.5Ton MINI electric reach truck warehouse use red color



Main information:

Load capacity: 1500kg

Side standing type

Chinese AC controller, AC motors
24V/210Ah lead acid battery
Mast type: Duplex mast
Lift height: 3m
Attachment:

The YEAWEY Lead acid / Lithium battery stand reach truck adopts four columns for cabin to penetrate the frame which is both beautiful and safe.Wide field of vision and driving space along with high elastic shock-absorbing seats provide a unique driving pleasure.



Energy efficient.

High-speed lifting and lowering control improves your work efficiency.It adopts AC drive motor, hydraulic pump motor and steering motor, with long life, maintenance-free and reliable performance. All lights use LED, durable and energy-saving.



Turning Speed Limit Control

Prevent the forklift from overturning sideways when turning, and ensure the safety.



Electromagnetic brake and hydraulic brake

combination of electromagnetic braking and hydraulic braking, short braking distance, no deviation, no impact, safe and reliable.





Item Model   CQD15A
1 Power type   Battery
2 Driving mode   Stand-on type
3 Rated load kg 1500
4 Load center distance mm 500
5 Front overhang distance mm 145
6 Wheelbase mm 1400
7 Vehicle weight kg 2000
8 Tire type   Polyurethane
9 Bearing wheel mm 210*85
10 Drive wheel mm 230*75
11 Auxiliary wheel mm 130*55
12 Track width, drive side mm 684
13 Track width, bearing side mm 990
14 Height of mast closed mm 1830
16 Fork tilt forward and backward ° 3/5
17 Lifting height mm 3000
18 Max. height of mast open mm 3485
19 Panel height mm 195
20 Leg height mm 235
21 Overall length (pedal deployment) mm 2345/2850
22 Overall width mm 900/1084
23 Fork size mm 1070/100/35
24 Shelf width mm 1000
25 Outside width of fork mm 240-700
26 Inner spacing of the legs mm 802
27 Forward position mm 450
28 Mast clearance mm 70
29 Turning radius mm 1670/2100
30 Driving speed(full load/ no load) km/h 4.0/5.5
31 Lifting speed(full load/ no load) mm/s 80/150
32 Descent speed(full load/ no load) mm/s 200/105
33 Max. climbing capacity(full load/ no load) % 5/10
34 Braking mode   Electromagnetic type
35 Drive motor power kw 1.5
36 Lifting motor power kw 3
37 Battery, voltage/ rated capacity v/ah 24/210
38 Battery weight kg 200
39 Steering system   Electronic steering
40 Braking system   Electromagnetic braking
