Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CQD20A-30
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 6000-7500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
2Ton Small Load Electric Reach Truck |
Load Capacity: |
2000 Kgs |
Lift Height: |
3000mm |
Mast Type: |
Duplex 2 Stage |
Battery: |
24V/210Ah |
Service Weight: |
2150 Kgs |
Product Name: |
2Ton Small Load Electric Reach Truck |
Load Capacity: |
2000 Kgs |
Lift Height: |
3000mm |
Mast Type: |
Duplex 2 Stage |
Battery: |
24V/210Ah |
Service Weight: |
2150 Kgs |

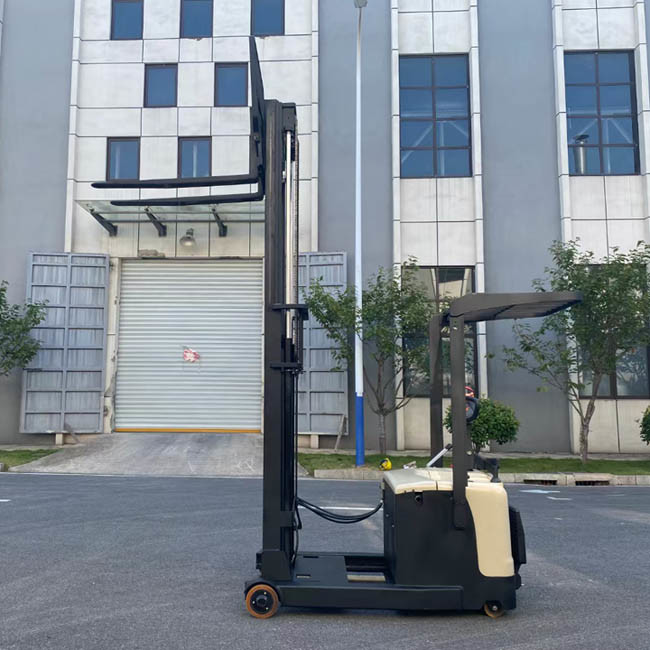

2000kg CQD20A-35 2T small load electric reach truck warehouse use standing type
Main information:
Load capacity: 2000kg
Standing type
With overhead guard
AC controller, AC motors
24/210Ah lead acid battery
Mast type: Duplex mast
Lift height: 3000mm
| Item | Model | CQD20A | |
| 1 | Power type | Battery | |
| 2 | Driving mode | Stand-on type | |
| 3 | Rated load | kg | 2000 |
| 4 | Load center distance | mm | 500 |
| 5 | Front overhang distance | mm | 145 |
| 6 | Wheelbase | mm | 1500 |
| 7 | Vehicle weight | kg | 2150 |
| 8 | Tire type | Polyurethane | |
| 9 | Bearing wheel | mm | 210*85 |
| 10 | Drive wheel | mm | 230*75 |
| 11 | Auxiliary wheel | mm | 130*55 |
| 12 | Track width, drive side | mm | 684 |
| 13 | Track width, bearing side | mm | 990 |
| 14 | Height of mast closed | mm | 1830 |
| 16 | Fork tilt forward and backward | ° | 3/5 |
| 17 | Lifting height | mm | 3000 |
| 18 | Max. height of mast open | mm | 3485 |
| 19 | Panel height | mm | 195 |
| 20 | Leg height | mm | 235 |
| 21 | Overall length (pedal deployment) | mm | 2445/2950 |
| 22 | Overall width | mm | 900/1084 |
| 23 | Fork size | mm | 1070/122/40 |
| 24 | Shelf width | mm | 1000 |
| 25 | Outside width of fork | mm | 240-700 |
| 26 | Inner spacing of the legs | mm | 802 |
| 27 | Forward position | mm | 550 |
| 28 | Mast clearance | mm | 70 |
| 29 | Turning radius | mm | 1785/2200 |
| 30 | Driving speed(full load/ no load) | km/h | 4.0/5.5 |
| 31 | Lifting speed(full load/ no load) | mm/s | 75/150 |
| 32 | Descent speed(full load/ no load) | mm/s | 240/105 |
| 33 | Max. climbing capacity(full load/ no load) | % | 5/10 |
| 34 | Braking mode | Electromagnetic type | |
| 35 | Drive motor power | kw | 2.2 |
| 36 | Lifting motor power | kw | 3 |
| 37 | Battery, voltage/ rated capacity | v/ah | 24/210AH |
| 38 | Battery weight | kg | 200 |
| 39 | Steering system | Electronic steering | |
| 40 | Braking system | Electromagnetic braking |
