Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CDD30-30
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 6000-7500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
3T Standing Type Electric Forklift |
Load Capacity: |
300 Kgs*600mm |
Lift Height: |
3000mm |
Mast Type: |
2 Stage Good View |
Battery: |
24V/213Ah |
Service Weight: |
1690 Kgs |
Product Name: |
3T Standing Type Electric Forklift |
Load Capacity: |
300 Kgs*600mm |
Lift Height: |
3000mm |
Mast Type: |
2 Stage Good View |
Battery: |
24V/213Ah |
Service Weight: |
1690 Kgs |

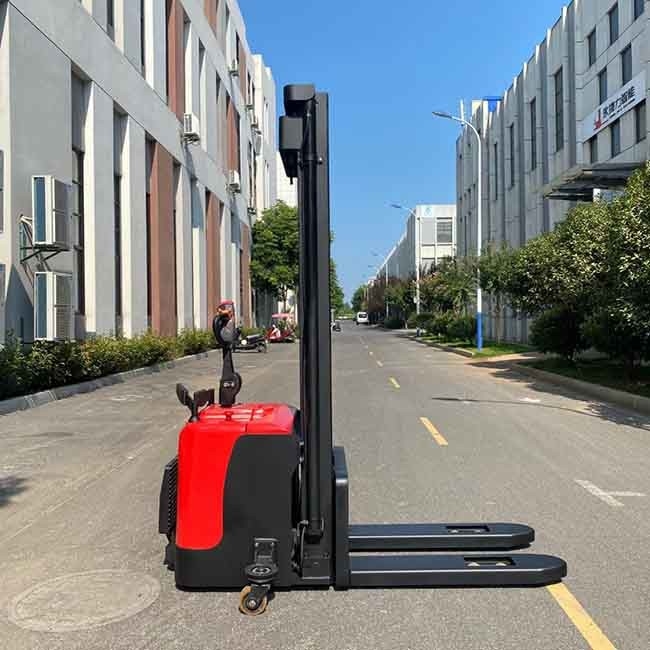

2 stage 3.0m mast 3Ton electric stacker warehouse use standing type lead acid battery
Main information:
Load capacity: 3000kg
Chinese AC controller, AC motors
24V/220Ah lead acid battery
Mast type: duplex mast
Lift height: 3000mm
Fork: 1220mm
YEAWEY electric stacker is more adoptable to complex ground and not easy to slip. The fixed balance wheel on both side enhances the stability and pass ability of the truck.
Driving wheel with pressure adjustable structure, is more practical for different application scenarios and vehicle weights.
Driving wheel floating technology, combined with foldable platform floating structure, makes the truck higher effective in shock absorption and more comfortable in operation.
Password lock
The multi-function password lock can manually enter the password or swipe the card to start, which simplifies the authorization operation process and meets the requirements of multi-shift work.
Safety operation
Elector-hydraulic proportional control system, good fretting performance, more stable work and more precise control.
Stable mast
High-precision forward sliding rails and excellent clearance compensation design make the mast more stable during reach application.
| Item | Model | CDD30II-30 | |
| 1 | Power type | Fully electric | |
| 2 | Drive mode | Standing Type | |
| 3 | Load capacity | Q(Kg) | 3000 |
| 4 | Load center | C(mm) | 500 |
| 5 | Wheel base | Y(mm) | 1577 |
| 6 | Self weight with battery | kg | 1690 |
| 7 | Tire type Front/Rear | Pu solid tire | |
| 8 | Front tire size | ∅×w(mm) | Φ85x90 |
| 9 | Rear tire size | ∅×w(mm) | Φ254x104 |
| 10 | Track width, front wheels | b2(mm) | 530 |
| 11 | Track width, rear wheels | b3(mm) | 758 |
| 12 | Height-Mast Lowered | h(mm) | 2188 |
| 13 | Lift Height | h1(mm) | 3000 |
| 14 | Maximum height when fork is lifting | h2(mm) | 3571 |
| 15 | Handle Height | h5(mm) | 1430 |
| 16 | Min. Fork height | h3(mm) | 95 |
| 17 | Overall length Pedal Closed/open | L(mm) | 2235/2655 |
| 18 | Overall width | b1(mm) | 1020 |
| 19 | Fork size | s/e/l(mm) | 75/230/1150 |
| 20 | Width over fork | b5(mm) | 760 |
| 21 | Min ground clearance | m2(mm) | 30 |
| 22 | Min. stacking aisle 1000*1200 pallet(1200 cross fork placement) | Ast(mm) | 2715 |
| 23 | Min. stacking aisle 1000*1200 pallet(1200 placed along forks) | Ast(mm) | 3120 |
| 24 | Min Turning Radius When Pedal Closed | Wa(mm) | 1880 |
| 25 | Max.walking speed | km/h | 5.5/4 |
| 26 | Max. lifting speed | m/s | 0.117/0.08 |
| 27 | Max. lowing speed | m/s | 0.082/0.140 |
| 28 | GradeAbility | ％ | 6/4 |
| 29 | Drive brake | Electromagnetic | |
| 30 | Drive motor | kw | 3 |
| 31 | Lift motor | kw | 3 |
| 32 | Battery type | Lead acid battery | |
| 33 | Battery capacity | V/Ah | 24/210 |
| 34 | Charger | V/A | 24/30 |
| 35 | DriveControllingType | alternating current | |
| 36 | The noise level in the driver's ear according to EN12053 | dB(A) | 75 |
