Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CDD20-16
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 6000-7500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
2T Standing Type Electric Forklift |
Load Capacity: |
2000 Kgs*600mm |
Lift Height: |
1600mm Mast |
Mast Type: |
2 Stage Wide View |
Battery: |
24V/210Ah |
Service Weight: |
1150kgs |
Product Name: |
2T Standing Type Electric Forklift |
Load Capacity: |
2000 Kgs*600mm |
Lift Height: |
1600mm Mast |
Mast Type: |
2 Stage Wide View |
Battery: |
24V/210Ah |
Service Weight: |
1150kgs |

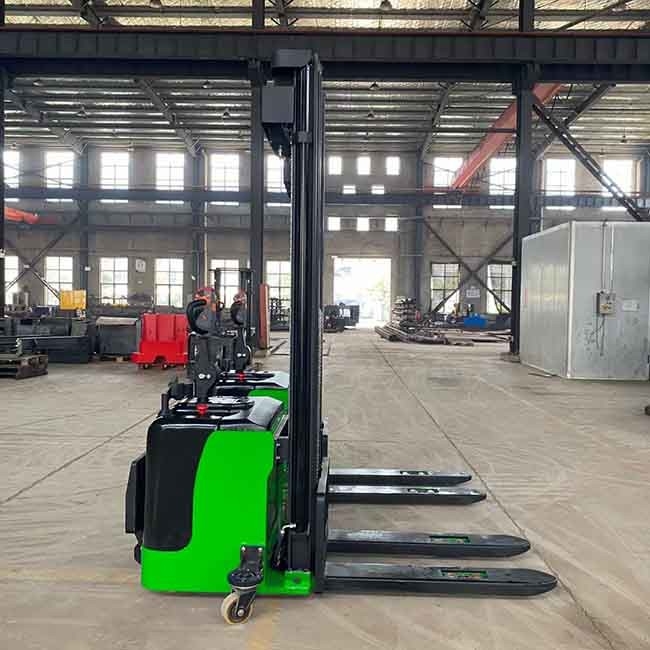

2 stage 1.6m mast 2Ton electric stacker warehouse use standing type
Main information:
Load capacity: 2000kg
Chinese AC controller, AC motors
24V/210Ah lead acid battery forklift
Mast type: 2 stage mast
Lift height: 3000mm
Fork: 1200mm
YEAWEY electric stacker is more adoptable to complex ground and not easy to slip. The fixed balance wheel on both side enhances the stability and pass ability of the truck.
Driving wheel with pressure adjustable structure, is more practical for different application scenarios and vehicle weights.
Driving wheel floating technology, combined with foldable platform floating structure, makes the truck higher effective in shock absorption and more comfortable in operation.
Warranty:
The warranty period is 24 months from on board date or 2000 working hours whichever comes first.
During warranty, we offer air delivery of the spare parts within 2 working days.Besides that, we have experienced engineers to check the problems and maintenance.
Delivery time:
As a factory, we can offer fast products delivery, standard forklift is 7 working days, Forklift with options is 10-20 working days.
Should you have any questions pls feel free to let us know.
| Item | Model | CDD20II-30 | |
| 1 | Power type | Fully electric | |
| 2 | Drive mode | Standing Type | |
| 3 | Load capacity | Q(Kg) | 2000 |
| 4 | Load center | C(mm) | 500 |
| 5 | Wheel base | Y(mm) | 1430 |
| 6 | Self weight with battery | kg | 1150 |
| 7 | Tire type Front/Rear | Pu solid tire | |
| 8 | Front tire size | ∅×w(mm) | Φ80x70 |
| 9 | Rear tire size | ∅×w(mm) | Φ230x75 |
| 10 | Track width, front wheels | b2(mm) | 490 |
| 11 | Track width, rear wheels | b3(mm) | 658 |
| 12 | Height-Mast Lowered | h(mm) | 2060 |
| 13 | Lift Height | h1(mm) | 3000 |
| 14 | Maximum height when fork is lifting | h2(mm) | 3541 |
| 15 | Handle Height | h5(mm) | 1430 |
| 16 | Min. Fork height | h3(mm) | 85 |
| 17 | Overall length Pedal Closed/open | L(mm) | 2185/2605 |
| 18 | Overall width | b1(mm) | 850 |
| 19 | Fork size | s/e/l(mm) | 65/190/1150 |
| 20 | Width over fork | b5(mm) | 680 |
| 21 | Min ground clearance | m2(mm) | 30 |
| 22 | Min. stacking aisle 1000*1200 pallet(1200 cross fork placement) | Ast(mm) | 2615 |
| 23 | Min. stacking aisle 1000*1200 pallet(1200 placed along forks) | Ast(mm) | 3016 |
| 24 | Min Turning Radius When Pedal Closed | Wa(mm) | 1729/2130 |
| 25 | Max.walking speed | km/h | 5.5/5 |
| 26 | Max. lifting speed | m/s | 0.1/0.086 |
| 27 | Max. lowing speed | m/s | 0.082/0.123 |
| 28 | GradeAbility | ％ | 8/4 |
| 29 | Drive brake | Electromagnetic | |
| 30 | Drive motor | kw | 1.5 |
| 31 | Lift motor | kw | 2.2 |
| 32 | Battery type | Lead acid battery | |
| 33 | Battery capacity | V/Ah | 24/210 |
| 34 | Charger | V/A | 24/30 |
| 35 | DriveControllingType | alternating current | |
| 36 | The noise level in the driver's ear according to EN12053 | dB(A) | 75 |
