Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CDD15-30
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 6000-7500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
1.5T Standing Type Electric Forklift |
Load Capacity: |
1500 Kgs*600mm |
Lift Height: |
3000mm Mast |
Mast Type: |
Duplex Mast |
Battery: |
24V/205Ah |
Service Weight: |
1115kgs |
Product Name: |
1.5T Standing Type Electric Forklift |
Load Capacity: |
1500 Kgs*600mm |
Lift Height: |
3000mm Mast |
Mast Type: |
Duplex Mast |
Battery: |
24V/205Ah |
Service Weight: |
1115kgs |

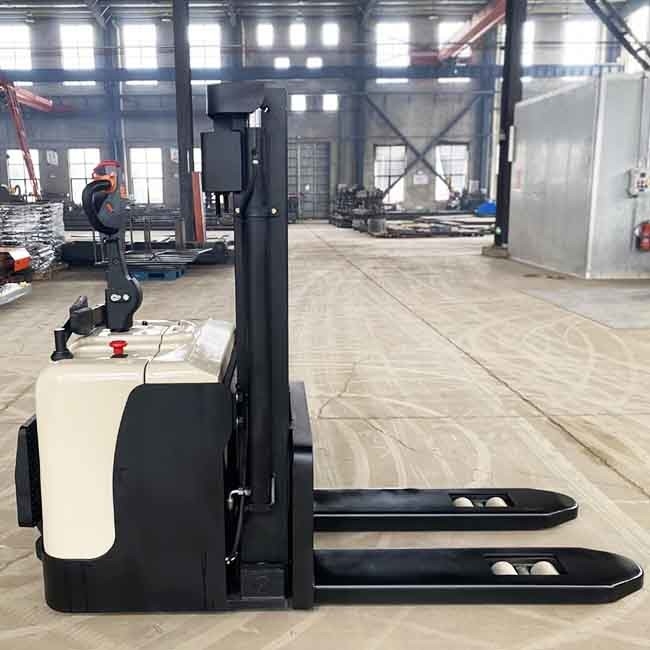

2 stage 3m mast 1.5Ton electric stacker warehouse use standing type
Main information:
Chinese AC controller, AC motors
2*12V/80Ah lead acid battery forklift
Mast type: 2 stage mast
Lift height: 3000mm
Fork: 1200mm
YEAWEY electric stacker is more adoptable to complex ground and not easy to slip. The fixed balance wheel on both side enhances the stability and pass ability of the truck.
Driving wheel with pressure adjustable structure, is more practical for different application scenarios and vehicle weights.
Driving wheel floating technology, combined with foldable platform floating structure, makes the truck higher effective in shock absorption and more comfortable in operation.
Work in narrow place:
The whole vehicle is concise and agile, suitable for working in narrow spaces.
High quality battery:
Standard maintenance free lead-acid battery, optional (lithium iron phosphate battery, full load ramp up 10% high-power controller);
| Item | Model | CDD15II-30 | |
| 1 | Power type | Fully electric | |
| 2 | Drive mode | Standing Type | |
| 3 | Load capacity | Q(Kg) | 1500 |
| 4 | Load center | C(mm) | 500 |
| 5 | Wheel base | Y(mm) | 1430 |
| 6 | Self weight with battery | kg | 1115 |
| 7 | Tire type Front/Rear | Pu solid tire | |
| 8 | Front tire size | ∅×w(mm) | Φ80x70 |
| 9 | Rear tire size | ∅×w(mm) | Φ230x75 |
| 10 | Track width, front wheels | b2(mm) | 490 |
| 11 | Track width, rear wheels | b3(mm) | 658 |
| 12 | Height-Mast Lowered | h(mm) | 2060 |
| 13 | Lift Height | h1(mm) | 3000 |
| 14 | Maximum height when fork is lifting | h2(mm) | 3541 |
| 15 | Handle Height | h5(mm) | 1430 |
| 16 | Min. Fork height | h3(mm) | 85 |
| 17 | Overall length Pedal Closed/open | L(mm) | 2185/2605 |
| 18 | Overall width | b1(mm) | 850 |
| 19 | Fork size | s/e/l(mm) | 65/190/1150 |
| 20 | Width over fork | b5(mm) | 680 |
| 21 | Min ground clearance | m2(mm) | 30 |
| 22 | Min. stacking aisle 1000*1200 pallet(1200 cross fork placement) | Ast(mm) | 2615 |
| 23 | Min. stacking aisle 1000*1200 pallet(1200 placed along forks) | Ast(mm) | 3016 |
| 24 | Min Turning Radius When Pedal Closed | Wa(mm) | 1729/2130 |
| 25 | Max.walking speed | km/h | 5.5/5 |
| 26 | Max. lifting speed | m/s | 0.1/0.09 |
| 27 | Max. lowing speed | m/s | 0.082/0.115 |
| 28 | GradeAbility | ％ | 8/6 |
| 29 | Drive brake | Electromagnetic | |
| 30 | Drive motor | kw | 1.5 |
| 31 | Lift motor | kw | 2.2 |
| 32 | Battery type | Lead acid battery | |
| 33 | Battery capacity | V/Ah | 24/210 |
| 34 | Charger | V/A | 24/30 |
| 35 | DriveControllingType | alternating current | |
| 36 | The noise level in the driver's ear according to EN12053 | dB(A) | 75 |
