Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CTD20
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 6000-7500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
20T Standing Electric Straddle Stacker |
Load Capacity: |
2000kgs*600mm |
Lift Height: |
3000mm Mast |
Fork Length: |
1220mm |
Battery: |
24V/210Ah |
Service Weight: |
730 |
Product Name: |
20T Standing Electric Straddle Stacker |
Load Capacity: |
2000kgs*600mm |
Lift Height: |
3000mm Mast |
Fork Length: |
1220mm |
Battery: |
24V/210Ah |
Service Weight: |
730 |

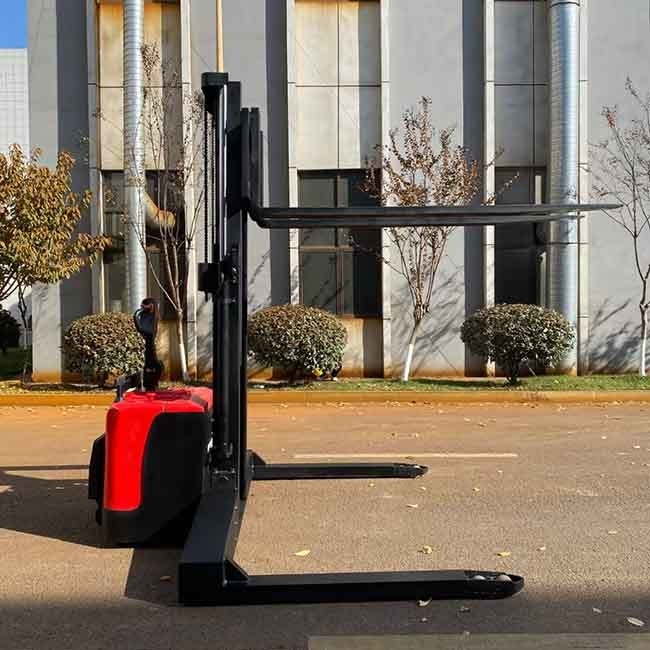

Duplex mast 3m mast 2Ton electric standing straddle stacker warehouse use lead acid battery
Main information:
Chinese AC controller
Load capacity: 2000kg
Standarding type
24V/210Ah lead acid battery forklift
Mast type: 2 stage mast
Lift height: 3000mm
Fork: 1200mm
The new Yeawey battery powered MINI electric pallet truck is designed under the current industrial trend of light duty with a target to minimize the cost in manufacturing.
It continues to offer the function and solution usually for high-end electric pallet trucks including Can-bus Communication, Fault Code, Battery Discharging Indicator, Drive with the tiller in vertical position, Electric lift and lower control etc.
Warranty:
The warranty period is 24 months from on board date or 2000 working hours whichever comes first.
During warranty, we offer air delivery of the spare parts within 2 working days.Besides that, we have experienced engineers to check the problems and maintenance.
Delivery time:
As a factory, we can offer fast products delivery, standard forklift is 7 working days, Forklift with options is 10-20 working days.
Should you have any questions pls feel free to let us know.
| Item | Model | CTD20-30 | |
| 1 | Power type | ||
| 2 | Drive mode | Standing Type | |
| 3 | Load capacity | Q(Kg) | 2000 |
| 4 | Load center | C(mm) | 500 |
| 5 | Wheel base | Y(mm) | 1468 |
| 6 | Self weight with battery | kg | 1142 |
| 7 | Tire type Front/Rear | Pu solid tire | |
| 8 | Front tire size | ∅×w(mm) | Φ80x70 |
| 9 | Rear tire size | ∅×w(mm) | Φ230x75 |
| 10 | Track width, front wheels | b2(mm) | 1390 |
| 11 | Track width, rear wheels | b3(mm) | 658 |
| 12 | Height-Mast Lowered | h1(mm) | 2095 |
| 13 | Lift Height | h(mm) | 3000 |
| 14 | Maximum height when fork is lifting | h2(mm) | 3975 |
| 15 | Handle Height | h5(mm) | 1476 |
| 16 | Min. Fork height | h3(mm) | 40 |
| 17 | Overall length Pedal Closed | L(mm) | 2155/2570 |
| 18 | Overall width | b1(mm) | 1520 |
| 19 | Fork size | s/e/l(mm) | 40/122/1070 |
| 20 | Width over fork | b5(mm) | 680 |
| 21 | Min ground clearance | m2(mm) | 45 |
| 22 | Min. stacking aisle 1000*1200 pallet(1200 cross fork placement) | Ast(mm) | 2770 |
| 23 | Min. stacking aisle 1000*1200 pallet(1200 placed along forks) | Ast(mm) | 2770 |
| 24 | Min Turning Radius When Pedal Closed | Wa(mm) | 1805 |
| 25 | Max.walking speed | km/h | 5.5/5 |
| 26 | Max. lifting speed | m/s | 0.130/0.075 |
| 27 | Max. lowing speed | m/s | 0.082/0.123 |
| 28 | GradeAbility | ％ | 10/4 |
| 29 | Drive brake | Electromagnetic | |
| 30 | Drive motor | kw | 1.5 |
| 31 | Lift motor | kw | 2.2 |
| 32 | Battery type | ||
| 33 | Battery capacity | V/Ah | 24/210 |
| 34 | Charger | V/A | 24/30 |
| 35 | DriveControllingType | alternating current | |
| 36 | The noise level in the driver's ear according to EN12053 | dB(A) | 75 |
