Name: 1.6m Mast Walkie Straddle Stacker 1T-1.5T Walk Behind Pallet Stacker
Brand: Qingdao Yeaweyda Machinery Co., Ltd
SKU: CTDC10-30
Price: 6,750.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: YEAWEY

Certification: CE ISO，SGS

Model Number: CTDC10-30

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: 6000-7500 usd

Packaging Details: Plastic bag

Delivery Time: 5-8 working days

Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability: 100 units per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                1.6m Mast Walkie Straddle Stacker, Walkie Straddle Stacker 1T, 1.5T Walk Behind Pallet Stacker


Product Name:	1-1.5T Walkie Electric Forklift	Load Capacity:	1-1.5T*600mm
Lift Height:	3000mm Mast	Fork Length:	1370mm
Battery:	24V/100Ah	Service Weight:	1200KG

Product Name:	1-1.5T Walkie Electric Forklift
Load Capacity:	1-1.5T*600mm
Lift Height:	3000mm Mast
Fork Length:	1370mm
Battery:	24V/100Ah
Service Weight:	1200KG

1.6m Mast Walkie Straddle Stacker 1T-1.5T Walk Behind Pallet Stacker

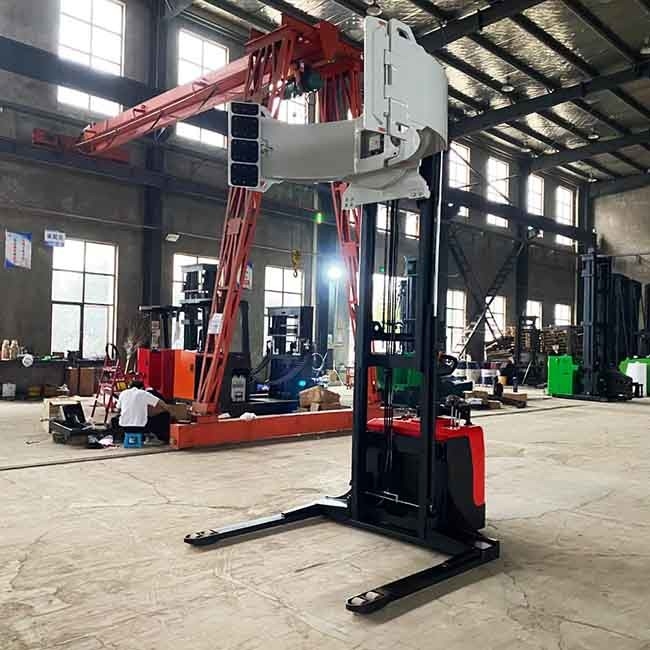

Duplex mast 1.6m mast 1-1.5Ton electric walkie straddle stacker carry paper roll

Main information:
Chinese AC controller

Straddle type
24V/100Ah lead acid battery forklift
Mast type: 2 stage mast
Lift height: 3000mm
Fork: 1220mm

Attachment: paper roll clamp

Robust & Smart Design of Chassis

Strong and compact structure of chassis helps to ensure long life-time of the truck, without sacrificing the truck’s weight or putting under question the strength of frame.

Item	Model		CTDC10-30	CTDC12-30	CTDC15-30
1	Power type		Electric
2	Drive mode		Walkie Type
3	Load capacity	Q(Kg)	1000	1200	1500
4	Load center	C(mm)	500	500	500
5	Wheel base	Y(mm)	1225	1225	1225
6	Self weight with battery	kg	695	713	730
7	Axle load at full load, drive end/bearing end	kg	764/1392	764/1392	764/1392
8	Axle load when unloaded, drive end/bearing end	kg	477/179	477/179	477/179
9	Tire type Front/Rear		Pu solid tire
10	Front tire size	∅×w(mm)	Φ85x90	Φ85x90	Φ85x90
11	Rear tire size	∅×w(mm)	Φ210x70	Φ210x70	Φ210x70
12	Track width, front wheels	b10(mm)	1400	1400	1400
13	Track width, rear wheels	b11(mm)	520	520	520
14	Height-Mast Lowered	h1(mm)	1997	1997	1997
15	Lift Height	h3(mm)	3000	3000	3000
16	Maximum height when fork is lifting	h4(mm)	3617	3617	3617
17	Min.Fork height	h13(mm)	35	35	35
18	Overall length	l1(mm)	1765	1765	1765
19	Overall width	b1(mm)	1530	1530	1530
20	Fork dimensions	s/e/l(mm)	35/100/1070	35/100/1070	35/100/1070
21	Forks Spread	b5(mm)	200-680	200-680	200-680
22	Min ground clearance	m2(mm)	43	43	43
23	Min. stacking aisle 1000*1200 pallet(1200 cross fork placement)	Ast(mm)	2400	2400	2400
24	Min. Turning radius	Wa(mm)	1430	1430	1430
25	Max.walking speed	km/h	4/3.5	4/3.5	4/3.5
26	Max. lifting speed	m/s	0.101/0.09	0.101/0.09	0.101/0.09
27	Max. lowing speed	m/s	0.111/0.130	0.111/0.130	0.111/0.130
28	Grade Ability	％	6/3	6/3	6/3
29	Drive brake		Electromagnetic
30	Drive motor	kw	0.75	0.75	0.75
31	Lift motor	kw	2.2	2.2	2.2
32	Battery type		Lead acid	Lead acid	Lead acid
33	Battery capacity	V/Ah	2x12/80	2x12/80	2x12/80
34	Charger	V/A	24V/10A	24V/10A	24V/10A
35	DriveControllingType		DC	DC	DC
36	The noise level in the driver's ear according to EN12053	dB(A)	75	75	75

1.6m Mast Walkie Straddle Stacker 1T-1.5T Walk Behind Pallet Stacker 0

1.6m Mast Walkie Straddle Stacker 1T-1.5T Walk Behind Pallet Stacker 5
