Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CTDC10-30
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 6000-7500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
1-1.5T Walkie Electric Forklift |
Load Capacity: |
1T-1.5T*600mm |
Lift Height: |
3000mm Mast |
Fork Length: |
1370mm |
Battery: |
24V/100Ah |
Service Weight: |
695-730 |
Product Name: |
1-1.5T Walkie Electric Forklift |
Load Capacity: |
1T-1.5T*600mm |
Lift Height: |
3000mm Mast |
Fork Length: |
1370mm |
Battery: |
24V/100Ah |
Service Weight: |
695-730 |

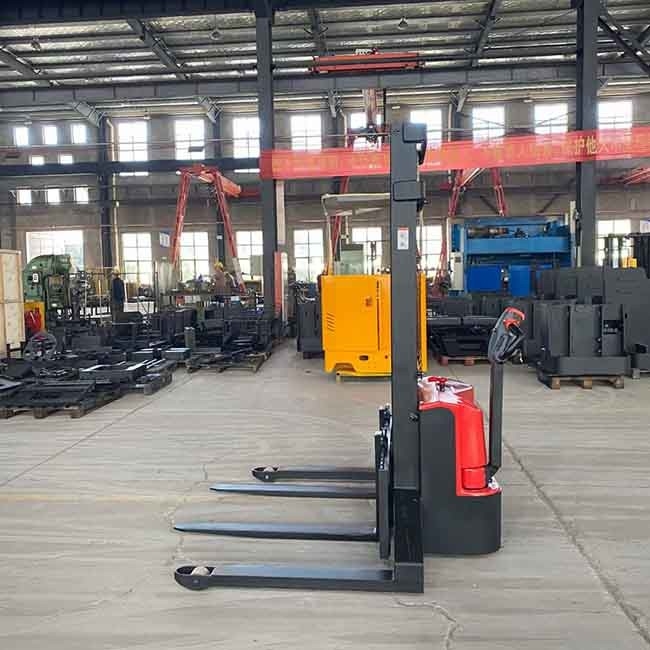

Duplex mast 3m mast 1-1.5Ton electric walkie straddle stacker warehouse use lead acid battery
Main information:
Chinese AC controller
Straddle type
24V/100Ah lead acid battery forklift
Mast type: 2 stage mast
Lift height: 3000mm
Fork: 1220mm
The structural components are welded automatically, with beautiful and consistent welds; Foldable metal cover, securely fastened, durable, and easy to maintain;
Optional balance wheels can be installed to improve driving stability.
| Item | Model | CTDC10-30 | CTDC12-30 | CTDC15-30 | |
| 1 | Power type | Electric | |||
| 2 | Drive mode | Walkie Type | |||
| 3 | Load capacity | Q(Kg) | 1000 | 1200 | 1500 |
| 4 | Load center | C(mm) | 500 | 500 | 500 |
| 5 | Wheel base | Y(mm) | 1225 | 1225 | 1225 |
| 6 | Self weight with battery | kg | 695 | 713 | 730 |
| 7 | Axle load at full load, drive end/bearing end | kg | 764/1392 | 764/1392 | 764/1392 |
| 8 | Axle load when unloaded, drive end/bearing end | kg | 477/179 | 477/179 | 477/179 |
| 9 | Tire type Front/Rear | Pu solid tire | |||
| 10 | Front tire size | ∅×w(mm) | Φ85x90 | Φ85x90 | Φ85x90 |
| 11 | Rear tire size | ∅×w(mm) | Φ210x70 | Φ210x70 | Φ210x70 |
| 12 | Track width, front wheels | b10(mm) | 1400 | 1400 | 1400 |
| 13 | Track width, rear wheels | b11(mm) | 520 | 520 | 520 |
| 14 | Height-Mast Lowered | h1(mm) | 1997 | 1997 | 1997 |
| 15 | Lift Height | h3(mm) | 3000 | 3000 | 3000 |
| 16 | Maximum height when fork is lifting | h4(mm) | 3617 | 3617 | 3617 |
| 17 | Min.Fork height | h13(mm) | 35 | 35 | 35 |
| 18 | Overall length | l1(mm) | 1765 | 1765 | 1765 |
| 19 | Overall width | b1(mm) | 1530 | 1530 | 1530 |
| 20 | Fork dimensions | s/e/l(mm) | 35/100/1070 | 35/100/1070 | 35/100/1070 |
| 21 | Forks Spread | b5(mm) | 200-680 | 200-680 | 200-680 |
| 22 | Min ground clearance | m2(mm) | 43 | 43 | 43 |
| 23 | Min. stacking aisle 1000*1200 pallet(1200 cross fork placement) | Ast(mm) | 2400 | 2400 | 2400 |
| 24 | Min. Turning radius | Wa(mm) | 1430 | 1430 | 1430 |
| 25 | Max.walking speed | km/h | 4/3.5 | 4/3.5 | 4/3.5 |
| 26 | Max. lifting speed | m/s | 0.101/0.09 | 0.101/0.09 | 0.101/0.09 |
| 27 | Max. lowing speed | m/s | 0.111/0.130 | 0.111/0.130 | 0.111/0.130 |
| 28 | Grade Ability | ％ | 6/3 | 6/3 | 6/3 |
| 29 | Drive brake | Electromagnetic | |||
| 30 | Drive motor | kw | 0.75 | 0.75 | 0.75 |
| 31 | Lift motor | kw | 2.2 | 2.2 | 2.2 |
| 32 | Battery type | Lead acid | Lead acid | Lead acid | |
| 33 | Battery capacity | V/Ah | 2x12/80 | 2x12/80 | 2x12/80 |
| 34 | Charger | V/A | 24V/10A | 24V/10A | 24V/10A |
| 35 | DriveControllingType | DC | DC | DC | |
| 36 | The noise level in the driver's ear according to EN12053 | dB(A) | 75 | 75 | 75 |
