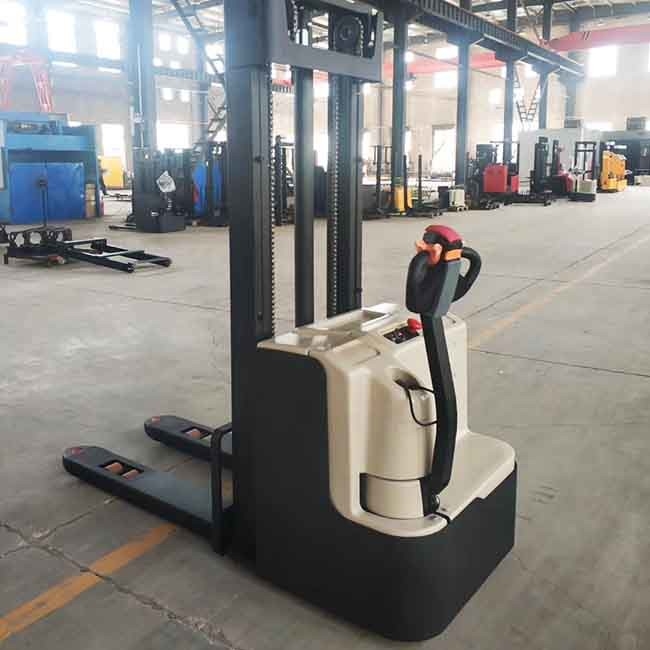

3m Mast 2Ton Electric Walkie Stacker Warehouse Fully Powered Stackers

Product Details

Place of Origin: China

Brand Name: YEAWEY

Certification: CE ISO,SGS

Model Number: CDD20-30

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: 6000-7500 usd

Packaging Details: Plastic bag

Delivery Time: 5-8 working days

Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability: 100 units per month

Get Best Price
Highlight:

2Ton Electric Walkie Stacker

,

3m Mast Electric Walkie Stacker

,

Warehouse Fully Powered Stackers

Product Name:
2T Walkie Electric Forklift
Load Capacity:
2000 Kgs*600mm
Lift Height:
3000mm Mast
Fork Length:
1370mm
Battery:
24V/100Ah
Service Weight:
850KG
Product Name:
2T Walkie Electric Forklift
Load Capacity:
2000 Kgs*600mm
Lift Height:
3000mm Mast
Fork Length:
1370mm
Battery:
24V/100Ah
Service Weight:
850KG
3m Mast 2Ton Electric Walkie Stacker Warehouse Fully Powered Stackers

Duplex mast 3m mast 2Ton electric walkie stacker warehouse use lead acid battery



Main information:
Chinese AC controller
24V/100Ah lead acid battery forklift
Mast type: 2 stage mast
Lift height: 3000mm
Fork: 1370mm
Warranty:
The warranty period is 24 months from on board date or 2000 working hours whichever comes first.
During warranty, we offer air delivery of the spare parts within 2 working days.Besides that, we have experienced engineers to check the problems and maintenance.
Delivery time:
As a factory, we can offer fast products delivery, standard forklift is 7 working days, Forklift with options is 10-20 working days.
Should you have any questions pls feel free to let us know.

Item Model   CDD20D-30
1 Power type   Electric
2 Operation mode   Walking type
3 Rated load kg 2000
4 Load center distance mm 500
5 Tire type (front/ rear)   Polyurethane
6 Number of tires   4/1X+1
7 Mast type   Duplex mast
8 Standard lifting height mm 3000
9 Height of mast closed mm 2080
10 Mast height during lifting mm 3565
11 Minimum ground clearance of cargo depot mm 85
12 Overall length mm 2030
13 Wheelbase mm 1430
14 Overall width mm 850
15 Track width (front/ rear) mm 490/545
16 Fork specifications mm 1150*190*65
17 Fork side outer distance mm 680/560
18 Turning radius mm 1645
19 Channel width (1200x1000 pallets, 1200 horizontal) mm 2515
20 Travel speed (full load/ no load) km/h 4.0/4.5
21 Lifting speed (full load/ no load) mm/s 80/125
22 Descent speed (full load/ no load) mm/s 160/105
23 Gradient (full load/ no load) % 45453
24 Drive motor power kw 1.5
25 Type of lifting motor   DC
26 Lifting motor power kw 2.2/3.0
27 Battery voltage/ capacity v/ah 24/100
28 Battery weight kg 75
29 Service weight (incl. battery) kg 850
30 Steering type   Manual operation
31 Parking brake type   Electromagnetism
32 Parking brake operation mode   Handle operation
