Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CBD30
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 6000-7500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
3Ton Electric Pallet Truck |
Lift Capacity: |
3000kg*600mm |
Battery: |
Lithium Or Lead Acid Battery |
Fork Width: |
205mm |
Fork Length: |
1220-2200mm |
Attachment: |
Electric Scales |
Product Name: |
3Ton Electric Pallet Truck |
Lift Capacity: |
3000kg*600mm |
Battery: |
Lithium Or Lead Acid Battery |
Fork Width: |
205mm |
Fork Length: |
1220-2200mm |
Attachment: |
Electric Scales |

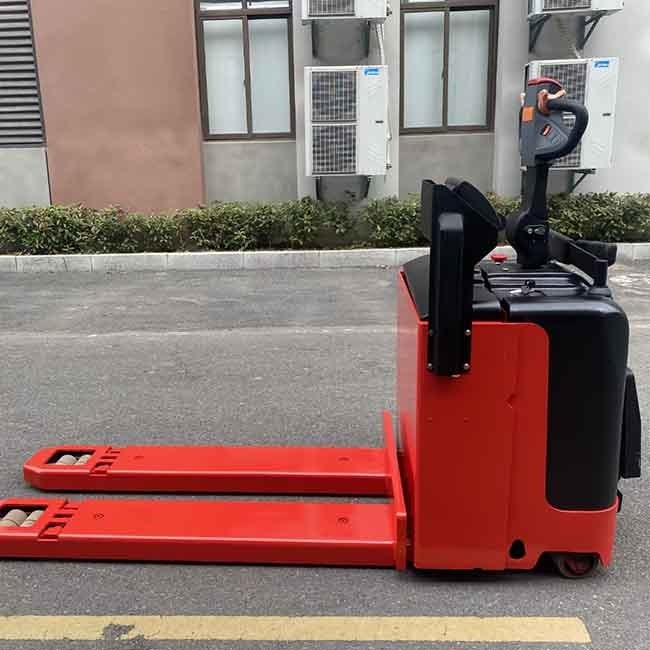

3000kgs stand type 3.5T electric pallet truck with electric scales
Main information:
Load capacity: 3000kgs
Chinese FANJI controller
Lead acid or Lithium battery
AC motors
Lifting height 205mm
PU tires
Attached with electric scales
Ergonomic, Compact and Safe Long Tiller design
High Performance Maintenance-free AC Drive Unit
| 1 | Model | CBD30Ⅲ | |
| 2 | Power | Battery | |
| 3 | Driving mode | Stand | |
| 4 | Steering form | Electric | |
| 5 | Load center | Q(kg) | 3000 |
| 6 | Load capacity | C(mm) | 600 |
| 7 | Wheel base | Y(mm) | 1380 |
| 8 | Self weight with battery | kg | 710 |
| 9 | Tire type | PU | |
| 10 | Front tire size | ∅×w(mm) | φ80*80 |
| 11 | Rear tire size | ∅×w(mm) | φ230*75 |
| 12 | Balance tire size | ∅×w(mm) | φ125*50 |
| 13 | Max. lifting height | H(mm) | 205 |
| 14 | Mast lowed fork height | H1(mm) | 85 |
| 15 | Fork overall width | S1(mm) | 685/540 |
| 16 | Overall length(W/WT padel) | L(mm) | 1825/2240 |
| 17 | Overall width | S(mm) | 760 |
| 18 | Fork size | s/e/l(mm) | 55/175/1150/1220 |
| 19 | Right angle stacking channel (1200x1000mm)(W/WT padel) | Ast(mm) | 2220/2620 |
| 20 | Min Turning Radius When Pedal Closed | Wa(mm) | 1670/2070 |
| 21 | Max.walking speed | km/h | 6/5 |
| 22 | Max. lifting speed | m/s | 0.043/0.040 |
| 23 | Max. lowing speed | m/s | 0.035/0.445 |
| 24 | GradeAbility | ％ | 10/6 |
| 25 | Drive brake | Electromagnetic | |
| 26 | Drive motor | KW | 1.5 |
| 27 | Lift motor | KW | 0.8 |
| 28 | Battery type | Lead acid | |
| 29 | Battery capacity | V/Ah | 24V210Ah |
| 30 | Charger | V/Ah | 24V/30Ah |
| 31 | Drive Controlling Type | AC |
