Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CBD100
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 6000-7500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
10Ton Pallet Truck Standard Model |
Lift Capacity: |
10000kg |
Battery: |
Lion Battery Or Lead Acid Battery |
Fork Width: |
200mm |
Fork Length: |
1200MM |
Charger: |
48V/50AH, Three Hours |
Product Name: |
10Ton Pallet Truck Standard Model |
Lift Capacity: |
10000kg |
Battery: |
Lion Battery Or Lead Acid Battery |
Fork Width: |
200mm |
Fork Length: |
1200MM |
Charger: |
48V/50AH, Three Hours |

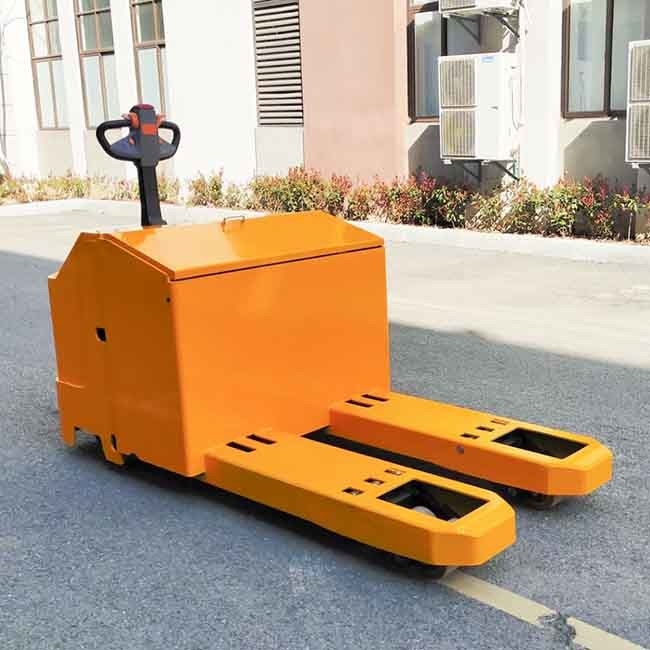

10000kgs stand type 10T electric pallet stacker Mini Walk Electric Hydraulic Pallet Truck
Main information:
Load capacity: 10000kgs*600mm
Chinese AC controller
Lead acid battery or Lithium battery
AC motors
Lifting height 120mm
PU tires
Fork 1200mm
| Name | Electric pallet truck | |
| Model | CBD100 | |
| Load | kg | 10000 |
| Load center | mm | 600 |
| Min. ground clearance | mm | 145 |
| Max. ground clearance | mm | 265 |
| Control form | Side standing | |
| Vehicle width | mm | 1250 |
| Total length of vehicle body | mm | 2220 |
| Fork outer width | mm | 800 |
| Maximum ground clearance of steering wheel | mm | 1275 |
| Turning radius | mm | 2015 |
| Fork size | mm | 1200x340 |
| Right angle stacking channel | mm | 2720 (pallet size 1000*1000) |
| Traveling speed (loaded/ unloaded) | km/h | ‘5/6 |
| Lifting motor (S3-15%) | kw | 4.5 |
| Travel motor (S2-60min) | kw | 4 |
| Steering motor | kw | 0.5 |
| Braking form | Electromagnetic braking | |
| Steering form | Electronic steering | |
| Controller | CURTIS | |
| Body weight | kg | 1700 |
| Battery weight | kg | 500 |
| Climbing gradient (full load/ no load) | % | 3/8 |
| Battery capacity | v/ah | 48/300 |
| Charger | v/ah | 48/50 |
| Number of tires, front/ rear (X= drive wheel) | 4/1X+8 | |
| Drive wheel | mm | Φ343 *135 |
| Bearing wheel | mm | Φ125*100 |
| Auxiliary wheel | mm | Φ150*50 |
| Lifting speed (full load/ no load) | mm/s | 40/54 |
| Falling speed (full load/ no load) | mm/s | 55/45 |
| Tire type | Polyurethane | |
| Battery replacement method | Side pull type |
