Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CBD15
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 6000-7500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
1.5T-2Ton Electric Pallet Truck |
Load Capacity: |
1500 Kgs |
Load Center: |
600mm |
Lift Height: |
120mm |
Width: |
1.15m |
Fork Size: |
1150X155X75MM |
Service Weight: |
211KG |
Tires: |
Solid PU |
Product Name: |
1.5T-2Ton Electric Pallet Truck |
Load Capacity: |
1500 Kgs |
Load Center: |
600mm |
Lift Height: |
120mm |
Width: |
1.15m |
Fork Size: |
1150X155X75MM |
Service Weight: |
211KG |
Tires: |
Solid PU |

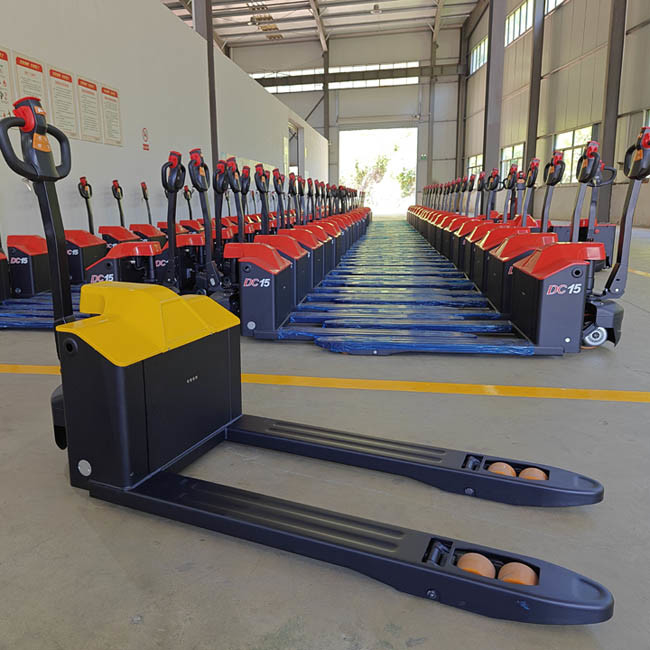

1.5 T 1500kg Pollution-Free Small Mini Walk Electric Hydraulic Pallet Truck
Main information:
Load capacity: 1500-2000kgs*500mm
Chinese controller
DC motors
Lifting height 120mm
PU tires
Fork 1220mm
The walk Electric Pallet Truck is the ideal choice for material transportation in short-distance or trailer loading/unloading.
It is developed based on traditional pallet truck targeting to markets such as North American market. It is equipped with AC drive unit, Curtis Controller and maintenance-free battery and built-in charger.
1)Ergonomic, Compact and Safe Long Tiller design
2)High Performance Maintenance-free AC Drive Unit
3)Bigger Ground Clearance for Tough-ground Applications
4)Competitive Cost with Excellent Performance
| Model | CBD15-Y | CBD20Y | |||||
| Operating type | Walkie | ||||||
| Load capacity | kg | 1500 | 2000 | ||||
| Load center | mm | 600 | |||||
| Wheel base | mm | 1288 | |||||
| Wheels type | PU | ||||||
| Driving wheel size | mm | Φ210X70 | |||||
| Bearing wheel size | mm | Φ84×70 | |||||
| Balance wheel size | mm | Φ70×30(Optional) | |||||
| Min.fork lowered height | mm | 85±3 | |||||
| Max.fork lifting height | mm | 205 | |||||
| Max.lifting height | mm | 120 | |||||
| Outside width between forks | mm | 560/685 | |||||
| Inside width between forks | mm | 250/375 | |||||
| Fork length | mm | 1150/1200 | |||||
| Fork width | mm | 155 | |||||
| Fork thickness | mm | 75 | |||||
| Overall length | mm | 1700/1750 | |||||
| Overall width | mm | 677 | |||||
| Overall height(With handle) | mm | 1245 | |||||
| Overall height(Without handle) | mm | 615 | |||||
| Min.Turning radius | mm | 1441/1491 | |||||
| Min.Aisle width for pallets 800×1200 | mm | 1794/1844 | |||||
| Min.Aisle width for pallets 1000×1200 | mm | 1828/1878 | |||||
| Travel speed,laden/unladen | km/h | 4/4.5 | |||||
| Lift speed,laden/unladen | mm/s | 35/40 | |||||
| Lowering speed,laden/unladen | mm/s | 65/60 | |||||
| Gradeability,laden/unladen | % | 6/16 | |||||
| Service brake type | Electric | ||||||
| Traction motor rating at S2 60 min | kW | DC 0.63 | DC 0.9 | ||||
| 15% Lift motor rating at S3 15% | kW | DC 0.8 | |||||
| Battery voltage / capacity | V/Ah | 2X12/85(VRLA) | 24/25(LFP) | 24/30(LFP) | 2X12/85(VRLA) | 24/25(LFP) | 24/30(LFP) |
| Charger specification | V/A | 24/10 | 24/10 | 24/10 | 24/10 | ||
| Battery weight(±5%) | kg | 2X24 | 7.5 | 10 | 2X24 | 7.5 | 10 |
| Service weight with battery | kg | 203 | 163 | 166 | 211 | 171 | 174 |
| Sound level | dB(A) | ≤75 | |||||
| Steering type | Mechanical | ||||||
| Drive control type | DC | ||||||
