Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CPD10
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 4000-5000 usd
Packaging Details: Plastic bag
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
1 T Electric Forklift |
Load Capacity: |
1000kgs |
Battery Capacity: |
48V/160Ah |
Lift Height: |
3000mm Container Mast |
Fork Size: |
1070×122×35mm |
Service Weight: |
1720 Kg |
Tires: |
Solid Tyres |
Product Name: |
1 T Electric Forklift |
Load Capacity: |
1000kgs |
Battery Capacity: |
48V/160Ah |
Lift Height: |
3000mm Container Mast |
Fork Size: |
1070×122×35mm |
Service Weight: |
1720 Kg |
Tires: |
Solid Tyres |

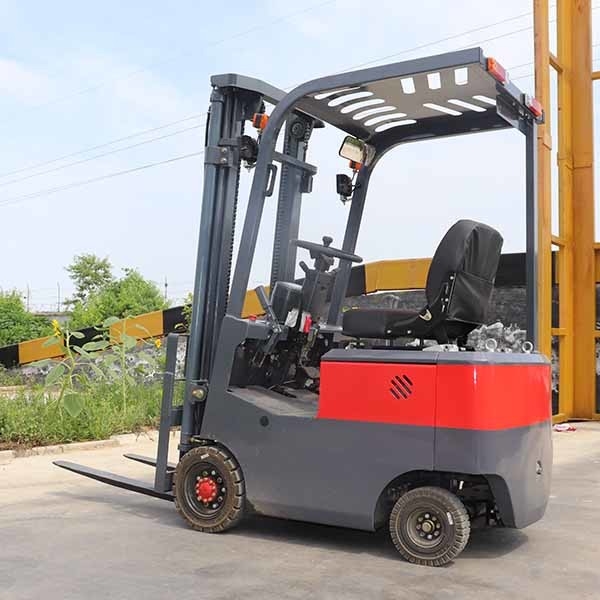

1000kg CPD10 1 T electric forklift truck double front wheels container mast
Main information:
Load capacity: 1000kg*500mm
Lead acid battery 48V/160Ah
Chinese AC controller
AC lift motor and AC drive motor
Automatic transmission
2 stage 3m mast
Solid tires
Fork 1220mm
Attachments: according to customers' requirements.
ADVANTAGES
The design of Yeawey electric forklift is based on the original G series with combination of the advantages to meet the light and medium applications with great comfort and efficiency. The truck is optional to equipped with either Lead-acid battery or Li-ion battery. With lowered center of gravity and overhead guard, the truck is ideal to be used in limited spaces such as entering elevator.
Curtis controller
The trucks are equipped with Curtis controllers.CAN-bus technology makes the diagnostic and trouble shooting easier.The use of proved and certified components helps to ensure the conformity to international safety standards with all the supporting documents available as required by law.
AC maintenance-free drive motor
Adopt maintenance-free and powerful AC drive motor. Compared with traditional DC motors, our AC motors do not need to replace Carbon brushes. Equipped with speed sensor and temperature sensor, greatly improving the AC motor’s reliability.
Seat safety power off switch(Optional)
When the driver leaves the seat, the forklift cuts off electronic power automatically, the mast can not be lifted or lowered. At the same time, the forklift can not move.Avoid the occurrence of accidental contact accident and protect the safety of the operator at any time.
Ergonomically Positioned Pedals
Based on human engineering, the accelerator, brake and inching pedals are optimally positioned for operator's convenience and reduce operator's fatigue.
Lower Entrance Height
The lower entrance height ensures easy and safe access for the operator. Wide open step offers convenience and safety when entering and exiting truck.
| Item | Model | CPD10 | |
| 1 | Power type | Battery | |
| 2 | Rated load | KG | 1000 |
| 3 | Load center distance | mm | 400 |
| 4 | Driving type | Seat | |
| 5 | Length With fork | mm | 2592 |
| 6 | Length Without fork | 1652 | |
| 7 | Whole Width | 940 | |
| 8 | Height no lifting frame | 2040 | |
| 9 | Top frame height | 1950 | |
| 10 | Max Height working | 3820 | |
| 11 | Distance from seat to top light | 970 | |
| 12 | Wheel base | 1020 | |
| 13 | Front overhang | 327 | |
| 14 | Back overhang | 313 | |
| 15 | Front wheel tread | 840 | |
| 16 | Back wheel tread | 741 | |
| 17 | Min Floor clearance | 90 | |
| 18 | Max lifting height | 3000 | |
| 19 | Free lifting height | 0 | |
| 20 | Fork changing | 820/190 | |
| 21 | Min Turning radius(outside) | 1800 | |
| 22 | Min Right angle aisle width | 2000 | |
| 23 | Frame angle (front/back) | (°) | 6°/12° |
| 24 | Max lifting speed without goods | mm/s | 250 |
| 25 | Max lifting speed with full goods | 220 | |
| 26 | Max speed without goods | Km/h | 12 |
| 27 | Max speed with full goods | 11 | |
| 28 | Max climbing angle | ％ | ≤10 |
| 29 | Self weight | Kg | 1720 |
| 30 | Driving Wheel | 2x/2 | |
| 31 | Tyre model | Solid tyre | |
| 32 | Front Tyre | 15x4 1/2-8 | |
| 33 | Rear Tyre | 3.50-5 | |
| 34 | Hand Brake | Hydraulic Pedal | |
| 35 | Brake type | M-Hand | |
| 36 | Lead aicd Battery Volt/ capacity | V/Ah | 48V/160 |
| 37 | Lithium Battery Volt/ capacity | V/Ah | 48V/105 |
| 38 | Driving motor power | Kw | 4 |
| 39 | Pump power | 4 |
