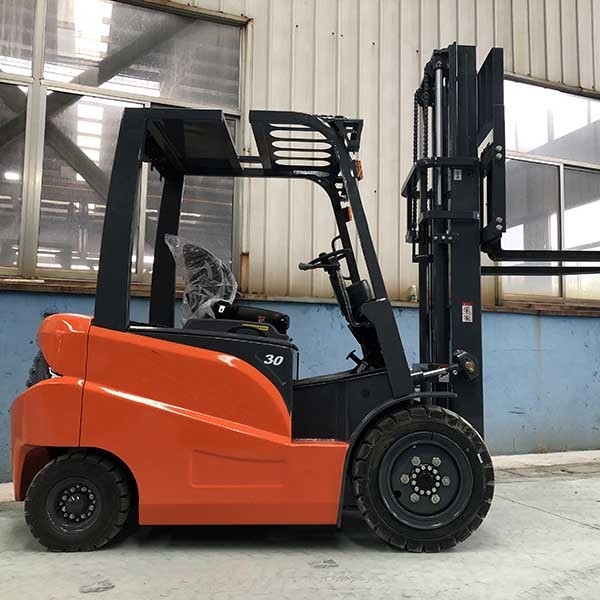

CPD30 3 Ton Electric Forklift ZAPI Controller Lead Acid Battery Forklift

Product Details

Place of Origin: China

Brand Name: YEAWEY

Certification: CE ISO,SGS

Model Number: CPD30

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: 4000-5000 usd

Packaging Details: Plastic bag

Delivery Time: 15-20 working days

Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability: 100 units per month

Get Best Price
Highlight:

CPD30 3 Ton Electric Forklift

,

ZAPI Controller Lead Acid Battery Forklift

,

CPD30 Lead Acid Battery Forklift

Product Name:
3.0T Acid Battery Lift Truck
Load Capacity:
3000 Kgs
Battery Capacity:
80V/300Ah
Lift Height:
4.5m Container Mast Type
Fork Size:
1220×122×45mm
Service Weight:
4000 Kg
Product Name:
3.0T Acid Battery Lift Truck
Load Capacity:
3000 Kgs
Battery Capacity:
80V/300Ah
Lift Height:
4.5m Container Mast Type
Fork Size:
1220×122×45mm
Service Weight:
4000 Kg
CPD30 3 Ton Electric Forklift ZAPI Controller Lead Acid Battery Forklift

3000 kgs CPD30 3 Ton acid battery forklift ZAPI controller AC motor



 Main information:
Load capacity: 3000kg*500mm
Lead acid battery 80V/300Ah
ZAPI controller
AC lift motor and AC drive motor
Automatic transmission
3 stage 4.5m mast
Solid tires
Fork 1220mm
Attachments: according to customers' requirements.

ADVANTAGES
The design of Yeawey electric forklift is based on the original G series with combination of the advantages to meet the light and medium applications with great comfort and efficiency. The truck is optional to equipped with either Lead-acid battery or Li-ion battery. With lowered center of gravity and overhead guard, the truck is ideal to be used in limited spaces such as entering elevator.

Curtis controller
The trucks are equipped with Curtis controllers.CAN-bus technology makes the diagnostic and trouble shooting easier.The use of proved and certified components helps to ensure the conformity to international safety standards with all the supporting documents available as required by law.

AC maintenance-free drive motor
Adopt maintenance-free and powerful AC drive motor. Compared with traditional DC motors, our AC motors do not need to replace Carbon brushes. Equipped with speed sensor and temperature sensor, greatly improving the AC motor’s reliability.

High performance transmission:
Transmission system uses a horizontal fan-shaped drive axle arranged in parallel with a large transmission ratio. The battery is installed at the bottom of the frame.Traveling motor adopts AC maintenance-free motor.

Adopt car control mode:

Suspended driving brake system, step-less speed change.Finding driving pleasure at work.



Durable steer axle:

Steer axle shock absorption designed to protect the vehicle and prolong the service life of the truck.


Warranty:
The warranty period is 24 months from on board date or 2000 working hours whichever comes first.
During warranty, we offer air delivery of the spare parts within 2 working days.Besides that, we have experienced engineers to check the problems and maintenance.
Delivery time:
As a factory, we can offer fast products delivery, standard forklift is 7 working days, Forklift with options is 10-20 working days.
Should you have any questions pls feel free to let us know.

Item Model   CPD30
1 Power type   Battery
2 Rated load KG 3000
3 Load center distance mm 500
4 Driving type   Seat
5 Length With fork mm 3850
6 Length Without fork 2780
7 Whole Width 1270
8 Height no lifting frame 2050
9 Top frame height 2205
10 Max Height working 4055
11 Distance from seat to top light 972
12 Wheel base 1830
13 Front overhang 475
14 Back overhang 490
15 Front wheel tread 996
16 Back wheel tread 968
17 Min Floor clearance 115
18 Max lifting height 4500
19 Free lifting height 1500
20 Fork changing 250~1100
21 Min Turning radius(outside) 2500
22 Min Right angle aisle width 4275
23 Frame angle (front/back) (°) 5/10
24 Max lifting speed without goods mm/s 350
25 Max lifting speed with full goods 280
26 Max speed without goods Km/h 15
27 Max speed with full goods 14
28 Max climbing angle 15
29 Self weight Kg 4000
30 Driving Wheel   2/2
31 Tyre model   pneumatic tyre
32 Front Tyre   28x9-15
33 Rear Tyre   18x7-8
34 Hand Brake   Hydraulic Pedal
35 Brake type   M-Hand
36 Lead aicd Battery Volt/ capacity V/Ah 80/300
37 Lithium Battery Volt/ capacity V/Ah 80/206
38 Driving motor power Kw 10
39 Pump power 12
