Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CCD-3C
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 4000-5000 usd
Packaging Details: Plastic bag
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |

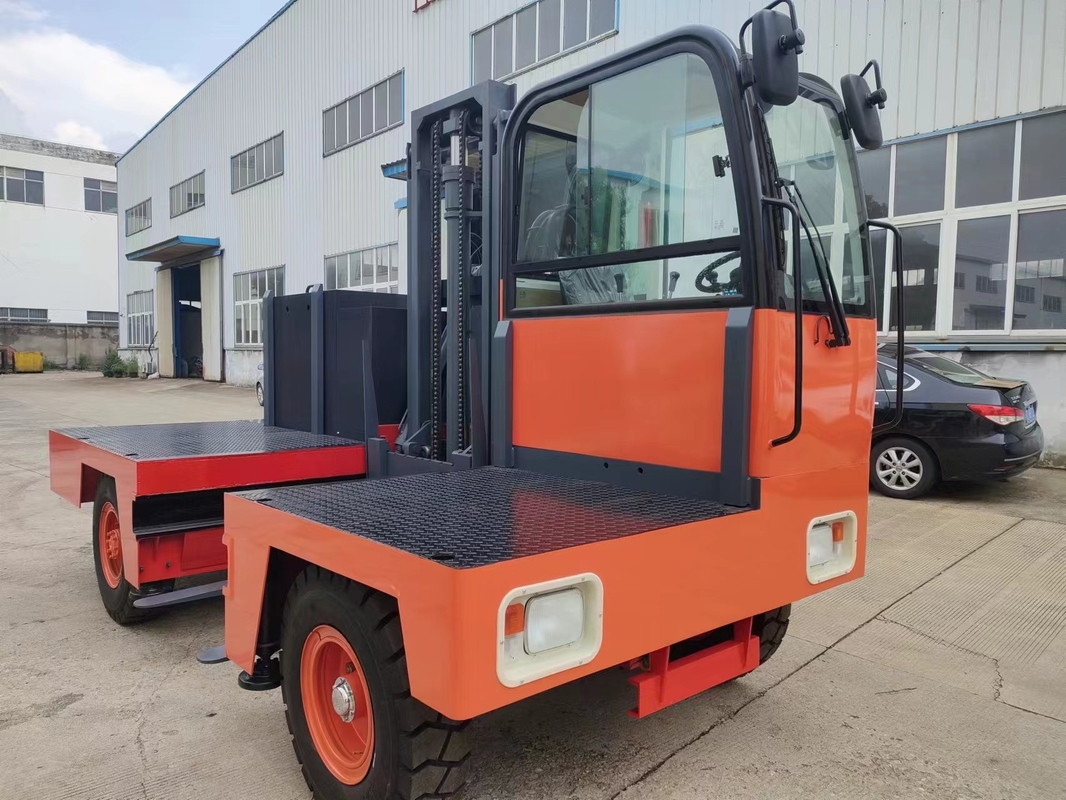

3.0Ton Lead Acid Battery Sideloader Forklift |
Load Capacity: |
3000 Kgs |
Battery Capacity: |
80V/300Ah |
Lift Height: |
2 Stage 3.5m Mast |
Fork Size: |
1220×122×45mm |
Service Weight: |
5300 Kg |
Product Name: |
3.0Ton Lead Acid Battery Sideloader Forklift |
Load Capacity: |
3000 Kgs |
Battery Capacity: |
80V/300Ah |
Lift Height: |
2 Stage 3.5m Mast |
Fork Size: |
1220×122×45mm |
Service Weight: |
5300 Kg |
3.0Ton Lithium Battery Sideloader Forklift
Main information:
Load capacity: 3000kg*600mm
Lead acid battery 80V/540Ah
Chinese AC controller
AC lift motor and AC drive motor
Automatic transmission
2 stage 3.5m mast
Solid tires
Fork 1220mm
Attachments: according to customers' requirements.
Curtis controller
The trucks are equipped with Curtis controllers.CAN-bus technology makes the diagnostic and trouble shooting easier.The use of proved and certified components helps to ensure the conformity to international safety standards with all the supporting documents available as required by law.
AC maintenance-free drive motor
Adopt maintenance-free and powerful AC drive motor. Compared with traditional DC motors, our AC motors do not need to replace Carbon brushes. Equipped with speed sensor and temperature sensor, greatly improving the AC motor’s reliability.
High performance transmission:
Transmission system uses a horizontal fan-shaped drive axle arranged in parallel with a large transmission ratio. The battery is installed at the bottom of the frame.Traveling motor adopts AC maintenance-free motor.
Comfortable experience
The forklift was ergonomically designed and it enables a wide view and a large operation space. The dashboard are designed to have clear and
intuitive graphic interfaces.
| Model | CCD-3C | ||
| Carrying capacity (load centre 0.6m) | 3000kg | ||
| Max.lift weight | 3.5m | ||
| Fork free lift height | 0.3m | ||
| Max.lift speed | 0.25m/s | ||
| Max.traveling speed | 13/15km/h | ||
| Fork tilt anger (front/rear) | 5°/3° | ||
| Min.turning radius | 4.3m | ||
| Gradeability (laden) | 13% | ||
| Min.ground clearance (laden) | 0.17m | ||
| Length | 4.45m | ||
| Width | 2.03m | ||
| Overall | Fork in the lowest position | 2.7m | |
| dimension | Height | Fork in the highest position | 4.66m |
| Wheel base | 2.46m | ||
| Truck width | 1.6m | ||
| Platform height (laden) | 0.92m | ||
| Platform width | 1.2m | ||
| Fork length | 1.2m | ||
| Max.fork spacing | 0.94m | ||
| Tyres size | 8.25-15-14PR | ||
| Weight (unladen) | 5300kg | ||
| Volts AH battery | 80V/540Ah | ||
| Traction motor | 16.6kw | ||
| Pump motor | 13.5kw | ||
| Control system | lmpulse | ||
| Intelligent charging machine | 80V70A | ||
