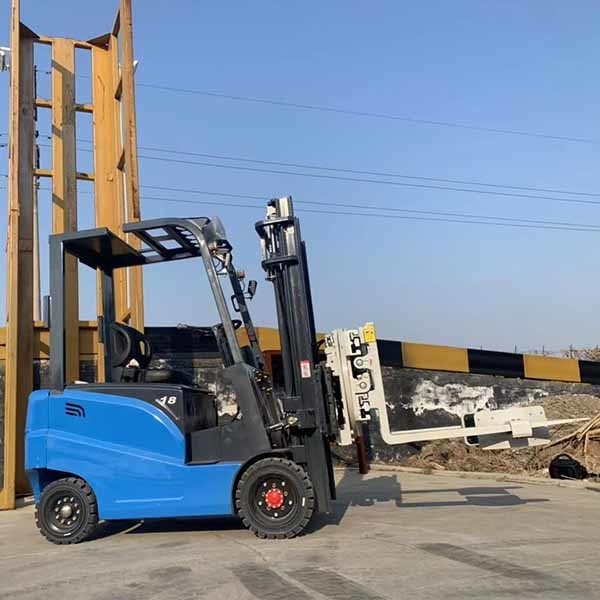

CPD18 Lead Acid Battery Forklift 1800kgs Small Electric Forklift

Product Details

Place of Origin: China

Brand Name: YEAWEY

Certification: CE ISO,SGS

Model Number: CPD18

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: 4000-5000 usd

Packaging Details: Plastic bag

Delivery Time: 15-20 working days

Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability: 100 units per month

Get Best Price
Highlight:

CPD18 Lead Acid Battery Forklift

,

1800kgs Small Electric Forklift

,

Lead Acid Battery Forklift 1800kgs

Product Name:
1.8 T Electric Lift Truck
Load Capacity:
1.8 Ton
Battery Capacity:
48.0V/235Ah
Lift Height:
3000mm Wide View Mast
Fork Size:
1520×120×40mm
Service Weight:
2720 Kg
Product Name:
1.8 T Electric Lift Truck
Load Capacity:
1.8 Ton
Battery Capacity:
48.0V/235Ah
Lift Height:
3000mm Wide View Mast
Fork Size:
1520×120×40mm
Service Weight:
2720 Kg
CPD18 Lead Acid Battery Forklift 1800kgs Small Electric Forklift

1800 kgs CPD18 1.8 Ton forklift lead acid battery AC motor container mast



Main information:
Load capacity: 1800kg*500mm
Lead acid battery 48V/235Ah
Chinese AC controller
AC lift motor and AC drive motor
Automatic transmission
2 stage 3m mast
Solid
Fork 1220mm
Attachments: according to customers' requirements.

ADVANTAGES
The design of Yeawey electric forklift is based on the original G series with combination of the advantages to meet the light and medium applications with great comfort and efficiency. The truck is optional to equipped with either Lead-acid battery or Li-ion battery. With lowered center of gravity and overhead guard, the truck is ideal to be used in limited spaces such as entering elevator.

Curtis controller
The trucks are equipped with Curtis controllers.CAN-bus technology makes the diagnostic and trouble shooting easier.The use of proved and certified components helps to ensure the conformity to international safety standards with all the supporting documents available as required by law.

AC maintenance-free drive motor
Adopt maintenance-free and powerful AC drive motor. Compared with traditional DC motors, our AC motors do not need to replace Carbon brushes. Equipped with speed sensor and temperature sensor, greatly improving the AC motor’s reliability.

High performance transmission:
Transmission system uses a horizontal fan-shaped drive axle arranged in parallel with a large transmission ratio. The battery is installed at the bottom of the frame.Traveling motor adopts AC maintenance-free motor.

Stylish exterior

Following the traditional design of HK series forklifts, it has simple and

elegant vehicle body, and presenting both fashion and steadiness as a whole.



Quite low vibration design

The hydraulic system uses a low-noise gear pump and full hydraulic power steering. Quiet and comfortable operation. Shock absorbing steer axle to protect the vehicle system and prolong the service life of the forklift.



Adopt car control mode:

Suspended driving brake system, step-less speed change.Finding driving pleasure at work.





Item Model   CPD18
1 Power type   Battery
2 Rated load KG 1800
3 Load center distance mm 500
4 Driving type   Seat
5 Length With fork mm 3190
6 Length Without fork 2120
7 Whole Width 1010
8 Height no lifting frame 1960
9 Top frame height 2070
10 Max Height working 4050
11 Distance from seat to top light 1000
12 Wheel base 1260
13 Front overhang 350
14 Back overhang 365
15 Front wheel tread 1010
16 Back wheel tread 830
17 Min Floor clearance 130
18 Max lifting height 3000
19 Free lifting height 40
20 Fork changing 1040/200
21 Min Turning radius(outside) 2100
22 Min Right angle aisle width 3850
23 Frame angle (front/back) (°) 6/12
24 Max lifting speed without goods mm/s 300
25 Max lifting speed with full goods 260
26 Max speed without goods Km/h 14
27 Max speed with full goods 13
28 Max climbing angle 15
29 Self weight Kg 2720
30 Driving Wheel   2/2
31 Tyre model   Solid tyre
32 Front Tyre   18×7-10
33 Rear Tyre   16×6-8
34 Hand Brake   Hydraulic Pedal
35 Brake type   M-Hand
36 Lead aicd Battery Volt/ capacity V/Ah 48V/230
37 Lithium Battery Volt/ capacity V/Ah 48V/150
38 Driving motor power Kw 5
39 Pump power 6
