Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CPD30
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 4000-5000 usd
Packaging Details: Plastic bag
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
3.0T Acid Battery Lift Truck |
Load Capacity: |
3000 Kgs |
Battery Capacity: |
80V/300Ah |
Lift Height: |
4.5m Container Mast Type |
Fork Size: |
1220×122×45mm |
Service Weight: |
4000 Kg |
Product Name: |
3.0T Acid Battery Lift Truck |
Load Capacity: |
3000 Kgs |
Battery Capacity: |
80V/300Ah |
Lift Height: |
4.5m Container Mast Type |
Fork Size: |
1220×122×45mm |
Service Weight: |
4000 Kg |

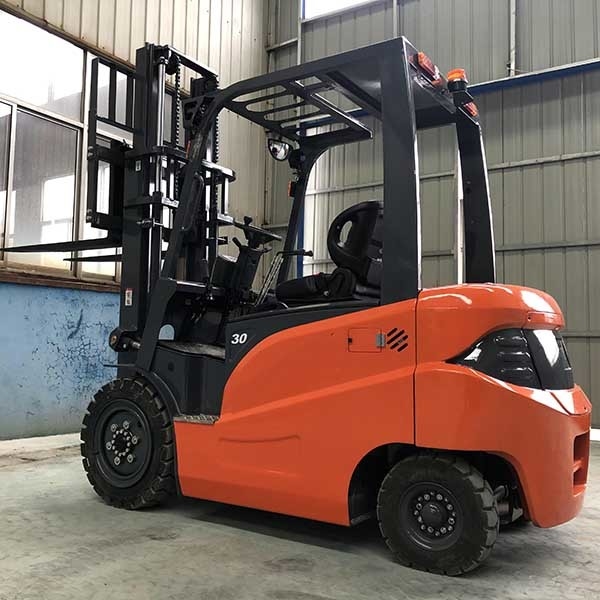

3000 kgs CPD30 3.0 Ton electric forklift lead acid traction battery AC motor
Main information:
Load capacity: 3000kg*500mm
Lead acid battery 80V/300Ah
Chinese AC controller
AC lift motor and AC drive motor
Automatic transmission
3 stage 4.5m mast
Solid tires
Fork 1220mm
Attachments: according to customers' requirements.
ADVANTAGES
The design of Yeawey electric forklift is based on the original G series with combination of the advantages to meet the light and medium applications with great comfort and efficiency. The truck is optional to equipped with either Lead-acid battery or Li-ion battery. With lowered center of gravity and overhead guard, the truck is ideal to be used in limited spaces such as entering elevator.
Curtis controller
The trucks are equipped with Curtis controllers.CAN-bus technology makes the diagnostic and trouble shooting easier.The use of proved and certified components helps to ensure the conformity to international safety standards with all the supporting documents available as required by law.
AC maintenance-free drive motor
Adopt maintenance-free and powerful AC drive motor. Compared with traditional DC motors, our AC motors do not need to replace Carbon brushes. Equipped with speed sensor and temperature sensor, greatly improving the AC motor’s reliability.
High performance transmission:
Transmission system uses a horizontal fan-shaped drive axle arranged in parallel with a large transmission ratio. The battery is installed at the bottom of the frame.Traveling motor adopts AC maintenance-free motor.
Comfortable experience
The forklift was ergonomically designed and it enables a wide view and a large operation space. The dashboard are designed to have clear and
intuitive graphic interfaces.
Multi-function dashboard:
Multi-function display screen with fault alarm, low battery reminder. High, medium and low speed modes.
| Item | Model | CPD30 | |
| 1 | Power type | Battery | |
| 2 | Rated load | KG | 3000 |
| 3 | Load center distance | mm | 500 |
| 4 | Driving type | Seat | |
| 5 | Length With fork | mm | 3850 |
| 6 | Length Without fork | 2780 | |
| 7 | Whole Width | 1270 | |
| 8 | Height no lifting frame | 2050 | |
| 9 | Top frame height | 2205 | |
| 10 | Max Height working | 4055 | |
| 11 | Distance from seat to top light | 972 | |
| 12 | Wheel base | 1830 | |
| 13 | Front overhang | 475 | |
| 14 | Back overhang | 490 | |
| 15 | Front wheel tread | 996 | |
| 16 | Back wheel tread | 968 | |
| 17 | Min Floor clearance | 115 | |
| 18 | Max lifting height | 4500 | |
| 19 | Free lifting height | 1500 | |
| 20 | Fork changing | 250~1100 | |
| 21 | Min Turning radius(outside) | 2500 | |
| 22 | Min Right angle aisle width | 4275 | |
| 23 | Frame angle (front/back) | (°) | 5/10 |
| 24 | Max lifting speed without goods | mm/s | 350 |
| 25 | Max lifting speed with full goods | 280 | |
| 26 | Max speed without goods | Km/h | 15 |
| 27 | Max speed with full goods | 14 | |
| 28 | Max climbing angle | ％ | 15 |
| 29 | Self weight | Kg | 4000 |
| 30 | Driving Wheel | 2/2 | |
| 31 | Tyre model | pneumatic tyre | |
| 32 | Front Tyre | 28x9-15 | |
| 33 | Rear Tyre | 18x7-8 | |
| 34 | Hand Brake | Hydraulic Pedal | |
| 35 | Brake type | M-Hand | |
| 36 | Lead aicd Battery Volt/ capacity | V/Ah | 80/300 |
| 37 | Lithium Battery Volt/ capacity | V/Ah | 80/206 |
| 38 | Driving motor power | Kw | 10 |
| 39 | Pump power | 12 |
