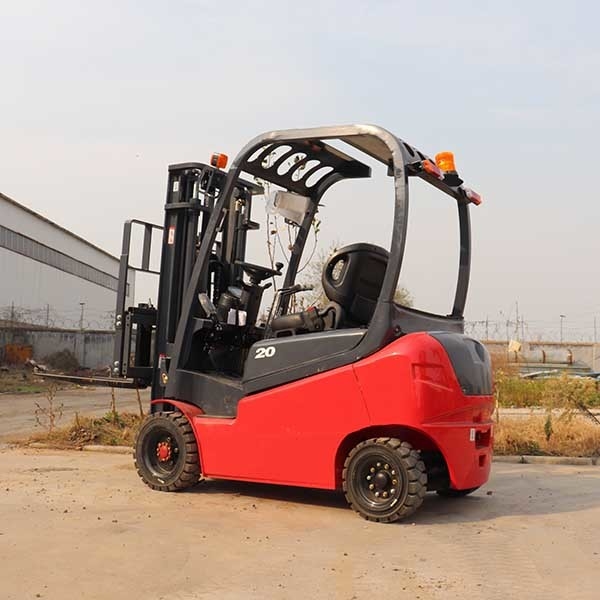

CPD20 2 Ton Electric Forklift 2000kgs Lead Acid Battery Forklift

 2000 kgs CPD20 economic 2.0 Ton forklift lead acid battery 2 stage standard mast

Main information:
Economic type
Load capacity: 2000kg*500mm
Lead acid battery 48V/300Ah
Chinese AC controller
AC lift motor and AC drive motor
Automatic transmission
2 stage 3m mast
Solid tires
Fork 1220mm
Attachments: according to customers' requirements.

ADVANTAGES
The design of Yeawey electric forklift is based on the original G series with combination of the advantages to meet the light and medium applications with great comfort and efficiency. The truck is optional to equipped with either Lead-acid battery or Li-ion battery. With lowered center of gravity and overhead guard, the truck is ideal to be used in limited spaces such as entering elevator.

Curtis controller
The trucks are equipped with Curtis controllers.CAN-bus technology makes the diagnostic and trouble shooting easier.The use of proved and certified components helps to ensure the conformity to international safety standards with all the supporting documents available as required by law.

AC maintenance-free drive motor
Adopt maintenance-free and powerful AC drive motor. Compared with traditional DC motors, our AC motors do not need to replace Carbon brushes. Equipped with speed sensor and temperature sensor, greatly improving the AC motor’s reliability.

High performance transmission:
Transmission system uses a horizontal fan-shaped drive axle arranged in parallel with a large transmission ratio. The battery is installed at the bottom of the frame.Traveling motor adopts AC maintenance-free motor.

Flexible scenarios

Smooth travel: ground clearance increased, to adapt to outdoor rough roads;

Flexible turning: turning radius reduced, to allow flexible shuttling in indoor environments such as cold store;

No fear of cold: the battery equipped with standard electric heating module, to ensure normal operation in cold weather;

Energy-saving and efficient

An efficient lift and travel motor together with a high speed ratio gearbox significantly improves the travel speed, gradeability and lifting speed;

The 80V high efficient motor system allows higher power density, and through deep matching of the gearbox, motors and electronic controls, reduces more energy consumption.

Warranty:
The warranty period is 24 months from on board date or 2000 working hours whichever comes first.
During warranty, we offer air delivery of the spare parts within 2 working days.Besides that, we have experienced engineers to check the problems and maintenance.
Delivery time:
As a factory, we can offer fast products delivery, standard forklift is 7 working days, Forklift with options is 10-20 working days.
Should you have any questions pls feel free to let us know.
