Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CDD10
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 6000-7500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
1T Walkie Electric Forklift |
Load Capacity: |
1000 Kgs*600mm |
Lift Height: |
1600-3000mm Mast |
Fork Length: |
1150mm |
Battery: |
2x12V/80Ah |
Service Weight: |
506KG |
Product Name: |
1T Walkie Electric Forklift |
Load Capacity: |
1000 Kgs*600mm |
Lift Height: |
1600-3000mm Mast |
Fork Length: |
1150mm |
Battery: |
2x12V/80Ah |
Service Weight: |
506KG |

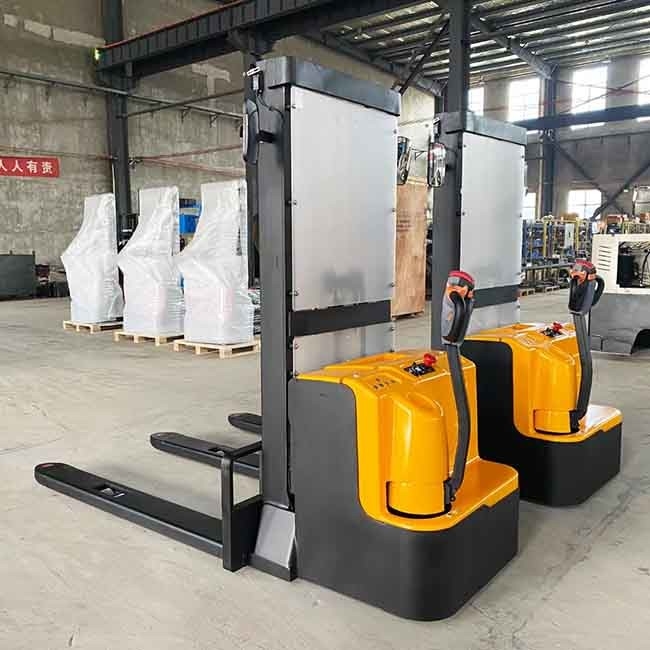

2 stage walkie 1Ton electric stacker warehouse use lithium battery
Main information:
Chinese AC controller
2X12V/80Ah lead acid battery forklift
Mast type: 2 stage mast
Lift height: 1600-3000mm
Tires: Solid
Fork: 1150mm
The YEAWEY walkie stackers are tailored towards pedestrian controlled stacking operations with capacities from 1200kg up to 2000kg.
With the mounted long tiller the operator can keep a safe and ergonomic distance while performing his work.
Due to the gentle full proportional lift system, stacking operations becomes safer and faster.
With high quality and state of the art top brand components and technology, the truck competes with other leading brands in the market.
Multi functional handle, integrated with key switch, upright walking button, LCD screen (battery level, working time, fault display), optional turtle speed, simple and comfortable operation;
| Item | Model | CDDC10-16 | CDDC10-30 | |
| 1 | Power type | Electric | Electric | |
| 2 | Drive mode | Walkie Type | Walkie Type | |
| 3 | Load capacity | Q(Kg) | 1000 | 1000 |
| 4 | Load center | C(mm) | 500 | 500 |
| 5 | Wheel base | Y(mm) | 1197 | 1197 |
| 6 | Self weight with battery | kg | 506 | 566 |
| 7 | Axle load at full load, drive end/bearing end | kg | 711/1294 | 732/1344 |
| 8 | Axle load when unloaded, drive end/bearing end | kg | 368/138 | 411/155 |
| 9 | Tire type Front/Rear | Pu solid tire | Pu solid tire | |
| 10 | Front tire size | ∅×w(mm) | Φ80x70 | Φ80x70 |
| 11 | Rear tire size | ∅×w(mm) | Φ210x70 | Φ210x70 |
| 12 | Track width, front wheels | b10(mm) | 515 | 515 |
| 13 | Track width, rear wheels | b11(mm) | 530 | 530 |
| 14 | Height-Mast Lowered | h1(mm) | 2055 | 1980 |
| 15 | Lift Height | h3(mm) | 1600 | 3000 |
| 16 | Maximum height when fork is lifting | h4(mm) | 2075 | 3478 |
| 17 | Min. Fork height | h13(mm) | 85 | 85 |
| 18 | Overall length | l2(mm) | 1858 | 1865 |
| 19 | Overall width | b1(mm) | 800 | 800 |
| 20 | Fork size | s/e/l(mm) | 65/165/1150 | 65/165/1150 |
| 21 | Width over fork | b5(mm) | 350/680 | 350/680 |
| 22 | Min ground clearance | m2(mm) | 25 | 25 |
| 23 | Min. stacking aisle 1000*1200 pallet(1200 cross fork placement) | Ast(mm) | 2238 | 2238 |
| 24 | Min. Turning radius | Wa(mm) | 1380 | 1380 |
| 25 | Max.walking speed | km/h | 4/3.5 | 4/3.5 |
| 26 | Max. lifting speed | m/s | 0.101/0.095 | 0.101/0.095 |
| 27 | Max. lowing speed | m/s | 0.111/0.125 | 0.111/0.125 |
| 28 | GradeAbility | ％ | 6/3 | 6/3 |
| 29 | Drive brake | Electromagnetic | Electromagnetic | |
| 30 | Drive motor | kw | 0.75 | 0.75 |
| 31 | Lift motor | kw | 2.2 | 2.2 |
| 32 | Battery type | Lead acid | Lead acid | |
| 33 | Battery capacity | V/Ah | 2x12/80 | 2x12/80 |
| 34 | Charger | V/A | 24V/10A | 24V/10A |
| 35 | DriveControllingType | DC | DC | |
| 36 | The noise level in the driver's ear according to EN12053 | dB(A) | 75 | 75 |
