Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CPCG35
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 7000-9500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
3.5 Ton Petrol Lift Truck G Series |
Engine: |
Chinese GQ4Y Gasoline Engine |
Lift Height: |
5500mm |
Mast Type: |
Full Free Lift Type |
Fork Size: |
1220X125X50MM |
Service Weight: |
4965KG |
Attachment: |
Solid Tyres |
Product Name: |
3.5 Ton Petrol Lift Truck G Series |
Engine: |
Chinese GQ4Y Gasoline Engine |
Lift Height: |
5500mm |
Mast Type: |
Full Free Lift Type |
Fork Size: |
1220X125X50MM |
Service Weight: |
4965KG |
Attachment: |
Solid Tyres |

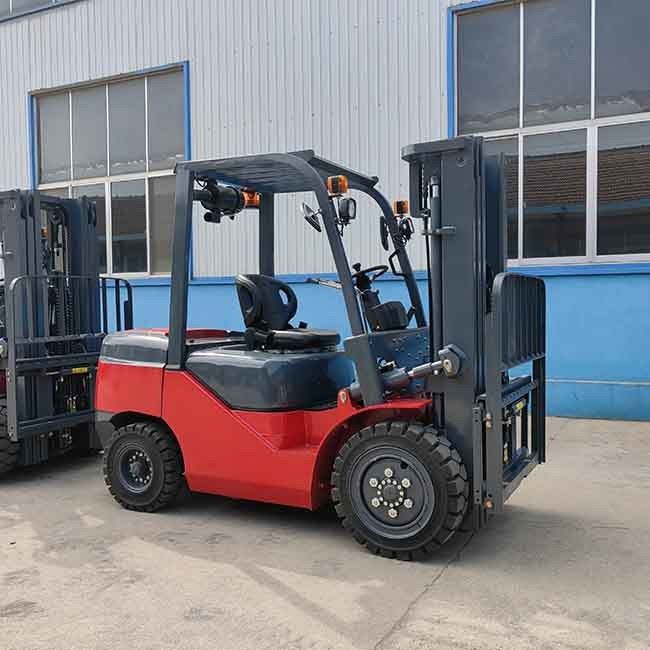

3500 kgs CPCD35 3.5 Ton petrol powered forklift standard mast Chinese engine
Main information:
Engine: Chinese GQ-4Y gasoline engine
Transmission: Automatic
Mast type: 3 stage mast 5.5m lifting height
Tires: Solid
Fork: 1220mm
Attachments: sideshift
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Working efficiency improved
Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.
Ergonomic comfort
Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.
Large Opening Angle
Enlarged internal space is convenient for engine and transmission box maintenance.
Increased hood opening angle makes maintenance convenient.
Workspace increased
Space around foot is effectively increased through up steering unit and using suspension type inching.
The operation space is enlarged by heightened overhead guard and using large arc shape of the overhead guard's front leg.
New design of key parts
The optimal design of key parts like frame, mast, overhead guard and steering axle improve the whole truck's safety and reliability.
| Specification | CPCG35 | ||
| 1 | Fuel model | Gasoline | |
| 2 | Load capacity | kg | 3500 |
| 3 | Load center | mm | 500 |
| 4 | Lift height | mm | 5500 |
| 5 | Full free lift height | mm | 1500 |
| 6 | Fork dimension | mm | 1220×125×50 |
| 7 | Mast tilting angle | Deg. | 6/6 |
| 8 | Min.turning radius | mm | 2550 |
| 9 | Groud clearance | mm | 135 |
| 10 | Overhead guard height | mm | 2165 |
| 11 | Front overhang | mm | 495 |
| 12 | Max travel speed | km/h | 19 |
| 13 | Max lift speed | mm/s | 480 |
| 14 | Max.traction power | KN | 13.5 |
| 15 | Max. gradeability | % | 20 |
| 16 | Total length with fork | mm | 4065 |
| 17 | Total length without fork | mm | 2995 |
| 18 | Total width | mm | 1225 |
| 19 | Mast extended height | mm | 4265 |
| 20 | Mast lowered height | mm | 2060 |
| 21 | Tyres Front | 28x9-15-12PR | |
| 22 | Type Rear | 6.50-10-10PR | |
| 23 | Wheelbase | mm | 1700 |
| 24 | Tread | mm | 1000/970 |
| 25 | Service weight | Kg | 4965 |
| 26 | Battery | V/Ah | 12/80 |
| 27 | Engine model | GQ-4Y gasoline engine | |
| 28 | Engine power | kw/r.p.m | 46 |
| 29 | Transmission | Mechanical or Automatic | |
| 30 | Work press | Mpa | 18.5 |
