Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CPCG50
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 7000-9500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
5.0 Ton Gasoline Forklift Truck |
Load Capacity: |
Nissan GK25 Gasoline Engine |
Lift Height: |
3000mm |
Mast Type: |
Standard Wide View |
Fork Size: |
1520X150X55MM |
Service Weight: |
5550KG |
Product Name: |
5.0 Ton Gasoline Forklift Truck |
Load Capacity: |
Nissan GK25 Gasoline Engine |
Lift Height: |
3000mm |
Mast Type: |
Standard Wide View |
Fork Size: |
1520X150X55MM |
Service Weight: |
5550KG |

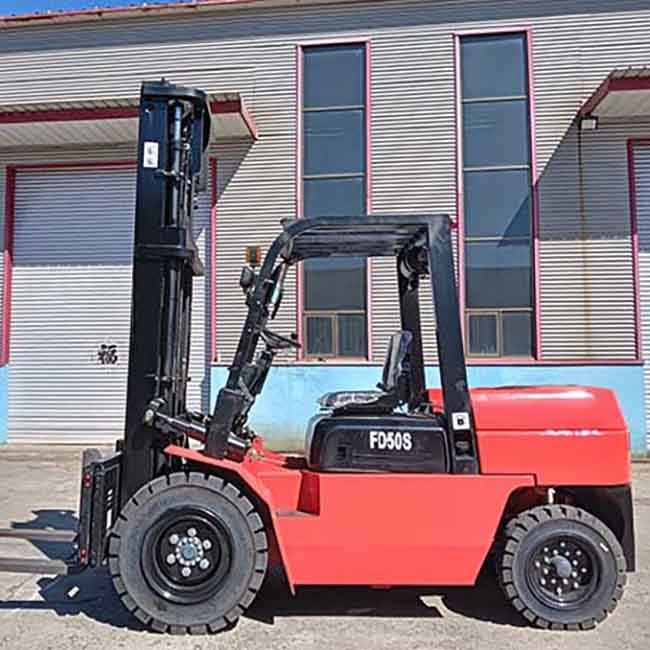

Double front tires 5 Ton gasoline powered forklift duplex mast
Main information:
Engine: Nissan GK25 gasoline engine
Transmission: Automatic
Mast type: 2 stage mast 3m lifting height
Tires: pneumatic
Fork: 1220mm-2000mm
Attachments: Side shift, double front tires
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Working efficiency improved
Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.
Ergonomic comfort
Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.
Large Opening Angle
Enlarged internal space is convenient for engine and transmission box maintenance.
Increased hood opening angle makes maintenance convenient.
Wide-angle Rear-View Mirror
Provides more comprehensive rear viewfor enhanced safety.
Warranty:
The warranty period is 24 months from on board date or 2000 working hours whichever comes first.
During warranty, we offer air delivery of the spare parts within 2 working days.Besides that, we have experienced engineers to check the problems and maintenance.
| Specification | CPCG50 | ||
| 1 | Fuel model | Gasoline | |
| 2 | Load capacity | kg | 5000 |
| 3 | Load center | mm | 500 |
| 4 | Lift height | mm | 3000 |
| 5 | Full free lift height | mm | 0 |
| 6 | Fork dimension | mm | 1070×150×50 |
| 7 | Mast tilting angle | Deg. | 6/12 |
| 8 | Min.turning radius | mm | 2680 |
| 9 | Groud clearance | mm | 135 |
| 10 | Overhead guard height | mm | 2210 |
| 11 | Front overhang | mm | 495 |
| 12 | Max travel speed | km/h | 22 |
| 13 | Max lift speed | mm/s | 330 |
| 14 | Max.traction power | KN | 18.5 |
| 15 | Max. gradeability | % | 20 |
| 16 | Total length with fork | mm | 4195 |
| 17 | Total length without fork | mm | 2975 |
| 18 | Total width | mm | 1380 |
| 19 | Mast extended height | mm | 4250 |
| 20 | Mast lowered height | mm | 2185 |
| 21 | Tyres Front | 300-15-18PR | |
| 22 | Type Rear | 700-12-10PR | |
| 23 | Wheelbase | mm | 1960 |
| 24 | Tread | mm | 1000/970 |
| 25 | Service weight | Kg | 5300 |
| 26 | Battery | V/Ah | 12/80 |
| 27 | Engine model | Nissan GK25 gasoline engine | |
| 28 | Engine power | kw/r.p.m | 46 |
| 29 | Transmission | Mechanical or Automatic | |
| 30 | Work press | Mpa | 18.5 |
