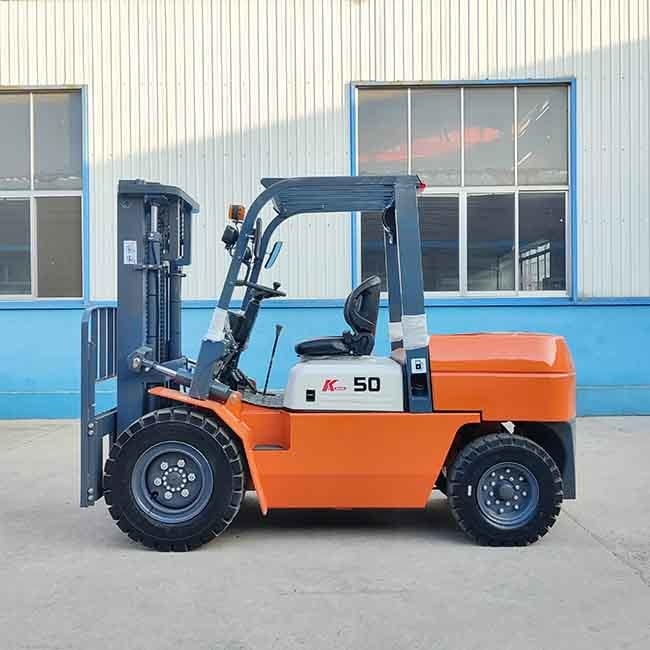

5000kg 4 Wheel Counterbalance Forklift Orange Counter Balance Fork Truck

Product Details

Place of Origin: China

Brand Name: YEAWEY

Certification: CE ISO,SGS

Model Number: CPCG50

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: 7000-9500 usd

Packaging Details: Plastic bag

Delivery Time: 5-8 working days

Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability: 100 units per month

Get Best Price
Highlight:

5000kg 4 Wheel Counterbalance Forklift

,

Orange Counter Balance Fork Truck

,

5000kg Counter Balance Fork Truck

Product Name:
5.0 Ton Gasoline Lift Truck
Load Capacity:
Nissan GCK25 Gasoline Engine
Lift Height:
3.00M
Mast Type:
Duplex Wide View
Fork Size:
1220-1820mm
Service Weight:
5350KG
Product Name:
5.0 Ton Gasoline Lift Truck
Load Capacity:
Nissan GCK25 Gasoline Engine
Lift Height:
3.00M
Mast Type:
Duplex Wide View
Fork Size:
1220-1820mm
Service Weight:
5350KG
5000kg 4 Wheel Counterbalance Forklift Orange Counter Balance Fork Truck

5000kg 5T gasoline powered lift truck duplex stage standard mast orange color



Main information:
Engine: Nissan GK25 gasoline engine
Transmission: Automatic
Mast type: 2 stage mast 3m lifting height
Tires: pneumatic
Fork: 1220mm-1820mm
Attachments: Side shift, double front tires


The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.

Working efficiency improved

Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.



Ergonomic comfort

Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.



Clear, Concise & Modern Design

Yeawey forklift design has adopted the streamline design of the Maximal A Series forklifts.The appearance is clear and concise with a very modern forklift design.



Large Opening Angle

Enlarged internal space is convenient for engine and transmission box maintenance.

Increased hood opening angle makes maintenance convenient.



Wide-angle Rear-View Mirror

Provides more comprehensive rear viewfor enhanced safety.



High visibility for safe operation

The opera tor is able to work with increased safety and accuracy due to a wider view mast.



Fast and stable performance

Being able to quickly raise and lower the mast as well as tilting it forward and backward, the forklift provides the best operational conditions during unloading. When the truck is fully loaded, mast lowering speed is carefully controlled to ensure safety by the down control valve

Specification CPCG50
1 Fuel model   Gasoline
2 Load capacity kg 5000
3 Load center mm 500
4 Lift height mm 3000
5 Full free lift height mm 0
6 Fork dimension mm 1070×150×50
7 Mast tilting angle Deg. 6/12
8 Min.turning radius mm 2680
9 Groud clearance mm 135
10 Overhead guard height mm 2210
11 Front overhang mm 495
12 Max travel speed km/h 22
13 Max lift speed mm/s 330
14 Max.traction power KN 18.5
15 Max. gradeability % 20
16 Total length with fork mm 4195
17 Total length without fork mm 2975
18 Total width mm 1380
19 Mast extended height mm 4250
20 Mast lowered height mm 2185
21 Tyres Front   300-15-18PR
22 Type Rear   700-12-10PR
23 Wheelbase mm 1960
24 Tread mm 1000/970
25 Service weight Kg 5300
26 Battery V/Ah 12/80
27 Engine model   Nissan GK25 gasoline engine
28 Engine power kw/r.p.m 46
29 Transmission   Mechanical or Automatic
30 Work press Mpa 18.5
