Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CPCG40
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 7000-9500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
4.0 Ton Gasoline Lift Truck |
Engine: |
NISSAN GK25 Engine |
Lift Height: |
6000mm |
Mast Type: |
Triplex FFL Mast |
Fork Size: |
1520mm Length |
Service Weight: |
5150KG |
Product Name: |
4.0 Ton Gasoline Lift Truck |
Engine: |
NISSAN GK25 Engine |
Lift Height: |
6000mm |
Mast Type: |
Triplex FFL Mast |
Fork Size: |
1520mm Length |
Service Weight: |
5150KG |

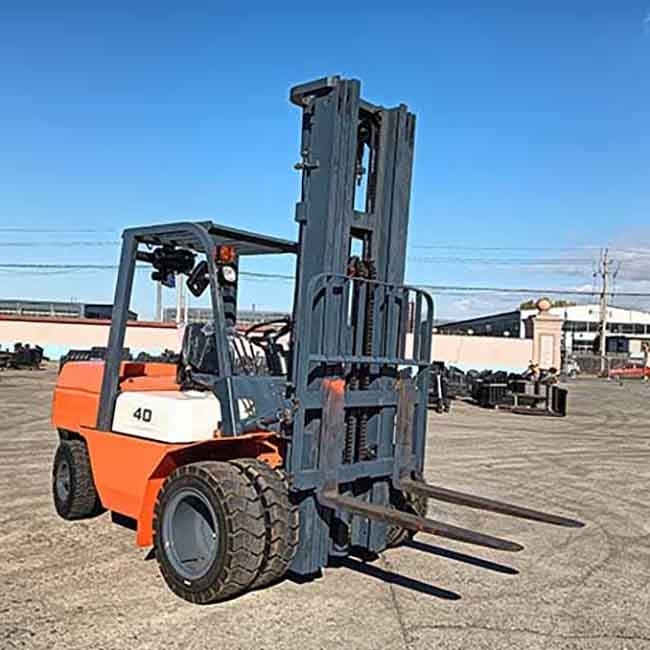

4000kgs CPCD40 4 Ton gasoline powered forklift truck triplex 6m mast
Main information:
Product name: 4.0Ton gasoline powered forklift
Engine: Chinese GQ-4Y diesel engine
Transmission: Automatic
Mast type: 3 stage mast 6000m lifting height
Tires: pneumatic
Fork: 1.52m
Attachments: Side shift, long forks
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Working efficiency improved
Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.
Ergonomic comfort
Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.
Full Hydraulic Steering System
Offer lighter, more flexible steering, with reduced turning radius and handles driving large vehicle like a small vehicle.
Workspace increased
Space around foot is effectively increased through up steering unit and using suspension type inching.
The operation space is enlarged by heightened overhead guard and using large arc shape of the overhead guard's front leg.
Wide-angle Rear-View Mirror
Provides more comprehensive rear viewfor enhanced safety.
| Specification | CPCG40 | ||
| 1 | Fuel model | Gasoline | |
| 2 | Load capacity | kg | 4000 |
| 3 | Load center | mm | 500 |
| 4 | Lift height | mm | 6000 |
| 5 | Full free lift height | mm | 1800 |
| 6 | Fork dimension | mm | 1520×150×45 |
| 7 | Mast tilting angle | Deg. | 6/12 |
| 8 | Min.turning radius | mm | 2800 |
| 9 | Groud clearance | mm | 135 |
| 10 | Overhead guard height | mm | 2230 |
| 11 | Front overhang | mm | 500 |
| 12 | Max travel speed | km/h | 18.5 |
| 13 | Max lift speed | mm/s | 420 |
| 14 | Max.traction power | KN | 20 |
| 15 | Max. gradeability | % | 20 |
| 16 | Total length with fork | mm | 4105 |
| 17 | Total length without fork | mm | 3035 |
| 18 | Total width | mm | 1230 |
| 19 | Mast extended height | mm | 4270 |
| 20 | Mast lowered height | mm | 2190 |
| 21 | Tyres Front | 250-15- 12PR | |
| 22 | Type Rear | 7.00-12-12PR | |
| 23 | Wheelbase | mm | 1900 |
| 24 | Tread | mm | 1160/1065 |
| 25 | Service weight | Kg | 5300 |
| 26 | Battery | V/Ah | 12/100 |
| 27 | Engine model | Chinese GQ-4Y diesel engine | |
| 28 | Engine power | kw/r.p.m | 34 |
| 29 | Transmission | Mechanical or Automatic | |
| 30 | Work press | Mpa | 18.5 |
