Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CPCD30
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 7000-9500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
3.0T Gasoline Powered Lift Truck |
Engine: |
NISSAN K25 Gasoline Engine |
Lift Height: |
3000mm |
Mast Type: |
2 Stage FFL Mast |
Fork Length: |
1220mm |
Service Weight: |
4385KGS |
Product Name: |
3.0T Gasoline Powered Lift Truck |
Engine: |
NISSAN K25 Gasoline Engine |
Lift Height: |
3000mm |
Mast Type: |
2 Stage FFL Mast |
Fork Length: |
1220mm |
Service Weight: |
4385KGS |

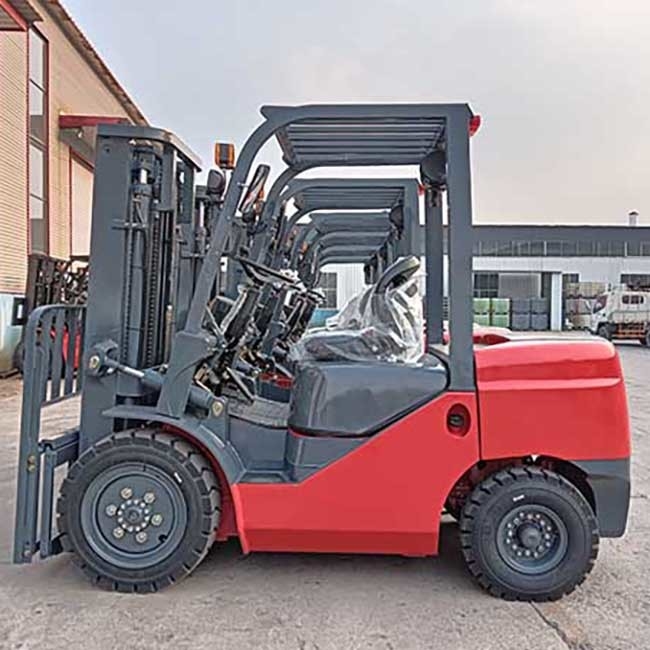

G series 3000kgs CPCD30 3 Ton gasoline powered lift truck with full lift mast
Main information:
Engine:Japanese NISSAN K25 gasoline engine
Transmission: Automatic
Mast type: 2 stage mast 35m lifting height
Tires: Solid or pneumatic
Fork: 1520mm
Attachments: Side shift
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Working efficiency improved
Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.
Ergonomic comfort
Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.
Increased hood opening angle
Increases opening angle to 80° to facilitate maintenance.
Opening engine hood is easy with a revised, simple pull lever.
Hydraulic system improved
The constant displacement pump load sensing steering system increases the lifting speed and reduces the hydraulic oil temperature.
Wide-angle Rear-View Mirror
Provides more comprehensive rear viewfor enhanced safety.
| Specification | CPCG30 | ||
| 1 | Fuel model | Gasoline | |
| 2 | Load capacity | kg | 3000 |
| 3 | Load center | mm | 500 |
| 4 | Lift height | mm | 3000 |
| 5 | Full free lift height | mm | 1500 |
| 6 | Fork dimension | mm | 1520×125×45 |
| 7 | Mast tilting angle | Deg. | 6/6 |
| 8 | Min.turning radius | mm | 2400 |
| 9 | Groud clearance | mm | 135 |
| 10 | Overhead guard height | mm | 2165 |
| 11 | Front overhang | mm | 495 |
| 12 | Max travel speed | km/h | 19 |
| 13 | Max lift speed | mm/s | 480 |
| 14 | Max.traction power | KN | 13.5 |
| 15 | Max. gradeability | % | 20 |
| 16 | Total length with fork | mm | 3820 |
| 17 | Total length without fork | mm | 2750 |
| 18 | Total width | mm | 1225 |
| 19 | Mast extended height | mm | 4265 |
| 20 | Mast lowered height | mm | 2060 |
| 21 | Tyres Front | 28x9-15-12PR | |
| 22 | Type Rear | 6.50-10-10PR | |
| 23 | Wheelbase | mm | 1700 |
| 24 | Tread | mm | 1000/970 |
| 25 | Service weight | Kg | 4485KG |
| 26 | Battery | V/Ah | 12/80 |
| 27 | Engine model | Japan NISSAN GK25 diesel engine | |
| 28 | Engine power | kw/r.p.m | 46 |
| 29 | Transmission | Mechanical or Automatic | |
| 30 | Work press | Mpa | 18.5 |
