Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CPCG35
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 7000-9500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
3.5 Ton Petrol Forklift |
Engine: |
Chinese GQ-4Y Gasoline Engine |
Lift Height: |
4500mm |
Mast Type: |
Triplex Full Free Lift Mast |
Fork Size: |
1820X125X50MM |
Service Weight: |
4865KG |
Attachment: |
Sideshift |
Product Name: |
3.5 Ton Petrol Forklift |
Engine: |
Chinese GQ-4Y Gasoline Engine |
Lift Height: |
4500mm |
Mast Type: |
Triplex Full Free Lift Mast |
Fork Size: |
1820X125X50MM |
Service Weight: |
4865KG |
Attachment: |
Sideshift |

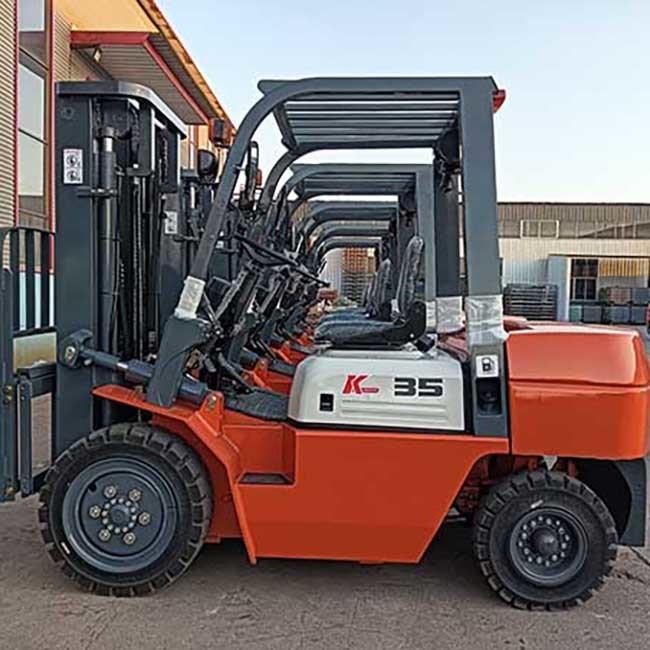

3500 kgs 3.5 Ton petrol forklift standard mast Chinese engine fork positioner
Main information:
Product name: 3.5 Ton gasoline powered forklift
Engine: Chinese GQ-4Y gasoline engine
Transmission: Automatic
Mast type: 3 stage mast 4.5m lifting height
Tires: Solid or pneumatic
Fork: 1820mm
Attachments: Hinged fork, bucket
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Working efficiency improved
Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.
Ergonomic comfort
Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.
Workspace increased
Space around foot is effectively increased through up steering unit and using suspension type inching.
The operation space is enlarged by heightened overhead guard and using large arc shape of the overhead guard's front leg.
Long working life
I beam rails and heavy tie bar construction reduce twisting while handling long,lateral loads on rough surface applications. Sealed bearing load rollers and are externally adjustable to compensate for long term wear.
Fuel filling improved
Automobile type oil filling cap and optimal oil filling channel structure and process ensure whole truck's safety.
| Specification | CPCG35 | ||
| 1 | Fuel model | Gasoline | |
| 2 | Load capacity | kg | 3500 |
| 3 | Load center | mm | 500 |
| 4 | Lift height | mm | 3000 |
| 5 | Full free lift height | mm | 100 |
| 6 | Fork dimension | mm | 1070×125×50 |
| 7 | Mast tilting angle | Deg. | 6/12 |
| 8 | Min.turning radius | mm | 2550 |
| 9 | Groud clearance | mm | 135 |
| 10 | Overhead guard height | mm | 2165 |
| 11 | Front overhang | mm | 495 |
| 12 | Max travel speed | km/h | 19 |
| 13 | Max lift speed | mm/s | 480 |
| 14 | Max.traction power | KN | 13.5 |
| 15 | Max. gradeability | % | 20 |
| 16 | Total length with fork | mm | 4065 |
| 17 | Total length without fork | mm | 2995 |
| 18 | Total width | mm | 1225 |
| 19 | Mast extended height | mm | 4265 |
| 20 | Mast lowered height | mm | 2060 |
| 21 | Tyres Front | 28x9-15-12PR | |
| 22 | Type Rear | 6.50-10-10PR | |
| 23 | Wheelbase | mm | 1700 |
| 24 | Tread | mm | 1000/970 |
| 25 | Service weight | Kg | 4560 |
| 26 | Battery | V/Ah | 12/80 |
| 27 | Engine model | GQ-4Y gasoline engine | |
| 28 | Engine power | kw/r.p.m | 46 |
| 29 | Transmission | Mechanical or Automatic | |
| 30 | Work press | Mpa | 18.5 |
