Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CPCG35
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 7000-9500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
3.5 Ton Gasoline Forklift With Bucket |
Engine: |
NISSAN K25 Gas Engine |
Lift Height: |
4500mm |
Mast Type: |
Triplex Full Free Lift Mast |
Fork Size: |
1520X125X50MM |
Service Weight: |
5290KG |
Attachment: |
Bucket |
Product Name: |
3.5 Ton Gasoline Forklift With Bucket |
Engine: |
NISSAN K25 Gas Engine |
Lift Height: |
4500mm |
Mast Type: |
Triplex Full Free Lift Mast |
Fork Size: |
1520X125X50MM |
Service Weight: |
5290KG |
Attachment: |
Bucket |

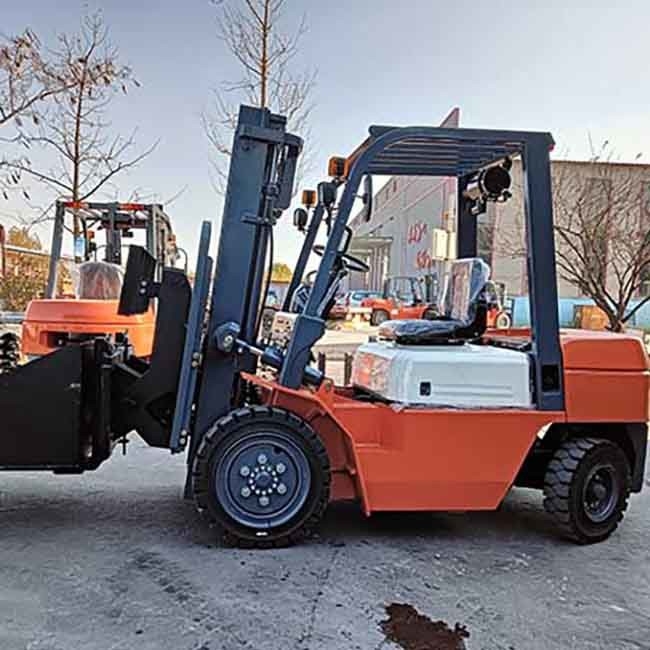

CPCG35 3500 KGS 3.5 Ton gasoline powered forklift triplex mast side shifter
Main information:
Product name: 3.5 Ton gasoline powered forklift
Engine: Japanese NISSAN gasoline forklift.
Transmission: Automatic
Mast type: 3 stage mast 4.5m lifting height
Tires: Solid or pneumatic
Fork: 1520mm
Attachments: Hinged fork, bucket
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Working efficiency improved
Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.
Ergonomic comfort
Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.
Large Opening Angle
Enlarged internal space is convenient for engine and transmission box maintenance.
Increased hood opening angle makes maintenance convenient.
Adjustable Steering Wheel
Provide convenience and can customize to the operator's desired position.
Durable mast
The mast tilt angle F/R reaches to 10°/12°. Wide-view mast provides excellent through-the-mast visibility, improving the work efficiency and allowing safe operation of the forklift.
| Specification | CPCG35 | ||
| 1 | Fuel model | Gasoline | |
| 2 | Load capacity | kg | 3500 |
| 3 | Load center | mm | 500 |
| 4 | Lift height | mm | 3000 |
| 5 | Full free lift height | mm | 100 |
| 6 | Fork dimension | mm | 1070×125×50 |
| 7 | Mast tilting angle | Deg. | 6/12 |
| 8 | Min.turning radius | mm | 2550 |
| 9 | Groud clearance | mm | 135 |
| 10 | Overhead guard height | mm | 2165 |
| 11 | Front overhang | mm | 495 |
| 12 | Max travel speed | km/h | 19 |
| 13 | Max lift speed | mm/s | 480 |
| 14 | Max.traction power | KN | 13.5 |
| 15 | Max. gradeability | % | 20 |
| 16 | Total length with fork | mm | 4065 |
| 17 | Total length without fork | mm | 2995 |
| 18 | Total width | mm | 1225 |
| 19 | Mast extended height | mm | 4265 |
| 20 | Mast lowered height | mm | 2060 |
| 21 | Tyres Front | 28x9-15-12PR | |
| 22 | Type Rear | 6.50-10-10PR | |
| 23 | Wheelbase | mm | 1700 |
| 24 | Tread | mm | 1000/970 |
| 25 | Service weight | Kg | 4560 |
| 26 | Battery | V/Ah | 12/80 |
| 27 | Engine model | GQ-4Y gasoline engine | |
| 28 | Engine power | kw/r.p.m | 46 |
| 29 | Transmission | Mechanical or Automatic | |
| 30 | Work press | Mpa | 18.5 |
