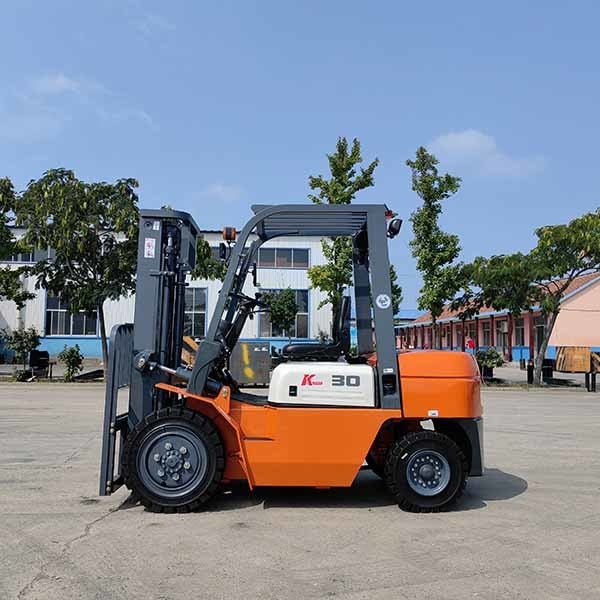

Duplex Mast Gasoline Powered Forklift 3000kgs Warehouse Equipment Forklift

Product Details

Place of Origin: China

Brand Name: YEAWEY

Certification: CE ISO,SGS

Model Number: CPCG30

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: 7000-9500 usd

Packaging Details: Plastic bag

Delivery Time: 5-8 working days

Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability: 100 units per month

Get Best Price
Highlight:

Duplex Mast Gasoline Powered Forklift

,

Gasoline Powered Forklift 3000kgs

,

3000kgs Warehouse Equipment Forklift

Product Name:
3 Ton Gasoline Forklift
Engine:
Japan NISSAN GK25 Gasoline Engine
Lift Height:
3500mm
Mast Type:
Standard Duplex Mast
Fork Size:
1220X125X45MM
Service Weight:
4460KG
Product Name:
3 Ton Gasoline Forklift
Engine:
Japan NISSAN GK25 Gasoline Engine
Lift Height:
3500mm
Mast Type:
Standard Duplex Mast
Fork Size:
1220X125X45MM
Service Weight:
4460KG
Duplex Mast Gasoline Powered Forklift 3000kgs Warehouse Equipment Forklift

Duplex standard mast 3 Ton gasoline forklift Japanese engine



Main information:
Product name: 3Ton gasoline powered forklift truck
Engine: apanese NISSAN GK25 gasoline engine
Transmission: Automatic
Mast type: 32 stage mast 3.5m lifting height
Tires: Solid or pneumatic
Fork: 1220mm
Attachments: sideshift


The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.



Working efficiency improved

Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.



Ergonomic comfort

Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.



Optimum heat dissipation

New design with 40% larger radiator space dissipates heat faster and keeps engine cool



Operator's view improved

A clear view to the forks and surrounding area is optimized through the Maximal wide view mast.Excellent rearwards visibility is enhanced with the sloping rear counterweight and fenders.The dash and LED monitor panel is mounted low and in line of sight for operator convenience.



Warranty:
The warranty period is 24 months from on board date or 2000 working hours whichever comes first.
During warranty, we offer air delivery of the spare parts within 2 working days.Besides that, we have experienced engineers to check the problems and maintenance.




Specification CPCG30
1 Fuel model   Gasoline
2 Load capacity kg 3000
3 Load center mm 500
4 Lift height mm 4000
5 Full free lift height mm 100
6 Fork dimension mm 1220×125×45
7 Mast tilting angle Deg. 6/6
8 Min.turning radius mm 2400
9 Groud clearance mm 135
10 Overhead guard height mm 2165
11 Front overhang mm 495
12 Max travel speed km/h 19
13 Max lift speed mm/s 480
14 Max.traction power KN 13.5
15 Max. gradeability % 20
16 Total length with fork mm 3820
17 Total length without fork mm 2750
18 Total width mm 1225
19 Mast extended height mm 4265
20 Mast lowered height mm 2060
21 Tyres Front   28x9-15-12PR
22 Type Rear   6.50-10-10PR
23 Wheelbase mm 1700
24 Tread mm 1000/970
25 Service weight Kg 4350
26 Battery V/Ah 12/80
27 Engine model   Japan NISSAN GK25 diesel engine
28 Engine power kw/r.p.m 46
29 Transmission   Mechanical or Automatic
30 Work press Mpa 18.5
