Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO, SGS
Model Number: CPCG20
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: USD6500-USD8500 per unit
Packaging Details: Plastic bag
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 200 units per month
Name: |
2T Gasoline Forklift Truck |
Engine: |
GQ-4Y Japanese Engine |
Lift Height: |
4800mm |
Mast Type: |
3 Stage Container Mast |
Fork Size: |
1220X122X40mm |
Service Weight: |
3630 Kg |
Name: |
2T Gasoline Forklift Truck |
Engine: |
GQ-4Y Japanese Engine |
Lift Height: |
4800mm |
Mast Type: |
3 Stage Container Mast |
Fork Size: |
1220X122X40mm |
Service Weight: |
3630 Kg |

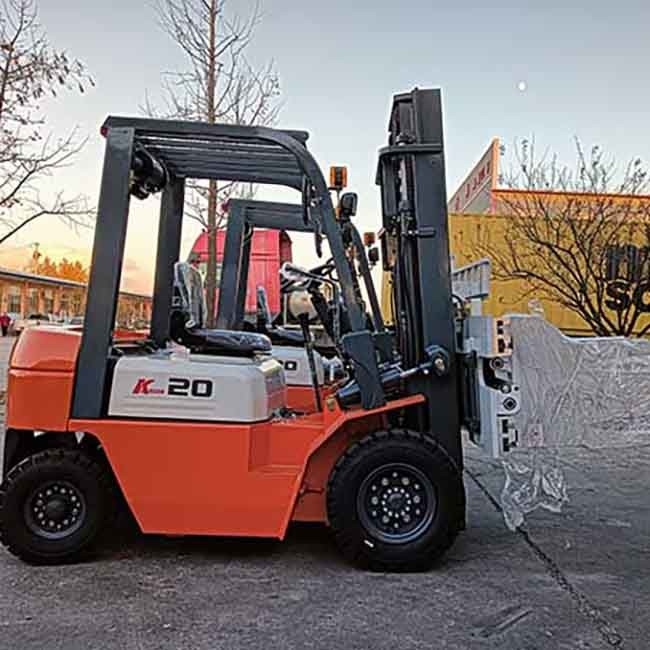

2000kgs 2 Ton gasoline powered forklift truck Chinese GQ-4Y gasoline engine bale clamp
Main information:
Engine: Japanese GQ-4Y engine
Transmission: Automatic
Mast type: 3 stage mast 4.8m lifting height
Tires: Solid
Fork: 1220mm
Attachments: bale clamp
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Working efficiency improved
Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.
Ergonomic comfort
Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.
Optimum heat dissipation
New design with 40% larger radiator space dissipates heat faster and keeps engine cool.
Durable mast
The mast tilt angle F/R reaches to 10°/12°. Wide-view mast provides excellent through-the-mast visibility, improving the work efficiency and allowing safe operation of the forklift.
Fuel filling improved
Automobile type oil filling cap and optimal oil filling channel structure and process ensure whole truck's safety.
| Specification | CPCG20 | ||
| 1 | Fuel model | Gasoline | |
| 2 | Load capacity | kg | 2000 |
| 3 | Load center | mm | 500 |
| 4 | Lift height | mm | 4800 |
| 5 | Full free lift height | mm | 1500 |
| 6 | Fork dimension | mm | 1220×122×40 |
| 7 | Mast tilting angle | Deg. | 6/6 |
| 8 | Min.turning radius | mm | 2220 |
| 9 | Groud clearance | mm | 120 |
| 10 | Overhead guard height | mm | 2140 |
| 11 | Front overhang | mm | 448 |
| 12 | Max travel speed | km/h | 19 |
| 13 | Max lift speed | mm/s | 550 |
| 14 | Max.traction power | KN | 12.3 |
| 15 | Max. gradeability | % | 20 |
| 16 | Total length with fork | mm | 3523 |
| 17 | Total length without fork | mm | 2453 |
| 18 | Total width | mm | 1160 |
| 19 | Mast extended height | mm | 4220 |
| 20 | Mast lowered height | mm | 2060 |
| 21 | Tyres Front | 7.00-12-12PR | |
| 22 | Type Rear | 6.00-9-10PR | |
| 23 | Wheelbase | mm | 1600 |
| 24 | Tread | mm | 970/970 |
| 25 | Service weight | Kg | 3530 |
| 26 | Battery | V/Ah | 12/80 |
| 27 | Engine model | Chiense GQ-4Y | |
| 28 | Engine power | kw/r.p.m | 32 |
| 29 | Transmission | Automatic | |
| 30 | Work press | Mpa | 18.5 |
