Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO, SGS,
Model Number: CPCG15
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 6500-7500 usd
Packaging Details: Plastic bag
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Name: |
1.5T Gasoline Lift Truck |
Engine: |
GQ-4Y Gasoline Engine |
Lift Height: |
4500mm |
Mast Type: |
3 Stage Wide View |
Fork Size: |
1220mm Length |
Service Weight: |
2886 Kgs |
Name: |
1.5T Gasoline Lift Truck |
Engine: |
GQ-4Y Gasoline Engine |
Lift Height: |
4500mm |
Mast Type: |
3 Stage Wide View |
Fork Size: |
1220mm Length |
Service Weight: |
2886 Kgs |

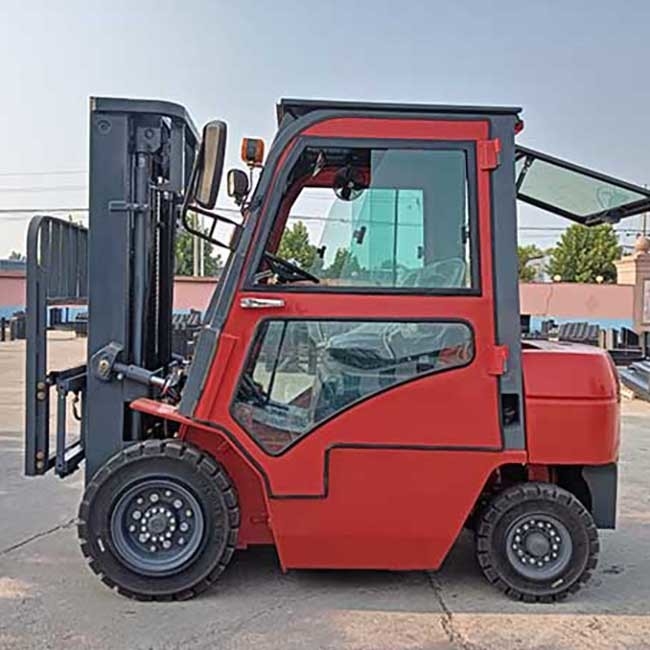

CPCD15 1.5 Ton gasoline lift truck Chinese GuangQing 4Y gasoine engine cabin
Main information:
Engine: Japanese GQ-4Y gasoline engine
Transmission: Automatic
Mast type: 3 stage mast 4.5m lifting height
Tires: Solid
Fork: 1220mm
Attachments: Side shift, warehouse use
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Working efficiency improved
Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.
Ergonomic comfort
Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.
Optimum heat dissipation
New design with 40% larger radiator space dissipates heat faster and keeps engine cool.
Suspension Seat (Optional)
Optional TOYOTA suspension seat with tilting and sliding adjustment absorbs vibrations, improving comfort and safety.
Delivery time:
As a factory, we can offer fast products delivery, standard forklift is 7 working days, Forklift with options is 10-20 working days.
| Specification | CPCG15 | ||
| 1 | Fuel model | Gasoline | |
| 2 | Load capacity | kg | 1500 |
| 3 | Load center | mm | 500 |
| 4 | Lift height | mm | 4500 |
| 5 | Full free lift height | mm | 1500 |
| 6 | Fork dimension | mm | 1220×100×35 |
| 7 | Mast tilting angle | Deg. | 6/12 |
| 8 | Min.turning radius | mm | 1955 |
| 9 | Groud clearance | mm | 110 |
| 10 | Overhead guard height | mm | 2040 |
| 11 | Front overhang | mm | 425 |
| 12 | Max travel speed | km/h | 13.5 |
| 13 | Max lift speed | mm/s | 590 |
| 14 | Max.traction power | KN | 12.3 |
| 15 | Max. gradeability | % | 20 |
| 16 | Total length with fork | mm | 3175 |
| 17 | Total length without fork | mm | 2255 |
| 18 | Total width | mm | 1070 |
| 19 | Mast extended height | mm | 4030 |
| 20 | Mast lowered height | mm | 1995 |
| 21 | Tyres Front | 6.50-10-10PR | |
| 22 | Type Rear | 5.00-8-8PR | |
| 23 | Wheelbase | mm | 1410 |
| 24 | Tread | mm | 890/920 |
| 25 | Service weight | Kg | 2800 |
| 26 | Battery | V/Ah | 12/80 |
| 27 | Engine model | GQ-4Y gasoline engine | |
| 28 | Engine power | kw/r.p.m | 32 |
| 29 | Transmission | Mechanical or Automatic | |
| 30 | Work press | Mpa | 18.5 |
