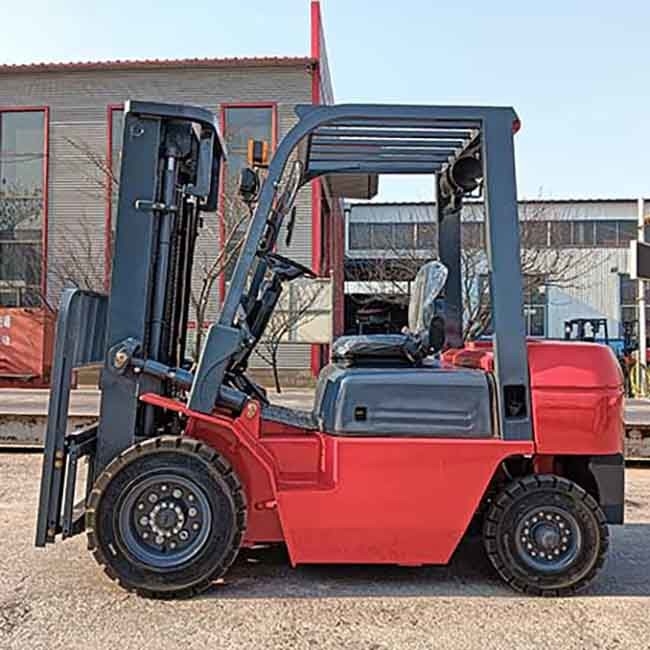

2000kgs Gasoline Forklift Truck Japanese NISSAN GK21 Forklift Counter Balance

Product Details

Place of Origin: China

Brand Name: YEAWEY

Certification: CE ISO, SGS

Model Number: CPCG20

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: USD6500-USD8500 per unit

Packaging Details: Plastic bag

Delivery Time: 5-10 working days

Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability: 200 units per month

Get Best Price
Highlight:

2000kgs Gasoline Forklift

,

NISSAN GK21 Forklift Counter Balance

,

2000kgs NISSAN GK21 Forklift

Name:
2T Gasoline Forklift
Engine:
NISSAN GK21 Japanese Engine
Lift Height:
3000mm
Mast Type:
Full Free Lift Container Mast
Fork Size:
1070X122X40mm
Service Weight:
3530 Kg
Name:
2T Gasoline Forklift
Engine:
NISSAN GK21 Japanese Engine
Lift Height:
3000mm
Mast Type:
Full Free Lift Container Mast
Fork Size:
1070X122X40mm
Service Weight:
3530 Kg
2000kgs Gasoline Forklift Truck Japanese NISSAN GK21 Forklift Counter Balance

2000kgs 2T small gasoline forklift truck Japanese NISSAN GK21 gasoline engine



Main information:

Engine: Japanese NISSAN GK21

Transmission: Automatic

Mast type: 3 stage mast 4.5m lifting height

Tires: Solid

Fork: 1220mm

Attachments: sideshift, solid tires



The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.



Working efficiency improved

Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.



Ergonomic comfort

Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.



Optimum heat dissipation

New design with 40% larger radiator space dissipates heat faster and keeps engine cool.



High Quality & Durable tires

Yeawey forklift front tires are a special heavy truck tire with a wide footprint giving it greater stability and lift capacity in rough work environments.



Long working life

I beam rails and heavy tie bar construction reduce twisting while handling long,lateral loads on rough surface applications. Sealed bearing load rollers and are externally adjustable to compensate for long term wear.





Specification CPCG20
1 Fuel model   Gasoline
2 Load capacity kg 2000
3 Load center mm 500
4 Lift height mm 3000
5 Full free lift height mm 1500
6 Fork dimension mm 1070×122×40
7 Mast tilting angle Deg. 6/6
8 Min.turning radius mm 2220
9 Groud clearance mm 120
10 Overhead guard height mm 2140
11 Front overhang mm 448
12 Max travel speed km/h 19
13 Max lift speed mm/s 550
14 Max.traction power KN 12.3
15 Max. gradeability % 20
16 Total length with fork mm 3523
17 Total length without fork mm 2453
18 Total width mm 1160
19 Mast extended height mm 4220
20 Mast lowered height mm 2060
21 Tyres Front   7.00-12-12PR
22 Type Rear   6.00-9-10PR
23 Wheelbase mm 1600
24 Tread mm 970/970
25 Service weight Kg 3530
26 Battery V/Ah 12/80
27 Engine model   Japanese NISSAN GK21
28 Engine power kw/r.p.m 32
29 Transmission   Automatic
30 Work press Mpa 18.5
