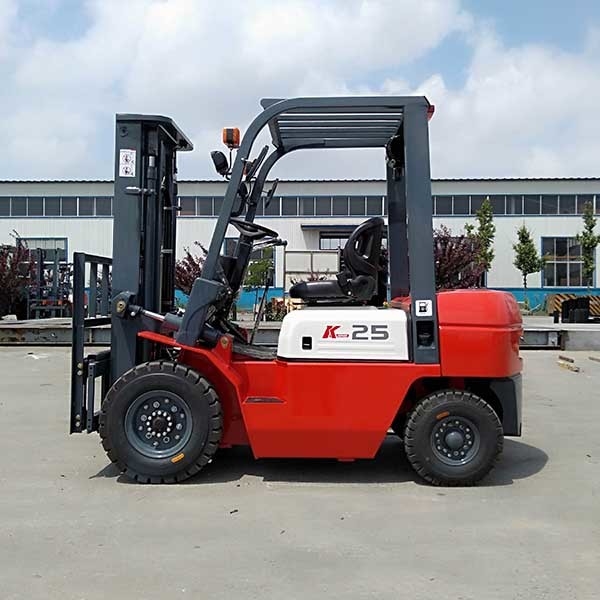

2.5T Counterbalance Warehouse Lift Truck Container Mast 4.5m Gasoline Forklift

Product Details

Place of Origin: China

Brand Name: YEAWEY

Certification: CE ISO,SGS

Model Number: CPCG25

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: 7000-9500 usd

Packaging Details: Plastic bag

Delivery Time: 5-8 working days

Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability: 100 units per month

Get Best Price
Highlight:

2.5T Counterbalance Warehouse

,

Container Mast 4.5m Gasoline Forklift

,

2.5T Warehouse Lift Truck

Product Name:
2.5T Gasoline Forklift
Engine:
NISSAN GK25 Gasoline Engine
Lift Height:
4500mm
Mast Type:
Triplex Container Mast
Fork Length:
1220mm
Service Weight:
3950KGS
Color:
Red And Grey
Product Name:
2.5T Gasoline Forklift
Engine:
NISSAN GK25 Gasoline Engine
Lift Height:
4500mm
Mast Type:
Triplex Container Mast
Fork Length:
1220mm
Service Weight:
3950KGS
Color:
Red And Grey
2.5T Counterbalance Warehouse Lift Truck Container Mast 4.5m Gasoline Forklift

Container mast 4.5m 2.5T gasoline powered forklift warehouse use solid tires



Main information:
Product name: 2.5Ton gasoline powered forklift
Engine:Japanese NISSAN GK25 gasoline forklift.
Transmission: Automatic
Mast type: 3 stage mast 4.5m lifting height
Tires: Solid or pneumatic
Fork: 1220mm
Attachments: Side shift, long forks


The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.



Working efficiency improved

Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.



Ergonomic comfort

Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.



Great heat dissipation

The hot air reflow isolating device, optimal thermal dissipation duct and aluminum plate-fin type radiator improve cooling ability and ensure engine work reliability.



Steer Axle

Oscillating steer axle allows either wheel to step over obstacles keeping the machine and load level. Flirtation drive& steer tires provide excellent traction and stability.The steering angle is from 54° to 78'with very small turning radius.



Fuel filling improved

Automobile type oil filling cap and optimal oil filling channel structure and process ensure whole truck's safety.





Specification CPCG25
1 Fuel model   Gasoline
2 Load capacity kg 2500
3 Load center mm 500
4 Lift height mm 4500
5 Full free lift height mm 1500
6 Fork dimension mm 12270×122×40
7 Mast tilting angle Deg. 6/6
8 Min.turning radius mm 2240
9 Groud clearance mm 120
10 Overhead guard height mm 2140
11 Front overhang mm 485
12 Max travel speed km/h 19
13 Max lift speed mm/s 550
14 Max.traction power KN 12.3
15 Max. gradeability % 20
16 Total length with fork mm 3610
17 Total length without fork mm 2540
18 Total width mm 1160
19 Mast extended height mm 4220
20 Mast lowered height mm 2060
21 Tyres Front   7.00-12-12PR
22 Type Rear   6.00-9-10PR
23 Wheelbase mm 1600
24 Tread mm 970/970
25 Service weight Kg 3880
26 Battery V/Ah 12/80
27 Engine model   NISSAN GK21 engine
28 Engine power kw/r.p.m 46kw
29 Transmission   Automatic
30 Work press Mpa 18.5
