Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: FR30
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 9000-1200 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month

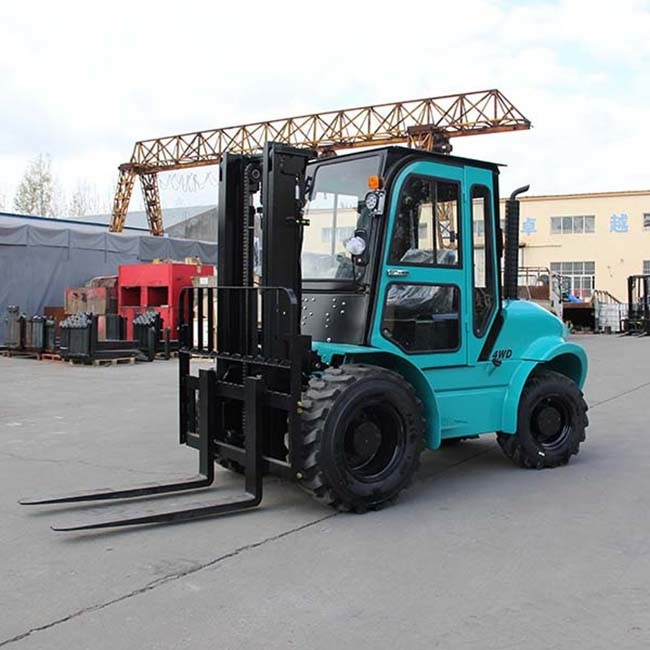

Product Name: |
3.00 Ton Rough Terrain Forklift 4X4 |
Engine: |
Chinese Xinchai EuroV Engine |
Power: |
44.6 Kw |
Lift Height: |
4.8m Wide View Mast |
Mast Type: |
3 Stage FFL Type |
Fork Size: |
1.82m Long Forks |
Service Weight: |
5250 |
Product Name: |
3.00 Ton Rough Terrain Forklift 4X4 |
Engine: |
Chinese Xinchai EuroV Engine |
Power: |
44.6 Kw |
Lift Height: |
4.8m Wide View Mast |
Mast Type: |
3 Stage FFL Type |
Fork Size: |
1.82m Long Forks |
Service Weight: |
5250 |
Main information:
4X4 four wheel drived
Load capacity: 3000kg*500mm
Engine: Chinese Euro V engine or YANMAR 4TNE98
Transmission: Automatic
Mast type: Triplex mast 4.8m lifting height
Tires: Pneumatic
Fork: 1820mm
Attachments: Side shift or according to customer's requirements.
YEAWEY 4WD Rough Terrain Forklift
Capacity 2,500 to 3,500kg newly designed 2WD & 4WD rough terrain forklifts with compact design and powerful off-road capability make them ideal for most of the tough applications. Such as construction, forestry, mining, agriculture and other industries with different ground conditions and weather conditions. With mature and reliable transmission and axle technology, YEAWEY rough terrain allows customers to handle the loads with precision, safety and greater comfort. And it will definitely increase your productivity and become your reliable partner in tough working operations.
PRODUCTIVITY &MANEUVERABILITY
High Ground Clearance
2WD-High ground clearance up to 270mm.
4VD-High ground clearance up to 300mm.
Stage V/Tire4F Engine
Several durable and powerful engines are available for it, including the Euro & US market.
Differential lock
2WD RTF has 100% differential lock.
4WD RTF has 45% differential lock in both front and rear axle, so it could work well in slippery or muddy area.
Warranty:
The warranty period is 24 months from on board date or 2000 working hours whichever comes first.
During warranty, we offer air delivery of the spare parts within 2 working days.Besides that, we have experienced engineers to check the problems and maintenance.
Delivery time:
As a factory, we can offer fast products delivery, standard forklift is 7 working days, Forklift with options is 10-20 working days.
Should you have any questions pls feel free to let us know.
| Specifications | FR4WD25 | ||
| Power form | Diesel | ||
| Load capacity | 2500 | ||
| Load center | 500 | ||
| Lift height | h | 3000 | |
| MAST TILT ANGLE | 6/12 | ||
| Min.turning radius | Wa | 3120 | |
| MIN. GROUND CLEARENCE | MAST | 250 | |
| FRAME | 310 | ||
| OVERHEAD GUARD HEIGHT | h3 | 2220 | |
| FRONT LOAD DISTANCE | 450 | ||
| Max travel speed | Full-loaded | 20 | |
| Max lift speed | Full-loaded | 530 | |
| Max. gradeability | Full-loaded | 30 | |
| Total length | With fork | L1+L2 | 4135 |
| Without fork | h1 | 3065 | |
| Total width | b | 1450 | |
| Fork max. lift height | h4 | 4350 | |
| Mast lowered height | h1 | 2235 | |
| Tyres | Tyres Front | 14-17.5-14PR | |
| Types Rear | 10.0/75-15.3 | ||
| Wheelbase | L3 | 1880 | |
| Service weight | Non-loaded | 5050 | |
| Battery | 12/80 | ||
| Engine | Engine model | A498BPG | |
| Engine power | 45/2500 | ||
| Reated Torque | 193/1600-1800 | ||
