Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: FR40
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 9000-1200 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
4.00 Ton Rough Terrain Forklift 4X4 |
Engine: |
Chinese Xinchai EuroII Engine |
Power: |
45 Kw |
Lift Height: |
3000mm Wide View Mast |
Mast Type: |
2 Stage Wide View Mast |
Fork Size: |
1.22m Stamndard Forks |
Service Weight: |
5200 |
Product Name: |
4.00 Ton Rough Terrain Forklift 4X4 |
Engine: |
Chinese Xinchai EuroII Engine |
Power: |
45 Kw |
Lift Height: |
3000mm Wide View Mast |
Mast Type: |
2 Stage Wide View Mast |
Fork Size: |
1.22m Stamndard Forks |
Service Weight: |
5200 |
Main information:
4X4 four wheel drived
Load capacity: 3500kg*500mm
Engine: Chinese Euro V engine or ISUZU engine
Transmission: Automatic
Mast type: Duplex mast 3m lifting height
Tires: Pneumatic
Fork: 1220mm
Attachments: Side shift , fork positioner or according to customer's requirements.

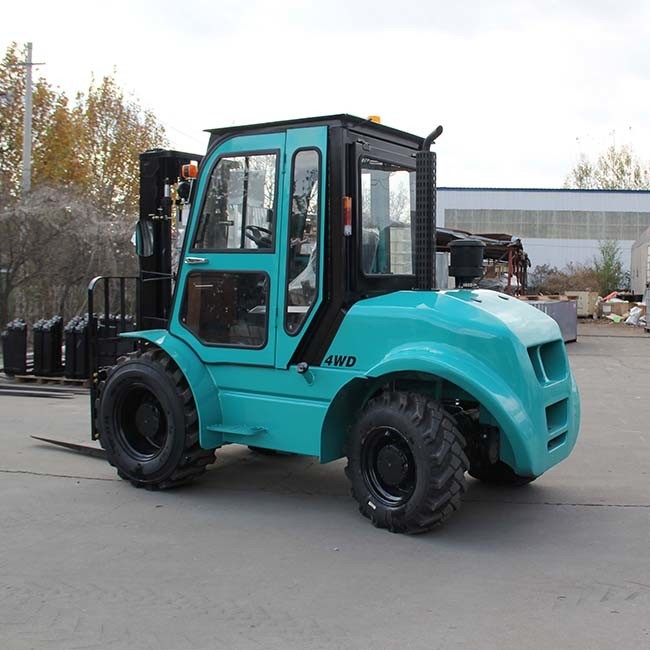

YEAWEY 4WD Rough Terrain Forklift
Capacity 3,500kg newly designed 2WD & 4WD rough terrain forklifts with compact design and powerful off-road capability make them ideal for most of the tough applications. Such as construction, forestry, mining, agriculture and other industries with different ground conditions and weather conditions. With mature and reliable transmission and axle technology, YEAWEY rough terrain allows customers to handle the loads with precision, safety and greater comfort. And it will definitely increase your productivity and become your reliable partner in tough working operations.
Large Steering Angle
The large steering angle( small turning radius)and compact structure design make the forklift could work well even if in space restricted area.
Ergonomics Operation
The adjustable seat and steering wheel, as well as the ergonomic operating lever, are designed for comfortable operation.
Easy Maintenance
Nearly 90-degree engine hood makes daily maintenance easier, all parts can be reached quickly.
Warranty:
The warranty period is 24 months from on board date or 2000 working hours whichever comes first.
During warranty, we offer air delivery of the spare parts within 2 working days.Besides that, we have experienced engineers to check the problems and maintenance.
Delivery time:
As a factory, we can offer fast products delivery, standard forklift is 7 working days, Forklift with options is 10-20 working days.
Should you have any questions pls feel free to let us know.
| Specifications | FR4WD25 | FR4WD30 | FR4WD35 | FR4WD40 | ||
| Power form | Diesel | Diesel | Diesel | Diesel | ||
| Load capacity | 2500 | 3000 | 3500 | 4000 | ||
| Load center | 500 | 500 | 500 | 500 | ||
| Lift height | h | 3000 | 3000 | 3000 | 3000 | |
| MAST TILT ANGLE | 6/12 | 6/12 | 6/12 | 6/12 | ||
| Min.turning radius | Wa | 3120 | 3120 | 3120 | 3120 | |
| MIN. GROUND CLEARENCE | MAST | 250 | 250 | 250 | 250 | |
| FRAME | 310 | 310 | 310 | 355 | ||
| OVERHEAD GUARD HEIGHT | h3 | 2220 | 2220 | 2220 | 2265 | |
| FRONT LOAD DISTANCE | 450 | 450 | 450 | 490 | ||
| Max travel speed | Full-loaded | 20 | 20 | 20 | 20 | |
| Max lift speed | Full-loaded | 530 | 530 | 480 | 480 | |
| Max. gradeability | Full-loaded | 30 | 30 | 30 | 30 | |
| Total length | With fork | L1+L2 | 4135 | 4135 | 4135 | 4135 |
| Without fork | h1 | 3065 | 3065 | 3065 | 3065 | |
| Total width | b | 1450 | 1600 | 1600 | 1600 | |
| Fork max. lift height | h4 | 4350 | 4350 | 4350 | 4350 | |
| Mast lowered height | h1 | 2235 | 2235 | 2235 | 2280 | |
| Tyres | Tyres Front | 14-17.5-14PR | 14-17.5-14PR | 14-17.5-14PR | 14-17.5-14PR | |
| Types Rear | 10.0/75-15.3 | 10.0/75-15.3 | 10.0/75-15.3 | 10.0/75-15.3 | ||
| Wheelbase | L3 | 1880 | 1880 | 1880 | 1880 | |
| Service weight | Non-loaded | 5050 | 5250 | 5545 | 5800 | |
| Battery | 12/80 | 12/80 | 12/80 | 12/80 | ||
| Engine | Engine model | A498BPG | A498BPG | A498BPG | A498BPG | |
| Engine power | 45/2500 | 45/2500 | 45/2500 | 45/2500 | ||
| 额定转矩 | 193/1600-1800 | 193/1600-1800 | 193/1600-1800 | 193/1600-1800 | ||
