Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: FR4WD40
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 7000-9500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
4 Ton Off Road Forklift 4X4 |
Engine: |
Yunnei YN4EZ080-30CR |
Power: |
58 Kw |
Lift Height: |
3000mm Wide View Mast |
Mast Type: |
2 Stage Wide Mast |
Fork Size: |
1220X125X55MM |
Service Weight: |
6250KG |
Product Name: |
4 Ton Off Road Forklift 4X4 |
Engine: |
Yunnei YN4EZ080-30CR |
Power: |
58 Kw |
Lift Height: |
3000mm Wide View Mast |
Mast Type: |
2 Stage Wide Mast |
Fork Size: |
1220X125X55MM |
Service Weight: |
6250KG |
Main information:
4X4 four wheel drived
Load capacity: 500mm
Engine: Chinese YUNNEI diesel engine
Transmission: Automatic
Mast type: Duplex mast 3m lifting height
Tires: Pneumatic
Fork: 1220mm
Attachments: Side shift

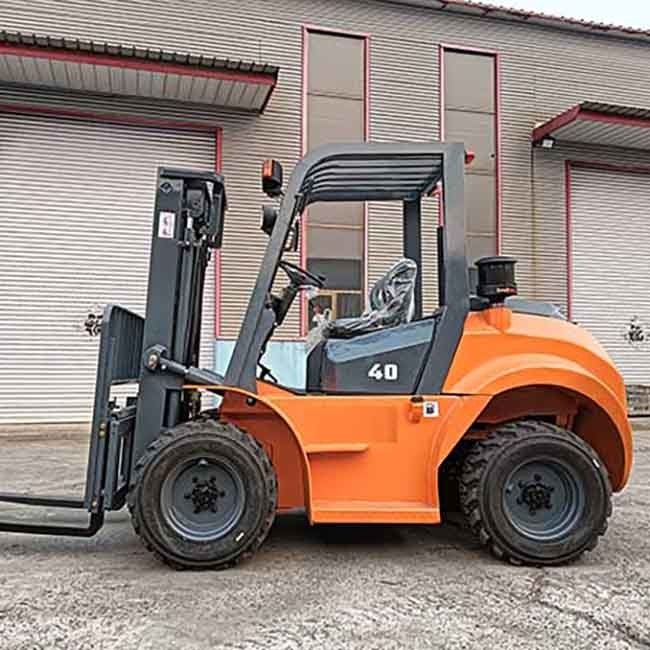

YEAWEY Rough Terrain Forklift is built with an emphasis on performance,reliability and high tech design. Compact size, with rounded body design,allows better forward, side & rear visibility for the operator.
Short wheelbase provides tight turning radius to maneuver in congested or limited space operating areas.
Specifically designed for the construction,mining, forestry lumber & building industry,these forklift trucks have high under clearance,tremendous mobility and stability on rouih terrain with or without load.
Rugged designed one piece frame is robotic welded for maximum rigidity, superior quality and lone term endurance to meet the most demanding operating conditions.
Two-Wheel Drive System
Yeawey rough terrain forklift is a tough, compact forklift with a two-wheel drive system.
The forklift is based on conventional forklift, but its rough terrain performance is excellent.
Transmission with Differential Lock
Power shift transmission with torque converter has two pedal inching, brake control and full reversal allowing faster cycle times.
The differential is specifically designed for rough terrain and features automatic differential lock, providing ultimate traction during inclement weather conditions and rough operating surfaces.
High Ground Clearance
2.5T-3T rough terrain forklift body min. ground clearance is 250mm; 3.5T-4T rough terrain forklift body min. ground clearance is 285mm;High ground clearance offers greater maneuverability and keeps the machine moving in the roughest of applications.
Working efficiency improved
Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.
Suspension Seat (Optional)
Optional TOYOTA suspension seat with tilting and sliding adjustment absorbs vibrations, improving comfort and safety.
Adjustable Steering Wheel
Provide convenience and can customize to the operator's desired position.
Warranty:
The warranty period is 24 months from on board date or 2000 working hours whichever comes first.
During warranty, we offer air delivery of the spare parts within 2 working days.Besides that, we have experienced engineers to check the problems and maintenance.
Delivery time:
As a factory, we can offer fast products delivery, standard forklift is 7 working days, Forklift with options is 10-20 working days.
Should you have any questions pls feel free to let us know.
| Model | FR4WD40 | |||
| 1 | Power | Diesel | ||
| 2 | Load capacity | kg | 4000 | |
| 3 | Load center | mm | 500 | |
| 4 | Lift height | mm | 3000 | |
| 6 | Fork size | mm | 1070×150×50 | |
| 7 | Mast tilting angle front/rear | Deg | 6/12 | |
| 8 | Min. turning radius | mm | 4010 | |
| 9 | Groud clearance | mm | 250 | |
| 11 | Overhead guard height | mm | 2480 | |
| 14 | Travel speed(unladen) | km/h | 38 | |
| 15 | Lifting speed(laden/unladen) | mm/s | 460/550 | |
| 16 | Lowing speed(laden/unladen) | mm/s | loaden＜600,unloaden＞300 | |
| 18 | Max. Gradeability (Laden) | % | 25 | |
| 19 | Length | With fork | mm | 4365 |
| 20 | Without fork | mm | 3250 | |
| 21 | Width | mm | 1920 | |
| 22 | Mast extended height | mm | 7150 | |
| 23 | Mast lowered height | mm | 2990 | |
| 24 | Tires | Front | 315/55D20 | |
| 25 | Rear | 315/55D20 | ||
| 26 | Wheel base | mm | 1950 | |
| 27 | Tread front/rear | mm | 1585/1430 | |
| 30 | Service weight | Kg | 6250 | |
| 31 | Battery | V/Ah | 12/80(2pcs) | |
| 32 | Engine | Model | YN4EZ080-30CR | |
| 33 | Reated power | kw/r.p.m | 58.8/2400 | |
| 34 | Rated torque | Nm/r.p.m | 276/1500-1800 | |
| 35 | Cylinders | 4 | ||
| 36 | Displacement | L | 3.76 | |
| 37 | Fuel tank capacity | L | 90 | |
| 38 | Transmission | Automatic | ||
| 39 | Shift(front/rear) | 4/4 | ||
