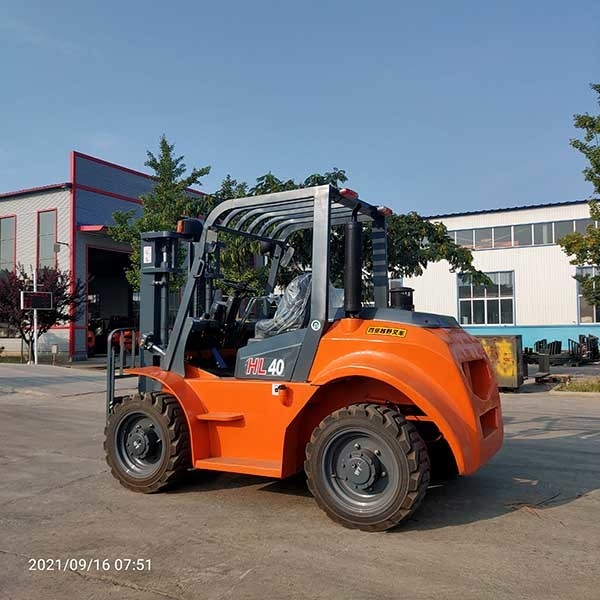

Chinese YUNNEI Diesel Engine 4X4 Forklift 3500kg All Terrain Forklift

Product Details

Place of Origin: China

Brand Name: YEAWEY

Certification: CE ISO,SGS

Model Number: FR4WD35

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: 7000-9500 usd

Packaging Details: Plastic bag

Delivery Time: 5-8 working days

Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability: 100 units per month

Get Best Price
Highlight:

YUNNEI Diesel Engine 4X4 Forklift

,

Chinese YUNNEI Diesel 4X4 Forklift

,

3500kg All Terrain Forklift

Product Name:
3.5 Ton Off Road Forklift 4X4
Engine:
Yunnei
Power:
36.8kw
Lift Height:
4000mm Wide View Mast
Mast Type:
2 Stage
Fork Size:
1220X125X55MM
Service Weight:
5450KG
Attachment:
Sideshift
Product Name:
3.5 Ton Off Road Forklift 4X4
Engine:
Yunnei
Power:
36.8kw
Lift Height:
4000mm Wide View Mast
Mast Type:
2 Stage
Fork Size:
1220X125X55MM
Service Weight:
5450KG
Attachment:
Sideshift
Chinese YUNNEI Diesel Engine 4X4 Forklift 3500kg All Terrain Forklift

3500kg powerful 3.5 ton all terrain forklift 4X4 Chinese YUNNEI diesel engine



Main information:
Product name: 3.5 Ton off road forklift with cabin, 4 wheel drived
Two wheel drived
Load capacity: 500mm
Engine: Chinese Xinchai A498BPG diesel engine
Transmission: Automatic
Mast type: Duplex mast 4m lifting height
Tires: Pneumatic
Fork: 1220mm
Attachments: Side shift

YEAWEY Rough Terrain Forklift is built with an emphasis on performance,reliability and high tech design. Compact size, with rounded body design,allows better forward, side & rear visibility for the operator.

Short wheelbase provides tight turning radius to maneuver in congested or limited space operating areas.

Specifically designed for the construction,mining, forestry lumber & building industry,these forklift trucks have high under clearance,tremendous mobility and stability on rouih terrain with or without load.

Rugged designed one piece frame is robotic welded for maximum rigidity, superior quality and lone term endurance to meet the most demanding operating conditions.



Two-Wheel Drive System

Yeawey rough terrain forklift is a tough, compact forklift with a two-wheel drive system.

The forklift is based on conventional forklift, but its rough terrain performance is excellent.



Transmission with Differential Lock

Power shift transmission with torque converter has two pedal inching, brake control and full reversal allowing faster cycle times.

The differential is specifically designed for rough terrain and features automatic differential lock, providing ultimate traction during inclement weather conditions and rough operating surfaces.



High Ground Clearance

2.5T-3T rough terrain forklift body min. ground clearance is 250mm; 3.5T-4T rough terrain forklift body min. ground clearance is 285mm;High ground clearance offers greater maneuverability and keeps the machine moving in the roughest of applications.



Engine

Yeawey rough terrain forklifts adopt Yanmar 4TNE98 diesel engine. It’s world renowned for superior performance,economy and longevity. Timed glow plug cold starting cold climates allows faster warm up and fuel savings.Yanmar engine conforms to all world environmental EPA standards.



Workspace increased

Space around foot is effectively increased through up steering unit and using suspension type inching.

The operation space is enlarged by heightened overhead guard and using large arc shape of the overhead guard's front leg.



Gravity&capacity improved

The repositioning of whole truck's gravity center improve load.ing capacity, stability and safety.



Warranty:
The warranty period is 24 months from on board date or 2000 working hours whichever comes first.
During warranty, we offer air delivery of the spare parts within 2 working days.Besides that, we have experienced engineers to check the problems and maintenance.


Delivery time:
As a factory, we can offer fast products delivery, standard forklift is 7 working days, Forklift with options is 10-20 working days.
Should you have any questions pls feel free to let us know.





Model     FR4WD35
Power     Diesel
Load capacity   kg 3500
Load center   mm 500
Lift height   mm 3000
Fork size   mm 45x125x1070
Mast tilting angle front/rear   Deg 6/12
Min. turning radius   mm 3960
Groud clearance   mm 250
Overhead guard height   mm 2450
Travel speed(unladen)   km/h 30
Lifting speed(laden/unladen)   mm/s 450/550
Lowing speed(laden/unladen)   mm/s ≤600/≥300
Max. Gradeability (Laden)   % 25
Length With fork mm 4160
Without fork mm 3090
Width   mm 1600
Mast extended height   mm 4350
Mast lowered height   mm 2235
Tires Front   12-16.5-10PR
Rear   12-16.5-10PR
Wheel base   mm 1840
Tread front/rear   mm 1250/1320
Service weight   Kg 5450
Battery   V/Ah 12/80(2个)
Engine Model   YN4H055-34VE
Reated power kw/r.p.m 36.8/2400
Rated torque Nm/r.p.m 185/1600-1800
Cylinders   4
Displacement L 2.543
Fuel tank capacity   L 80
Transmission     Automatic
Shift(front/rear)     2/2
