Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CPCD60
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 8000-10000 usd
Packaging Details: Plastic bag
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
6 Ton Diesel Forklift Heavy Duty |
Load Capacity: |
6.0T |
Lift Height: |
4500mm Container Mast |
Fork Size: |
1520X150X60MM |
Service Weight: |
8900 Kg |
Engine: |
Chinese Xichai 4DF3 |
Engine Power: |
85 Kw |
Product Name: |
6 Ton Diesel Forklift Heavy Duty |
Load Capacity: |
6.0T |
Lift Height: |
4500mm Container Mast |
Fork Size: |
1520X150X60MM |
Service Weight: |
8900 Kg |
Engine: |
Chinese Xichai 4DF3 |
Engine Power: |
85 Kw |

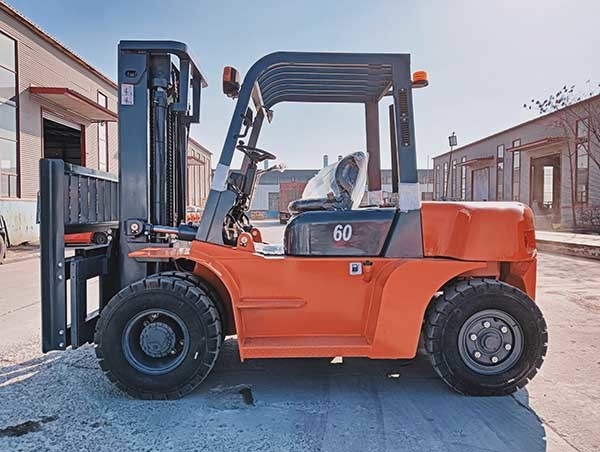

6000kg CPCD60 6 ton diesel fork lift Chinese XICHAI engine triplex container mast
Main information:
Engine: Xichai 4DF3 engine,85 kw
Transmission: Automatic
Mast type: Triplex mast 4.5m lifting height
Tires: pneumatic
Fork: 1520mm
Attachments: fork positioner,sideshift
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Ergonomic comfort
Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.
Suspension Seat (Optional)
Optional TOYOTA suspension seat with tilting and sliding adjustment absorbs vibrations, improving comfort and safety.
Enlarged internal space is convenient for engine and transmission box maintenance.
Increased hood opening angle makes maintenance convenient.
Increased hood opening angle
Increases opening angle to 80° to facilitate maintenance.
Opening engine hood is easy with a revised, simple pull lever.
Optimum heat dissipation
New design with 40% larger radiator space dissipates heat faster and keeps engine cool.
Great heat dissipation
The hot air reflow isolating device, optimal thermal dissipation duct and aluminum plate-fin type radiator improve cooling ability and ensure engine work reliability.
Warranty:
The warranty period is 24 months from on board date or 2000 working hours whichever comes first.
During warranty, we offer air delivery of the spare parts within 2 working days.Besides that, we have experienced engineers to check the problems and maintenance.
Delivery time:
As a factory, we can offer fast products delivery, standard forklift is 7 working days, Forklift with options is 10-20 working days.
Should you have any questions pls feel free to let us know.
| Specification | CPCD60 | ||
| 1 | Fuel model | Diesel | |
| 2 | Load capacity | kg | 6000 |
| 3 | Load center | mm | 600 |
| 4 | Lift height | mm | 4500 |
| 5 | Full free lift height | mm | 1500 |
| 6 | Fork dimension | mm | 1520×150×60 |
| 7 | Mast tilting angle | Deg. | 6/6 |
| 8 | Min.turning radius | mm | 3320 |
| 9 | Groud clearance | mm | 200 |
| 10 | Overhead guard height | mm | 2460 |
| 11 | Front overhang | mm | 615 |
| 12 | Max travel speed | km/h | 26 |
| 13 | Max lift speed | mm/s | 400 |
| 14 | Max.traction power | KN | 51.4 |
| 15 | Max. gradeability | % | 20 |
| 16 | Total length with fork | mm | 4770 |
| 17 | Total length without fork | mm | 3550 |
| 18 | Total width | mm | 1995 |
| 19 | Mast extended height | mm | 6100 |
| 20 | Mast lowered height | mm | 2500 |
| 21 | Tyres Front | 8.25-15-14PR | |
| 22 | Type Rear | 8.25-15-14PR | |
| 23 | Wheelbase | mm | 2250 |
| 24 | Tread | mm | 1470/1700 |
| 25 | Service weight | Kg | 8900 |
| 26 | Battery | V/Ah | (12/80)x2 |
| 27 | Engine model | XICHAI 4DF3 | |
| 28 | Engine power | kw/r.p.m | 85 |
| 29 | Transmission | Automatic | |
| 30 | Work press | Mpa | 20 |
