Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CPCD80
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 8000-10000 usd
Packaging Details: Plastic bag
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
7.5Ton Diesel Powered Forklift Heavy Duty |
Load Capacity: |
7500 Kg |
Load Center: |
600mm |
Lift Height: |
4.5m Mast |
Fork Size: |
1820X150X70MM |
Service Weight: |
10200 Kg |
Engine: |
Xichai 6110 Diesel Engine |
Product Name: |
7.5Ton Diesel Powered Forklift Heavy Duty |
Load Capacity: |
7500 Kg |
Load Center: |
600mm |
Lift Height: |
4.5m Mast |
Fork Size: |
1820X150X70MM |
Service Weight: |
10200 Kg |
Engine: |
Xichai 6110 Diesel Engine |

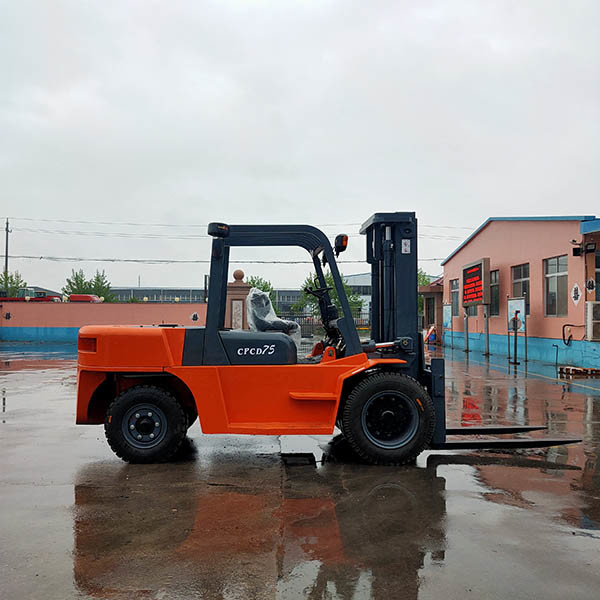

7500kg-8000kg stone factory use 7.5Ton diesel lift truck Chinese diesel engine
Main information:
Engine: Xichai 6110 engine
Transmission: Automatic
Mast type: Duplex 4.5m mast
Tires: pneumatic
Fork: 1820mm
Attachments: sideshift
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Working efficiency improved
Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.
Ergonomic comfort
Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.
Steer Axle
Oscillating steer axle allows either wheel to step over obstacles keeping the machine and load level. Flirtation drive& steer tires provide excellent traction and stability.The steering angle is from 54° to 78'with very small turning radius.
High Quality & Durable tires
Yeawey forklift front tires are a special heavy truck tire with a wide footprint giving it greater stability and lift capacity in rough work environments.
Vibration reduced
Cushion connection and wholly suspension driver's cab absorb whole truck's vibration effectively.
| Specification | CPCD75 | ||
| 1 | Fuel model | Diesel | |
| 2 | Load capacity | kg | 7500 |
| 3 | Load center | mm | 600 |
| 4 | Lift height | mm | 3000 |
| 5 | Full free lift height | mm | 200 |
| 6 | Fork dimension | mm | 1220×150×65 |
| 7 | Mast tilting angle | Deg. | 6/12 |
| 8 | Min.turning radius | mm | 3580 |
| 9 | Groud clearance | mm | 200 |
| 10 | Overhead guard height | mm | 2460 |
| 11 | Front overhang | mm | 590 |
| 12 | Max travel speed | km/h | 29 |
| 13 | Max lift speed | mm/s | 500 |
| 14 | Max.traction power | KN | 53 |
| 15 | Max. gradeability | % | 20 |
| 16 | Total length with fork | mm | 5000 |
| 17 | Total length without fork | mm | 3780 |
| 18 | Total width | mm | 1995 |
| 19 | Mast extended height | mm | 4420 |
| 20 | Mast lowered height | mm | 2625 |
| 21 | Tyres Front | 8.25-15-14PR | |
| 22 | Type Rear | 8.25-15-14PR | |
| 23 | Wheelbase | mm | 2450 |
| 24 | Tread | mm | 1470/1700 |
| 25 | Service weight | Kg | 10200 |
| 26 | Battery | V/Ah | (12/80)x2 |
| 27 | Engine model | XICHAI 6110 | |
| 28 | Engine power | kw/r.p.m | 85 |
| 29 | Transmission | Automatic | |
| 30 | Work press | Mpa | 20 |
