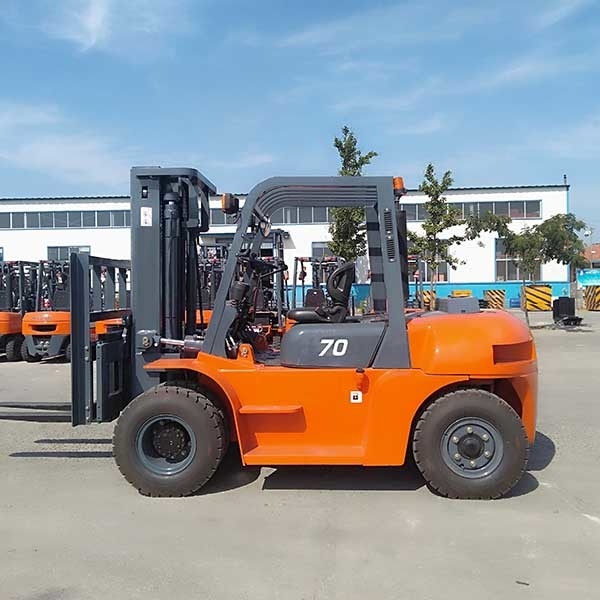

ISUZU 6BG1 Diesel Counterbalance Orange Forklift Counter Balance

Product Details

Place of Origin: China

Brand Name: YEAWEY

Certification: CE ISO,SGS

Model Number: CPCD70

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: 8000-10000 usd

Packaging Details: Plastic bag

Delivery Time: 15-20 working days

Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability: 100 units per month

Get Best Price
Highlight:

ISUZU 6BG1 Diesel Counterbalance

,

Orange Forklift Counter Balance

,

Diesel Counterbalance Orange

Product Name:
7 Ton Diesel Powered Forklift Heavy Duty
Load Capacity:
7000 Kg
Load Center:
600mm
Lift Height:
4.5m Mast Full Free Lift
Width:
2235mm
Fork Size:
1370X150X66MM
Service Weight:
9340 Kg
Color:
Red And Grey
Engine:
Xichai 4DF3
Product Name:
7 Ton Diesel Powered Forklift Heavy Duty
Load Capacity:
7000 Kg
Load Center:
600mm
Lift Height:
4.5m Mast Full Free Lift
Width:
2235mm
Fork Size:
1370X150X66MM
Service Weight:
9340 Kg
Color:
Red And Grey
Engine:
Xichai 4DF3
ISUZU 6BG1 Diesel Counterbalance Orange Forklift Counter Balance

Heavy duty CPCD70 7 ton diesel forklift ISUZU 6BG1 diesel engine high power



Main information:
Product name: 7 Ton diesel powered forklift heavy duty
Engine: Xichai 4DF3  engine, 85 kw
Transmission: Automatic
Mast type: Triplex 4.5m mast
Tires: pneumatic
Fork: 1370mm
Attachments: fork positioner,sideshift


The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.

Working efficiency improved

Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.



Ergonomic comfort

Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.



Operator's view improved

A clear view to the forks and surrounding area is optimized through the Maximal wide view mast.Excellent rearwards visibility is enhanced with the sloping rear counterweight and fenders.The dash and LED monitor panel is mounted low and in line of sight for operator convenience.



Wide-angle Rear-View Mirror

Provides more comprehensive rear viewfor enhanced safety.



Hydraulic system improved

The constant displacement pump load sensing steering system increases the lifting speed and reduces the hydraulic oil temperature.



Specification CPCD70
1 Fuel model   Diesel
2 Load capacity kg 7000
3 Load center mm 600
4 Lift height mm 3000
5 Full free lift height mm 200
6 Fork dimension mm 1220×150×65
7 Mast tilting angle Deg. 6/12
8 Min.turning radius mm 3380
9 Groud clearance mm 200
10 Overhead guard height mm 2460
11 Front overhang mm 590
12 Max travel speed km/h 29
13 Max lift speed mm/s 500
14 Max.traction power KN 53
15 Max. gradeability % 20
16 Total length with fork mm 4800
17 Total length without fork mm 3580
18 Total width mm 1995
19 Mast extended height mm 4420
20 Mast lowered height mm 2625
21 Tyres Front   8.25-15-14PR
22 Type Rear   8.25-15-14PR
23 Wheelbase mm 2250
24 Tread mm 1470/1700
25 Service weight Kg 9350
26 Battery V/Ah (12/80)x2
27 Engine model   XICHAI 4DF3
28 Engine power kw/r.p.m 85
29 Transmission   Automatic
30 Work press Mpa 20
