Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: FD80
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 8000-10000 usd
Packaging Details: Plastic bag
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
8 Ton Diesel Forklift Truc |
Lift Height: |
2 Stage 3m Lift Mast |
Fork Size: |
1520X150X70MM |
Service Weight: |
9800 Kg |
Engine: |
ISUZU 6BG1 Engine Made In Japan |
Cabin: |
Closed Cabin Heater |
Product Name: |
8 Ton Diesel Forklift Truc |
Lift Height: |
2 Stage 3m Lift Mast |
Fork Size: |
1520X150X70MM |
Service Weight: |
9800 Kg |
Engine: |
ISUZU 6BG1 Engine Made In Japan |
Cabin: |
Closed Cabin Heater |

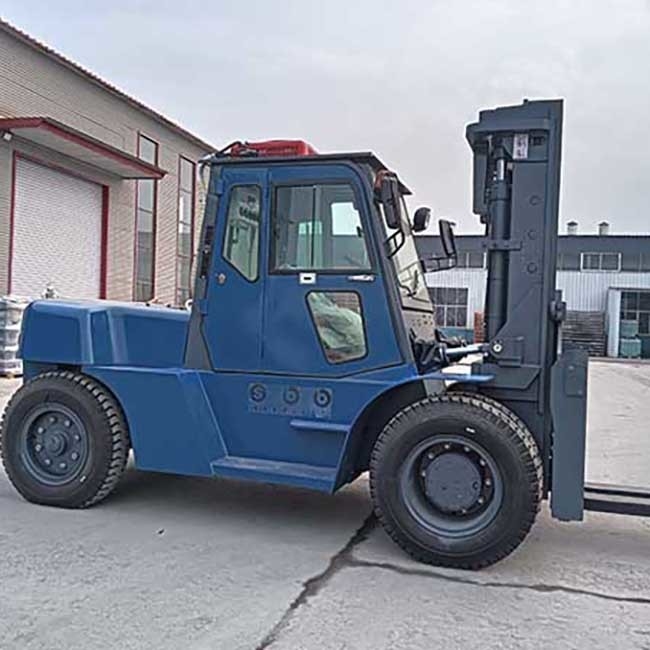

8000kgs FD80 8 ton diesel lift truck Japanese engine closed cabin heater
Main information:
Engine: ISUZU 6BG1 diesel engine
Transmission: Automatic
Mast type: Duplex 4m mast wide view
Tires: pneumatic
Fork: 1520mm
Attachments: sideshift
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Working efficiency improved
Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.
Ergonomic comfort
Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.
Operator's view improved
A clear view to the forks and surrounding area is optimized through the Maximal wide view mast.Excellent rearwards visibility is enhanced with the sloping rear counterweight and fenders.The dash and LED monitor panel is mounted low and in line of sight for operator convenience.
Clear, Concise & Modern Design
Yeawey forklift design has adopted the streamline design of the Maximal A Series forklifts.The appearance is clear and concise with a very modern forklift design.
Hydraulic system improved
The constant displacement pump load sensing steering system increases the lifting speed and reduces the hydraulic oil temperature.
Full Hydraulic Steering System
Offer lighter, more flexible steering, with reduced turning radius and handles driving large vehicle like a small vehicle.
| Specification | CPCD80 | ||
| 1 | Fuel model | Diesel | |
| 2 | Load capacity | kg | 8000 |
| 3 | Load center | mm | 600 |
| 4 | Lift height | mm | 4000 |
| 5 | Full free lift height | mm | 200 |
| 6 | Fork dimension | mm | 1520×150×65 |
| 7 | Mast tilting angle | Deg. | 6/12 |
| 8 | Min.turning radius | mm | 3580 |
| 9 | Groud clearance | mm | 200 |
| 10 | Overhead guard height | mm | 2460 |
| 11 | Front overhang | mm | 590 |
| 12 | Max travel speed | km/h | 29 |
| 13 | Max lift speed | mm/s | 500 |
| 14 | Max.traction power | KN | 53 |
| 15 | Max. gradeability | % | 20 |
| 16 | Total length with fork | mm | 5000 |
| 17 | Total length without fork | mm | 3780 |
| 18 | Total width | mm | 1995 |
| 19 | Mast extended height | mm | 4420 |
| 20 | Mast lowered height | mm | 2625 |
| 21 | Tyres Front | 8.25-15-14PR | |
| 22 | Type Rear | 8.25-15-14PR | |
| 23 | Wheelbase | mm | 2450 |
| 24 | Tread | mm | 1470/1700 |
| 25 | Service weight | Kg | 9880 |
| 26 | Battery | V/Ah | (12/80)x2 |
| 27 | Engine model | ISUZU 6BG1 diesel engine | |
| 28 | Engine power | kw/r.p.m | 82.4 |
| 29 | Transmission | Automatic | |
| 30 | Work press | Mpa | 20 |
