Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CPCD50
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 8000-10000 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
5 Ton Diesel Powered Forklift |
Load Capacity: |
5.0 T |
Lift Height: |
4.5m Container Mast |
Fork Size: |
1520X150X55MM |
Service Weight: |
7200 Kg |
Cabin: |
Open Standard |
Engine: |
Chinese Quanchan Diesel Engine |
Power: |
61 Kw |
Product Name: |
5 Ton Diesel Powered Forklift |
Load Capacity: |
5.0 T |
Lift Height: |
4.5m Container Mast |
Fork Size: |
1520X150X55MM |
Service Weight: |
7200 Kg |
Cabin: |
Open Standard |
Engine: |
Chinese Quanchan Diesel Engine |
Power: |
61 Kw |

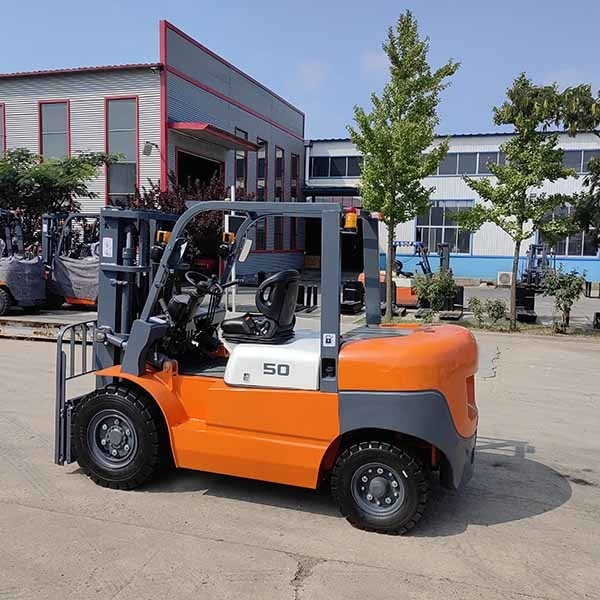

5000kgs capacity standard 5 Ton diesel forklift truct Chinese Quanchai diesel engine
Main information:
Product name: 5 Ton diesel powered forklift standard type
Engine: Xinchai Quanhai diesel engine,61 kw
Transmission: Automatic
Mast type: 3 stage mast 4,.m container type
Tires: pneumatic
Fork: 1520mm
Attachments: Sideshift
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Working efficiency improved
Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.
Ergonomic comfort
Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.
Increased hood opening angle
Increases opening angle to 80° to facilitate maintenance.
Opening engine hood is easy with a revised, simple pull lever.
Workspace increased
Space around foot is effectively increased through up steering unit and using suspension type inching.
The operation space is enlarged by heightened overhead guard and using large arc shape of the overhead guard's front leg.
Delivery time:
As a factory, we can offer fast products delivery, standard forklift is 7 working days, Forklift with options is 10-20 working days.
| Specification | CPCD50 | ||
| 1 | Fuel model | Diesel | |
| 2 | Load capacity | kg | 5000 |
| 3 | Load center | mm | 500 |
| 4 | Lift height | mm | 4500 |
| 5 | Full free lift height | mm | 1500 |
| 6 | Fork dimension | mm | 1520×150×50 |
| 7 | Mast tilting angle | Deg. | 6/6 |
| 8 | Min.turning radius | mm | 3050 |
| 9 | Groud clearance | mm | 140 |
| 10 | Overhead guard height | mm | 2290 |
| 11 | Front overhang | mm | 570 |
| 12 | Max travel speed | km/h | 25 |
| 13 | Max lift speed | mm/s | 430 |
| 14 | Max.traction power | KN | 23 |
| 15 | Max. gradeability | % | 18 |
| 16 | Total length with fork | mm | 4520 |
| 17 | Total length without fork | mm | 3300 |
| 18 | Total width | mm | 1480 |
| 19 | Mast extended height | mm | 5900 |
| 20 | Mast lowered height | mm | 2200 |
| 21 | Tyres Front | 300-15-20PR | |
| 22 | Type Rear | 700-12-12PR | |
| 23 | Wheelbase | mm | 2200 |
| 24 | Tread | mm | 1180/1190 |
| 25 | Service weight | Kg | 7200 |
| 26 | Battery | V/Ah | (12/80)x2 |
| 27 | Engine model | Quanchai diesel engine | |
| 28 | Engine power | kw/r.p.m | 61 |
| 29 | Transmission | Automatic | |
| 30 | Work press | Mpa | 18.5 |
