Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CPCD50
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 9000-11500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
5 Ton Diesel Powered Forklift Economic Type |
Load Capacity: |
5.0T |
Lift Height: |
4500m Mast Container Use |
Fork Size: |
1370X150X50MM |
Service Weight: |
5900 |
Engine: |
Xinchai A498BPB Diesel Engine |
Power: |
45 Kw |
Product Name: |
5 Ton Diesel Powered Forklift Economic Type |
Load Capacity: |
5.0T |
Lift Height: |
4500m Mast Container Use |
Fork Size: |
1370X150X50MM |
Service Weight: |
5900 |
Engine: |
Xinchai A498BPB Diesel Engine |
Power: |
45 Kw |

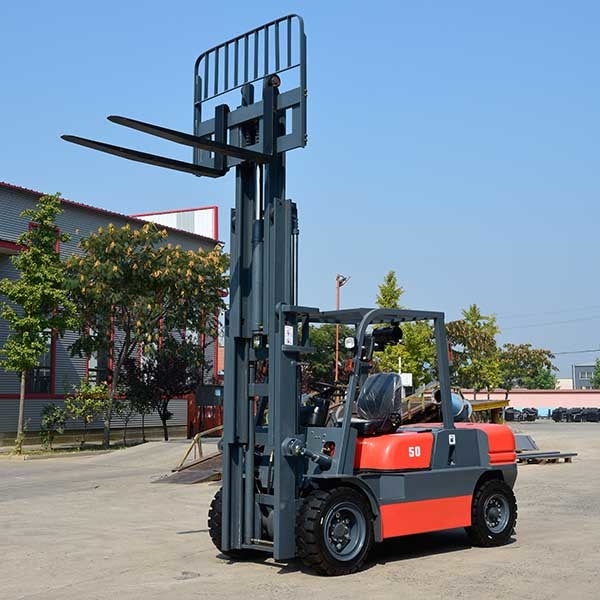

5000kg CPCD50 5 ton diesel lift truck Chinese diesel engine 4.5m container mast
Main information:
Product name: 5 Ton diesel powered forklift
Engine: Xinchai A498BT1 diesel engine
Euro III standard
Transmission: Automatic
Mast type: Triplex mast 4.5m contrainer type
Tires: pneumatic
Fork: 1820mm
Attachments: Side shift
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Working efficiency improved
Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.
Ergonomic comfort
Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.
Large Opening Angle
Enlarged internal space is convenient for engine and transmission box maintenance.
Increased hood opening angle makes maintenance convenient.
High Quality & Durable tires
Yeawey forklift front tires are a special heavy truck tire with a wide footprint giving it greater stability and lift capacity in rough work environments.
Gravity&capacity improved
The repositioning of whole truck's gravity center improve load.ing capacity, stability and safety.
| Specification | CPCD50 | ||
| 1 | Fuel model | Diesel | |
| 2 | Load capacity | kg | 5000 |
| 3 | Load center | mm | 500 |
| 4 | Lift height | mm | 4500 |
| 5 | Full free lift height | mm | 1500 |
| 6 | Fork dimension | mm | 1370×150×50 |
| 7 | Mast tilting angle | Deg. | 6/6 |
| 8 | Min.turning radius | mm | 3150 |
| 9 | Groud clearance | mm | 140 |
| 10 | Overhead guard height | mm | 2180 |
| 11 | Front overhang | mm | 550 |
| 12 | Max travel speed | km/h | 21 |
| 13 | Max lift speed | mm/s | 360 |
| 14 | Max.traction power | KN | 18 |
| 15 | Max. gradeability | % | 20 |
| 16 | Total length with fork | mm | 4520 |
| 17 | Total length without fork | mm | 3300 |
| 18 | Total width | mm | 1400 |
| 19 | Mast extended height | mm | 5720 |
| 20 | Mast lowered height | mm | 2210 |
| 21 | Tyres Front | 250-15-12PR | |
| 22 | Type Rear | 700-12-12PR | |
| 23 | Wheelbase | mm | 2250 |
| 24 | Tread | mm | 1130/1100 |
| 25 | Service weight | Kg | 5900 |
| 26 | Battery | V/Ah | 12/80 |
| 27 | Engine model | XINCHAI A498BT1 | |
| 28 | Engine power | kw/r.p.m | 36.8 |
| 29 | Transmission | Automatic | |
| 30 | Work press | Mpa | 20 |
