Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CPCD60
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 8000-10000 usd
Packaging Details: Plastic bag
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
6 Ton Diesel Powered Forklift Heavy Duty |
Load Capacity: |
6000 Kg |
Lift Height: |
3m Mast |
Mast Type: |
Duplex FFL Mast |
Width: |
2235mm |
Fork Size: |
1370X150X60MM |
Service Weight: |
7980 Kg |
Color: |
Red And Grey |
Engine: |
Chinese Xichai 4DF3 |
Product Name: |
6 Ton Diesel Powered Forklift Heavy Duty |
Load Capacity: |
6000 Kg |
Lift Height: |
3m Mast |
Mast Type: |
Duplex FFL Mast |
Width: |
2235mm |
Fork Size: |
1370X150X60MM |
Service Weight: |
7980 Kg |
Color: |
Red And Grey |
Engine: |
Chinese Xichai 4DF3 |

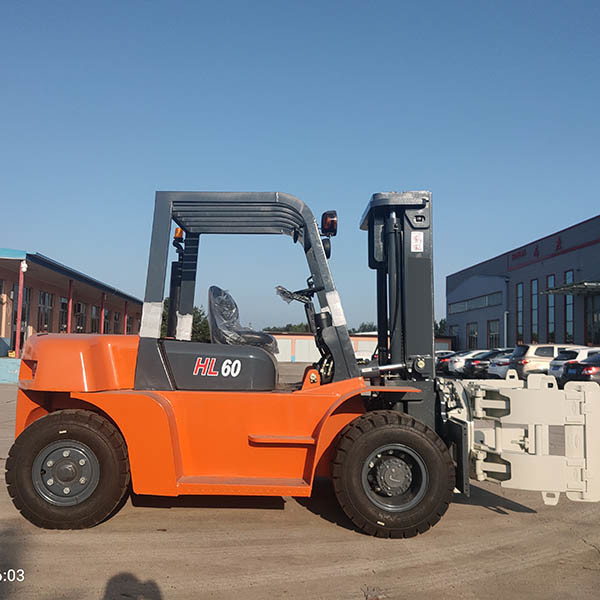

Heavy duty CPCD60 6 ton diesel forklift Chinese XICHAI engine paper roll clamp
Main information:
Product name: 6 Ton diesel powered forklift heavy duty
Engine: Xichai 4DF3 engine,85 kw
Transmission: Automatic
Mast type: Duplex mast 3.0m lifting height
Tires: pneumatic
Fork: 1370mm
Attachments: fork positioner,sideshift
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Working efficiency improved
Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.
Ergonomic comfort
Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.
Increased hood opening angle
Increases opening angle to 80° to facilitate maintenance.
Opening engine hood is easy with a revised, simple pull lever.
Clear, Concise & Modern Design
Yeawey forklift design has adopted the streamline design of the Maximal A Series forklifts.The appearance is clear and concise with a very modern forklift design.
Gravity&capacity improved
The repositioning of whole truck's gravity center improve load.ing capacity, stability and safety.
| Specification | CPCD60 | ||
| 1 | Fuel model | Diesel | |
| 2 | Load capacity | kg | 6000 |
| 3 | Load center | mm | 600 |
| 4 | Lift height | mm | 3000 |
| 5 | Full free lift height | mm | 200 |
| 6 | Fork dimension | mm | 1220×150×60 |
| 7 | Mast tilting angle | Deg. | 6/12 |
| 8 | Min.turning radius | mm | 3320 |
| 9 | Groud clearance | mm | 200 |
| 10 | Overhead guard height | mm | 2460 |
| 11 | Front overhang | mm | 615 |
| 12 | Max travel speed | km/h | 26 |
| 13 | Max lift speed | mm/s | 400 |
| 14 | Max.traction power | KN | 51.4 |
| 15 | Max. gradeability | % | 20 |
| 16 | Total length with fork | mm | 4770 |
| 17 | Total length without fork | mm | 3550 |
| 18 | Total width | mm | 1995 |
| 19 | Mast extended height | mm | 4380 |
| 20 | Mast lowered height | mm | 2500 |
| 21 | Tyres Front | 8.25-15-14PR | |
| 22 | Type Rear | 8.25-15-14PR | |
| 23 | Wheelbase | mm | 2250 |
| 24 | Tread | mm | 1470/1700 |
| 25 | Service weight | Kg | 8640 |
| 26 | Battery | V/Ah | (12/80)x2 |
| 27 | Engine model | XICHAI 4DF3 | |
| 28 | Engine power | kw/r.p.m | 85 |
| 29 | Transmission | Automatic | |
| 30 | Work press | Mpa | 20 |
